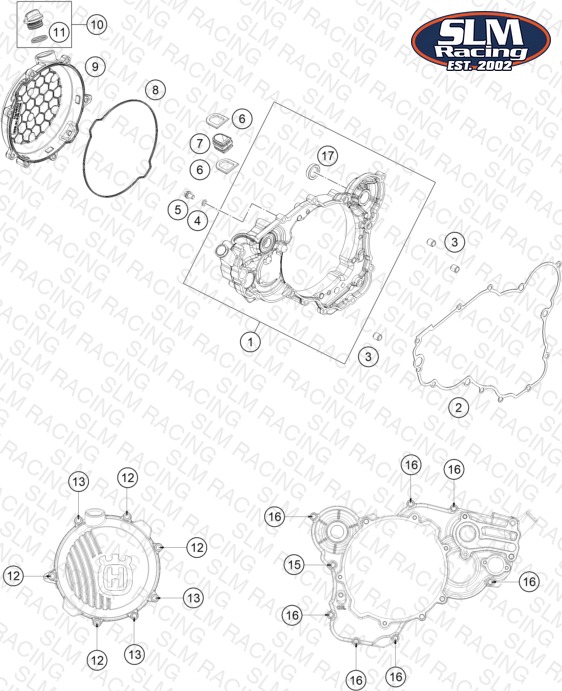

CLUTCH COVER
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 55530001044 Intermediate clutch cover cpl. | Intermediate clutch cover cpl. | 1 | — | Check availability | |
| 2 | 55430025000 CLUTCH COVER GASKET INSIDE | CLUTCH COVER GASKET INSIDE | 1 | — | Check availability | View Details |
| 3 | 49030090100 DOWEL 9,8 X7X10 | DOWEL 9,8 X7X10 | 3 | — | Check availability | |
| 4 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | — | Check availability | |
| 5 | 0025060106 HH collar screw M6x10 TX30 | HH collar screw M6x10 TX30 | 1 | — | Check availability | |
| 6 | 54637107000 SEALING ELEMENT BOTTOM | SEALING ELEMENT BOTTOM | 2 | — | Check availability | |
| 7 | 54837091100 SEALING CARRIER 07 | SEALING CARRIER 07 | 1 | — | Check availability | |
| 8 | 55430027000 CLUTCH COVER GASKET OUTSIDE | CLUTCH COVER GASKET OUTSIDE | 1 | — | Check availability | |
| 9 | 55530626000JA Outer clutch cover | Outer clutch cover | 1 | — | Check availability | |
| 10 | 79430020033 Oil filler cap cmpl. M24x3 | Oil filler cap cmpl. M24x3 | 1 | — | Check availability | |
| 11 | 0770191015 O-RING 19,00X3,00 NBR | O-RING 19,00X3,00 NBR | 1 | — | Check availability | |
| 12 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 4 | — | Check availability | |
| 13 | 0025060606 HH collar screw M6x60 TX30 | HH collar screw M6x60 TX30 | 3 | — | Check availability | |
| 15 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 1 | — | Check availability | |
| 16 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 7 | — | Check availability | |
| 17 | 0760193070 SHAFT SEAL RING 19X30X7 B | SHAFT SEAL RING 19X30X7 B | 1 | — | Check availability |
