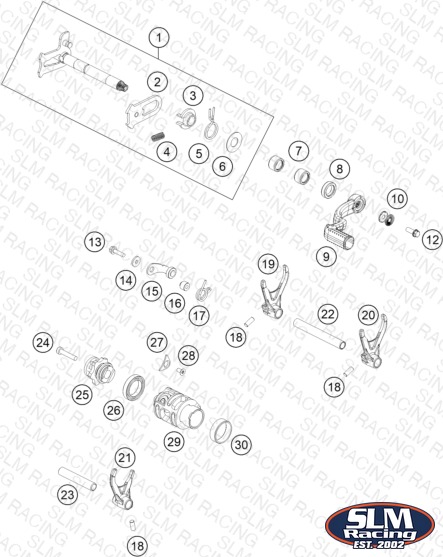

SHIFTING MECHANISM
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 3 | 54634020000 SPRING GUIDE | SPRING GUIDE | 1 | $7.58 | Available | 1 |
| 4 | 56534013100 TENSIONING SPRING 0,8MM | TENSIONING SPRING 0,8MM | 1 | $1.99 | Available | 1 |
| 5 | 54834014000 RETURN SPRING 03 | RETURN SPRING 03 | 1 | $4.99 | Available | 1 |
| 6 | 54634050000 STOP DISK 14X30X1 | STOP DISK 14X30X1 | 1 | $2.99 | Available | 1 |
| 7 | 54632095000 needle sleeve HK 1412 14x20x12 | needle sleeve HK 1412 14x20x12 | 2 | $8.24 | Available | 2 |
| 8 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | $10.88 | Available | 1 |
| 9 | 55434031000 SHIFTING LEVER CPL. | SHIFTING LEVER CPL. | 1 | $126.49 | Available | 1 |
| 10 | 50233041500 PAIR NORDLOCK WASHER M6 | PAIR NORDLOCK WASHER M6 | 1 | $4.99 | Available | 1 |
| 12 | 0024060156S HH collar screw M6x15 TX30 | HH collar screw M6x15 TX30 | 1 | $2.99 | Available | 1 |
| 13 | 0025050206 HH collar screw M5x20 TX30 | HH collar screw M5x20 TX30 | 1 | $2.99 | Available | 1 |
| 14 | 0349000050 WASHER DIN7349-5X15X2 | WASHER DIN7349-5X15X2 | 1 | $1.99 | Available | 1 |
| 15 | 55434024000 LOCKING LEVER CPL. | LOCKING LEVER CPL. | 1 | $47.84 | Available | 1 |
| 16 | 54634052300 SLEEVE FOR LOCKING LEVER | SLEEVE FOR LOCKING LEVER | 1 | $3.99 | Available | 1 |
| 17 | 55434023100 LOCKING LEVER SPRING | LOCKING LEVER SPRING | 1 | $2.99 | Available | 1 |
| 18 | 0402061480 NEEDLE ROLLER DIN5402 6X14,8 | NEEDLE ROLLER DIN5402 6X14,8 | 3 | $4.99 | Available | 3 |
| 19 | 79234003000 SHIFTING FORK 1ST/3RD GEAR | SHIFTING FORK 1ST/3RD GEAR | 1 | $91.51 | Available | 1 |
| 20 | 79234002000 SHIFTING FORK 2ND GEAR | SHIFTING FORK 2ND GEAR | 1 | $91.51 | Available | 1 |
| 21 | 79234001000 SHIFTING FORK 4TH/5TH GEAR | SHIFTING FORK 4TH/5TH GEAR | 1 | $91.40 | Available | 1 |
| 22 | 77034019000 SHIFTING MAIN L=93MM 05 | SHIFTING MAIN L=93MM 05 | 1 | $16.49 | Available | 1 |
| 23 | 54834019000 SHIFT. RAIL MAIN SHAFT 250/300 | SHIFT. RAIL MAIN SHAFT 250/300 | 1 | $15.06 | Available | 1 |
| 24 | 0984060302 AH SCREW DIN6912 M 6X30 | AH SCREW DIN6912 M 6X30 | 1 | $1.99 | Available | 1 |
| 25 | 55434015000 GEARSHIFT CPL. | GEARSHIFT CPL. | 1 | $39.48 | Available | 1 |
| 26 | 0625618050 BALL BEARING 61805 C3 | BALL BEARING 61805 C3 | 1 | $51.69 | Available | 1 |
| 27 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 1 | $1.99 | Available | 1 |
| 28 | 0019050106S hex lobe countersunc screw M5x | hex lobe countersunc screw M5x | 1 | $2.99 | Available | 1 |
| 29 | 79234012000 SHIFT ROLLER 5G | SHIFT ROLLER 5G | 1 | $90.63 | Available | 1 |
| 30 | 79234012010 FRICTION BEARING CONTROLLER | FRICTION BEARING CONTROLLER | 1 | $27.05 | Available | 1 |
| 1 | 55434005133 SHIFT SHAFT CPL. | SHIFT SHAFT CPL. | 1 | $82.71 | Available | 1 |
| 2 | 79234008144 SLIDING PLATE CPL. | SLIDING PLATE CPL. | 1 | $41.79 | Available | 1 |
