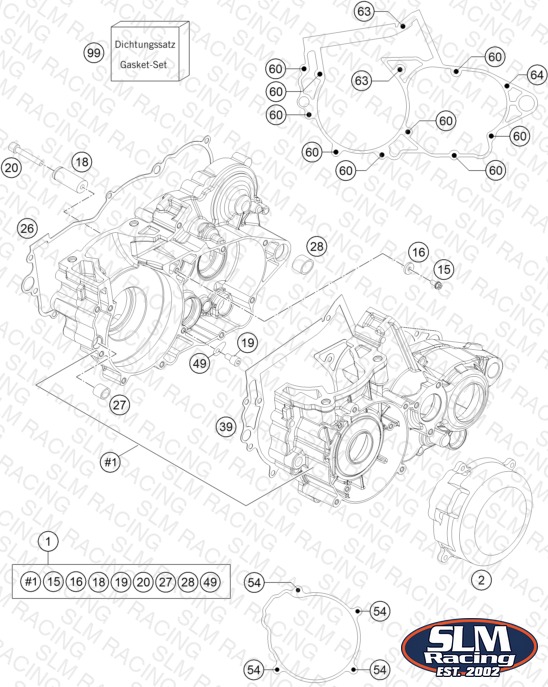

ENGINE CASE
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54830000244 ENGINE CASE CPL.W. BEARING 13 | ENGINE CASE CPL.W. BEARING 13 | 1 | — | Check availability | |
| 2 | 54830002500 IGNITION COVER | IGNITION COVER | 1 | — | Check availability | |
| 15 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 1 | — | Check availability | |
| 16 | 50232050001 STEEL WASHER 6,4X17X3 | STEEL WASHER 6,4X17X3 | 1 | — | Check availability | |
| 18 | 59033018000 BUSHING PIN 2000 | BUSHING PIN 2000 | 1 | — | Check availability | |
| 19 | 0912060123 AH SCREW DIN0912-M 6X12 | AH SCREW DIN0912-M 6X12 | 1 | — | Check availability | View Details |
| 20 | 0912060404 AH SCREW DIN0912-M 6X40 A2 | AH SCREW DIN0912-M 6X40 A2 | 1 | — | Check availability | |
| 26 | 54830024100 CLUTCH COVER GASKET INSIDE | CLUTCH COVER GASKET INSIDE | 1 | — | Check availability | |
| 27 | 54630027000 DOWEL BUSHING 13,8X11X12 | DOWEL BUSHING 13,8X11X12 | 1 | — | Check availability | |
| 28 | 54830027000 DOWEL 21X12 03 | DOWEL 21X12 03 | 1 | — | Check availability | View Details |
| 39 | 54830039000 ENGINE CASE GASKET 2003 | ENGINE CASE GASKET 2003 | 1 | — | Check availability | |
| 49 | 54634049000 RETAINING PLATE | RETAINING PLATE | 1 | — | Check availability | |
| 54 | 0025050166 HH collar screw M5x16 TX30 | HH collar screw M5x16 TX30 | 4 | — | Check availability | |
| 60 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 9 | — | Check availability | |
| 63 | 0025060556 HH collar screw M6x55 TX30 | HH collar screw M6x55 TX30 | 2 | — | Check availability | |
| 64 | 0025060606 HH collar screw M6x60 TX30 | HH collar screw M6x60 TX30 | 1 | — | Check availability | |
| 99 | 54830099100 GASKET SET 250 07 | GASKET SET 250 07 | 1 | — | Check availability |
