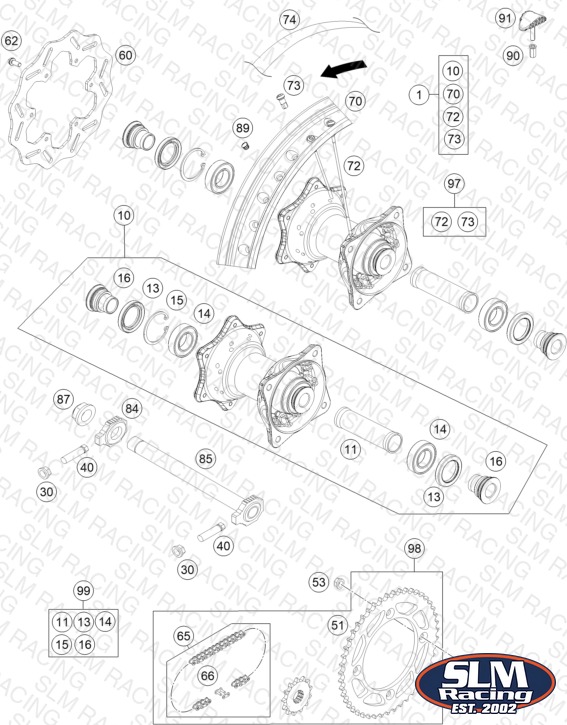

REAR WHEEL
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 2361010104430 Rear wheel cmpl. 1,85x16" TC85 | Rear wheel cmpl. 1,85x16" TC85 | 1 | $894.29 | Available | 1 |
| 10 | 70110010044 Rear wheel hub cmpl. | Rear wheel hub cmpl. | 1 | $324.93 | Available | 1 |
| 11 | 70010011000 BEAR.SPACER TUBE ´12 | BEAR.SPACER TUBE ´12 | 1 | $30.79 | Available | 1 |
| 13 | 0760324771 Radial shaft seal 32X47X7 BSL | Radial shaft seal 32X47X7 BSL | 2 | $15.72 | Available | 2 |
| 14 | 0625060058 Grooved ball bear.6005 DDU2CG2 | Grooved ball bear.6005 DDU2CG2 | 2 | $21.55 | Available | 2 |
| 15 | 0472047175 CIRCLIP DIN0472-47X1,75 | CIRCLIP DIN0472-47X1,75 | 1 | $3.99 | Available | 1 |
| 16 | 78010016000 BUSHING FOR HUB 08 | BUSHING FOR HUB 08 | 2 | $38.71 | Available | 2 |
| 30 | 46030045000 flanged nut M8 WS10 | flanged nut M8 WS10 | 2 | $9.23 | Available | 2 |
| 40 | 50203030090 HH SCREW M8X40 WS=10 | HH SCREW M8X40 WS=10 | 2 | $4.99 | Available | 2 |
| 51 | 47210051044 Sprocket 44-t | Sprocket 44-t | — | $79.99 | Available | 1 |
| 51 | 47210051045 Sprocket 45-t | Sprocket 45-t | — | $79.99 | Available | 1 |
| 51 | 47210051046 Sprocket 46-t | Sprocket 46-t | — | $79.99 | Available | 1 |
| 51 | 47210051047 Sprocket 47-t | Sprocket 47-t | — | $79.99 | Available | 1 |
| 51 | 47210051048 Sprocket 48-t | Sprocket 48-t | — | $79.99 | Available | 1 |
| 51 | 47210051049 Sprocket 49-t | Sprocket 49-t | 1 | $79.99 | Available | 1 |
| 51 | 47210051050 Sprocket 50-t | Sprocket 50-t | — | $79.99 | Available | 1 |
| 51 | 47210051051 Sprocket 51-t | Sprocket 51-t | — | $79.99 | Available | 1 |
| 52 | 0019080266S COUNTER-SUNK SCREW ISA45 M8X26 | COUNTER-SUNK SCREW ISA45 M8X26 | 4 | $3.99 | Available | 4 |
| 53 | 06923080003 Hex. nut DIN EN 1661 M8 WS13 | Hex. nut DIN EN 1661 M8 WS13 | 4 | $2.99 | Available | 4 |
| 60 | 25010060000 BRAKE DISC REAR D=220MM | BRAKE DISC REAR D=220MM | 1 | $190.18 | Available | 1 |
| 62 | 59009062016 SPECIAL SCREW M6X16 WS=8 10.9 | SPECIAL SCREW M6X16 WS=8 10.9 | 6 | $2.99 | Available | 6 |
| 65 | 47010165124 CHAIN 124 ROLLS 85 SX | CHAIN 124 ROLLS 85 SX | 1 | $113.07 | Available | 1 |
| 66 | 47010166000 CONNECTING LINK 85 SX | CONNECTING LINK 85 SX | 1 | $8.24 | Available | 1 |
| 70 | 2351007050030 Rear Rim 16x1.85 | Rear Rim 16x1.85 | 1 | $267.07 | Available | 1 |
| 72 | 47110071168 SPOKE M4,5X168-16'' | SPOKE M4,5X168-16'' | 32 | $4.99 | Available | 32 |
| 73 | 77109072000 Spoke nipple M4.5 AL | Spoke nipple M4.5 AL | 32 | $3.99 | Available | 32 |
| 74 | 47010073200 Tube protector 85 SX 16" | Tube protector 85 SX 16" | 1 | $8.68 | Available | 1 |
| 84 | 70010084000 Chain tensioner right 12 | Chain tensioner right 12 | 1 | $18.91 | Available | 1 |
| 85 | 70010085044 WHEEL SPINDLE REAR CPL. 12 | WHEEL SPINDLE REAR CPL. 12 | 1 | $88.43 | Available | 1 |
| 87 | 50310099000 Hexagon nut M20x1.5 | Hexagon nut M20x1.5 | 1 | $13.30 | Available | 1 |
| 89 | 55003135000 PLUG FOR RIM | PLUG FOR RIM | — | $2.99 | Available | 1 |
| 90 | 77110090050 NUT FOR WHEEL HOLDER | NUT FOR WHEEL HOLDER | 1 | $6.15 | Available | 1 |
| 91 | 70010090100 RIM LOCK 1,85'' | RIM LOCK 1,85'' | 1 | $24.74 | Obsolete | View Details |
| 97 | 00050000980 SPOKE KIT REAR 85 TC 16 | SPOKE KIT REAR 85 TC 16 | — | $210.31 | Available | 1 |
| 98 | 00050002092 Drivetrain kit 13t/49t | Drivetrain kit 13t/49t | — | $214.60 | Available | 1 |
| 99 | 70010015000 REAR WHEEL REP. KIT | REAR WHEEL REP. KIT | — | $85.02 | Available | 1 |
