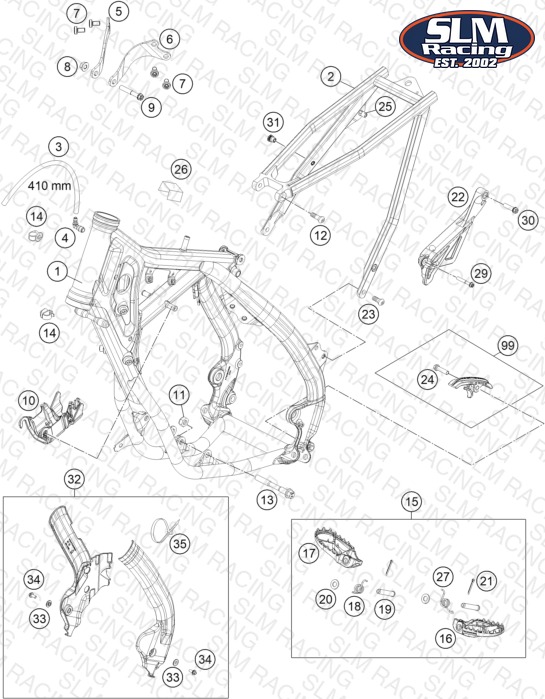

FRAME
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 4720300120069 Frame 472T3 | Frame 472T3 | 1 | $2085.59 | Out of Stock | Notify Me |
| 2 | 47203002000 Subframe | Subframe | 1 | $312.06 | Available | 1 |
| 3 | 50335030001 PVC-HOSE 6X9 | PVC-HOSE 6X9 | 1 | $7.91 | Available | 1 |
| 4 | 51030022000 ANGLE PIECE 90 DEGREE M10X1 | ANGLE PIECE 90 DEGREE M10X1 | 1 | $6.15 | Available | 1 |
| 5 | 47203014000 MOTORSTREBE RECHTS | MOTORSTREBE RECHTS | 1 | $19.57 | Available | 1 |
| 6 | 47203013000 Motorbracket left | Motorbracket left | 1 | $39.81 | Available | 1 |
| 7 | 0035080156S AH-COLLAR SCREW M8X15 TORX45 | AH-COLLAR SCREW M8X15 TORX45 | 4 | $2.99 | Available | 4 |
| 8 | 54310086200 Self locking nut M8 10.9 | Self locking nut M8 10.9 | 1 | $3.99 | Available | 1 |
| 9 | 0025080506 HH collar screw M8x50 TX40 | HH collar screw M8x50 TX40 | 1 | $3.62 | Available | 1 |
| 10 | 47211095000 Cable compartment | Cable compartment | 1 | $16.05 | Available | 1 |
| 11 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | $2.99 | Available | 2 |
| 12 | 0019080206S FLAT HEAD SCREW M. ISA45 M8X20 | FLAT HEAD SCREW M. ISA45 M8X20 | 2 | $2.99 | Available | 2 |
| 13 | 47003013000 ENGINE BRACKET SCREW 85 SX | ENGINE BRACKET SCREW 85 SX | 2 | $9.89 | Available | 2 |
| 14 | 57013072100 WIRING HOLDER 16MM | WIRING HOLDER 16MM | 2 | $1.99 | Available | 2 |
| 15 | 79003040033 FOOT PEGS SET CPL. 2016 | FOOT PEGS SET CPL. 2016 | 1 | $119.01 | Available | 1 |
| 16 | 79003040000 FOOTREST L/S 2016 | FOOTREST L/S 2016 | 1 | $48.83 | Available | 1 |
| 17 | 79003041000 FOOTREST R/S 2016 | FOOTREST R/S 2016 | 1 | $48.83 | Available | 1 |
| 18 | 79003044000 FOOTREST SPRING R/S 2016 | FOOTREST SPRING R/S 2016 | 1 | $2.99 | Available | 1 |
| 19 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | $14.62 | Available | 2 |
| 20 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 21 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | $1.99 | Available | 2 |
| 22 | 47203096000 Sprocket cover 85 | Sprocket cover 85 | 1 | $31.89 | Available | 1 |
| 23 | 79003003000 Special screw M8X18 TORX45 SL | Special screw M8X18 TORX45 SL | 2 | $3.99 | Available | 2 |
| 24 | 0025080306 HH collar screw M8x30 | HH collar screw M8x30 | 1 | $3.62 | Available | 1 |
| 25 | 77303139000 BLIND RIVET NUT EM6-60LF/HX | BLIND RIVET NUT EM6-60LF/HX | 2 | $4.99 | Available | 2 |
| 26 | 50307012000 ADH. FOIL TRANSP. 80X80 MM 04 | ADH. FOIL TRANSP. 80X80 MM 04 | 1 | $2.99 | Available | 1 |
| 27 | 79003045000 FOOTREST SPRING L/S 2016 | FOOTREST SPRING L/S 2016 | 1 | $2.99 | Available | 1 |
| 29 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 1 | $3.99 | Available | 1 |
| 30 | 0025080256 HH collar screw M8x25 | HH collar screw M8x25 | 1 | $2.41 | Available | 1 |
| 31 | 79003002080 BLIND RIVET NUT M6 KNURLED | BLIND RIVET NUT M6 KNURLED | 2 | $3.99 | Available | 2 |
| 32 | 47203094000HA Frame protection set 85SX 2021 | Frame protection set 85SX 2021 | 1 | $27.60 | Available | 1 |
| 33 | 54803092060 Bush f. frame protection 03 | Bush f. frame protection 03 | 2 | $4.99 | Available | 2 |
| 34 | 0014050123 HH COLLAR SCREW M 5X12 WS=6 | HH COLLAR SCREW M 5X12 WS=6 | 2 | $2.99 | Available | 2 |
| 35 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | 3 | $2.99 | Available | 3 |
| 99 | 79003053010 CHAIN SLIDING KIT BELOW CPL.16 | CHAIN SLIDING KIT BELOW CPL.16 | 1 | $21.00 | Available | 1 |
