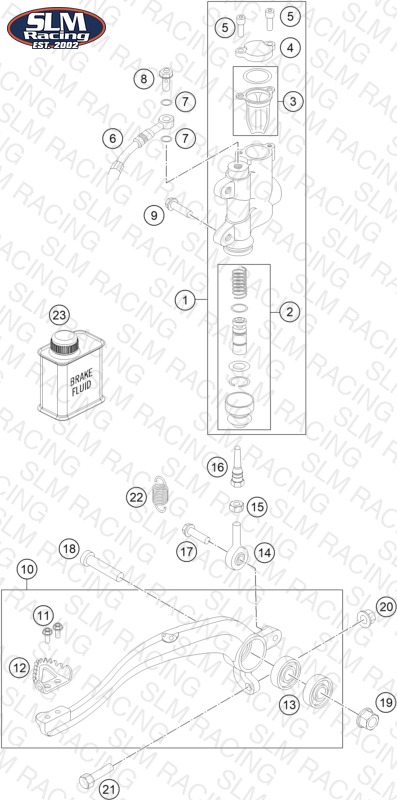

REAR BRAKE CONTROL
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 3 | 47013063000 GASKET CYLINDER COVER REAR 03 | GASKET CYLINDER COVER REAR 03 | 1 | $12.64 | Available | 1 |
| 4 | 47013062000 CYLINDER COVER REAR 85 SX 03 | CYLINDER COVER REAR 85 SX 03 | 1 | $10.44 | Available | 1 |
| 5 | 0912040103 AH.SCREW DIN0912-M 4X10 | AH.SCREW DIN0912-M 4X10 | 2 | $2.99 | Available | 2 |
| 6 | 47013070000 BRAKE HOSE REAR 85 SX 03 | BRAKE HOSE REAR 85 SX 03 | 1 | $108.56 | Available | 1 |
| 7 | 0770080019 O-RING 8,00X1,00 FORMULA | O-RING 8,00X1,00 FORMULA | 2 | $2.99 | Available | 2 |
| 8 | 47013025000 Hollow screw, brake cylinder 0 | Hollow screw, brake cylinder 0 | 1 | $12.75 | Available | 1 |
| 9 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 2 | $3.99 | Available | 2 |
| 10 | 47013050044 FOOT BRAKE LEVER CPL. 85 SX 03 | FOOT BRAKE LEVER CPL. 85 SX 03 | 1 | $141.56 | Available | 1 |
| 11 | 0025050126 HH collar screw M5x12 TX30 | HH collar screw M5x12 TX30 | 2 | $3.99 | Available | 2 |
| 12 | 54813051000 STEP PLATE FOR BRAKE LEVER | STEP PLATE FOR BRAKE LEVER | 1 | $12.97 | Available | 1 |
| 13 | 0625060002 deep groove ball bearing SKF 6 | deep groove ball bearing SKF 6 | 2 | $14.51 | Available | 2 |
| 14 | 54813055000 SWIVEL HEAD KA6 03 | SWIVEL HEAD KA6 03 | 1 | $23.42 | Available | 1 |
| 15 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 1 | $1.99 | Available | 1 |
| 16 | 47013056100 PRESSURE ROD 85 SX 06 | PRESSURE ROD 85 SX 06 | 1 | $15.39 | Available | 1 |
| 17 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 1 | $3.99 | Available | 1 |
| 18 | 0032100406S AH-COLLAR SCREW M10X40 ISA45 | AH-COLLAR SCREW M10X40 ISA45 | 1 | $4.99 | Available | 1 |
| 19 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 1 | $1.99 | Available | 1 |
| 20 | 46030045000 flanged nut M8 WS10 | flanged nut M8 WS10 | 1 | $9.23 | Available | 1 |
| 21 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 1 | $3.99 | Available | 1 |
| 22 | 54603062000 RETURN SPRING FOR BRAKELEVER | RETURN SPRING FOR BRAKELEVER | 1 | $7.69 | Available | 1 |
| 23 | 00062030000 Brake fluid DOT5.1 0,25L | Brake fluid DOT5.1 0,25L | 1 | $13.99 | Available | 1 |
| 1 | 47013060300 FOOTBRAKECYL.R. CPL. D=12 05 | FOOTBRAKECYL.R. CPL. D=12 05 | 1 | $222.52 | Available | 1 |
| 2 | 47013061100 Rep.set piston, rear D=12 2004 | Rep.set piston, rear D=12 2004 | 1 | $88.76 | Available | 1 |
