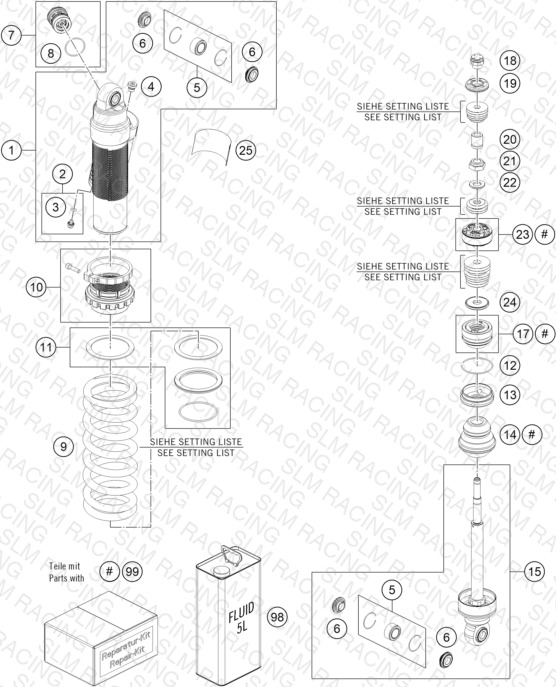

SHOCK ABSORBER DISASSEMBLED
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | S454600029S0000 shock housing cpl. | shock housing cpl. | 1 | $345.39 | Available | 1 |
| 2 | 36120151ST PLUG SCREW M5X6 CPL. | PLUG SCREW M5X6 CPL. | 1 | $4.83 | Available | 1 |
| 3 | S208600003000FB O-ring 5,28x1,78 HNBR70 red | O-ring 5,28x1,78 HNBR70 red | 1 | $0.76 | Available | 1 |
| 4 | 50180095 HS cylinder-head screw R1/8 l8 | HS cylinder-head screw R1/8 l8 | 1 | $2.85 | Available | 1 |
| 5 | RP10051T Ball bearing kit | Ball bearing kit | 2 | $23.97 | Backorder — Restocking | 2 |
| 25 | 52000230 Sticker XACT 85 SX | Sticker XACT 85 SX | 1 | $37.94 | Available | 1 |
| 7 | S012900000S1900 Compression Cpl | Compression Cpl | 1 | $110.43 | Out of Stock | Notify Me |
| 8 | 50180217 O-ring 27x1,5 Viton70 green IS | O-ring 27x1,5 Viton70 green IS | 1 | $2.41 | Available | 1 |
| 9 | 91010271S SPRING (59) 215 30 N/MM | SPRING (59) 215 30 N/MM | — | $153.99 | Available | 1 |
| 9 | 91010240S Spring (59) 215 35 N/MM D=9.25 | Spring (59) 215 35 N/MM D=9.25 | — | $153.99 | Available | 1 |
| 9 | 91010161S SPRING (59) 215 40 N/MM D=9,5 | SPRING (59) 215 40 N/MM D=9,5 | — | $153.99 | Available | 1 |
| 9 | 91010201 Mainspring (59) 45-215 damper | Mainspring (59) 45-215 damper | 1 | $153.99 | Available | 1 |
| 9 | 91010080 Mainspring (59) 50-215 damper | Mainspring (59) 50-215 damper | — | $153.99 | Available | 1 |
| 9 | 91010170S SPRING 55 N/MM | SPRING 55 N/MM | — | $153.99 | Available | 1 |
| 10 | 46181382S Plastic Spring Retainer D46 cp | Plastic Spring Retainer D46 cp | 1 | $38.27 | Available | 1 |
| 11 | RP10005T SPRING CUP SET PDS 17 | SPRING CUP SET PDS 17 | 1 | $23.97 | Available | 1 |
| 12 | S23902000000000 round-wire snap ring 49x1,75 | round-wire snap ring 49x1,75 | 1 | $28.49 | Available | 1 |
| 13 | 46181351 Cover 46,12x15 h5,5 red | Cover 46,12x15 h5,5 red | 1 | $32.55 | Available | 1 |
| 14 | 46181237 Rubber pad 17x48x55 | Rubber pad 17x48x55 | 1 | $22.76 | Available | 1 |
| 15 | S421800024S0000 bottom part M18x1 h54,5 cpl. | bottom part M18x1 h54,5 cpl. | 1 | $285.00 | Available | 1 |
| 17 | S614620000S0100 Seal support 46x28 cmpl. | Seal support 46x28 cmpl. | 1 | $83.81 | Backorder — Restocking | 1 |
| 18 | 46181659S Nut PDS M10x1 h17,2 WAF19 cpl. | Nut PDS M10x1 h17,2 WAF19 cpl. | 1 | $67.53 | Available | 1 |
| 19 | 46181416 Piston 15,4x35,4x6 | Piston 15,4x35,4x6 | 1 | $16.49 | Available | 1 |
| 20 | 46181561 Bushing 10x17x21 | Bushing 10x17x21 | 1 | $7.03 | Available | 1 |
| 21 | 46810474 Piston rod nut M12x1 | Piston rod nut M12x1 | 1 | $6.15 | Available | 1 |
| 22 | 46140031 Washer 12x24x4.5 | Washer 12x24x4.5 | 1 | $6.81 | Available | 1 |
| 23 | S624600004S0000 piston 12x45,4x18 complete | piston 12x45,4x18 complete | 1 | $35.30 | Available | 1 |
| 24 | S25120000700000 Rebound disc 12x36x9,8 h5,8 | Rebound disc 12x36x9,8 h5,8 | 1 | $33.54 | Available | 1 |
| 98 | 50180751S1 SHOCK ABSORBER FLUID 5 LT | SHOCK ABSORBER FLUID 5 LT | 1 | $175.99 | Available | 1 |
| 99 | RP10064T Repair kit suspension PDS 19 | Repair kit suspension PDS 19 | — | $118.24 | Available | 1 |
| 6 | 46181193 Pivotseal d.12X25,1 PDS | Pivotseal d.12X25,1 PDS | 4 | $5.79 | Backorder — Restocking | 4 |
