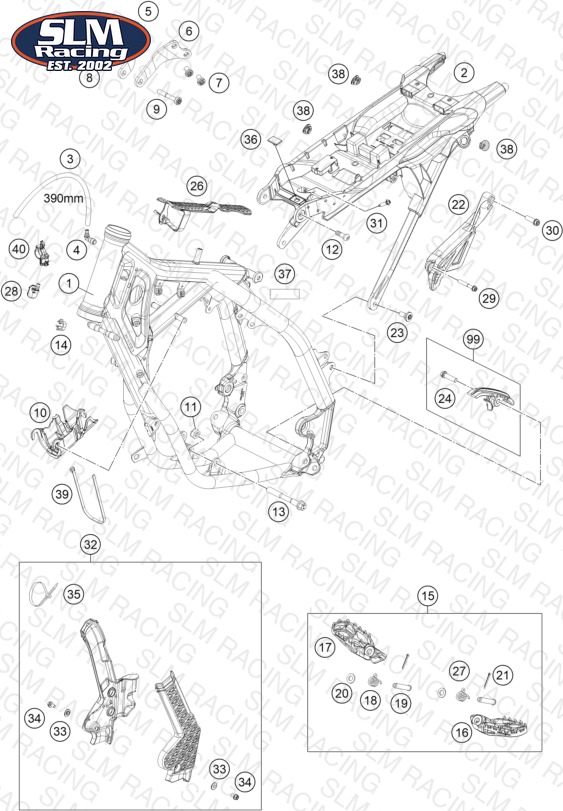

FRAME
Parts (40)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A41003001000HF Frame | Frame | 1 | $1640.97 | Out of Stock | Notify Me |
| 2 | A31003002000 Subframe | Subframe | 1 | $308.43 | Available | 1 |
| 3 | 50335030001 PVC-HOSE 6X9 | PVC-HOSE 6X9 | 1 | $7.91 | Available | 1 |
| 4 | 51030022000 ANGLE PIECE 90 DEGREE M10X1 | ANGLE PIECE 90 DEGREE M10X1 | 1 | $6.15 | Available | 1 |
| 5 | A41003014000 Engine brace right | Engine brace right | 1 | $35.63 | Available | 1 |
| 6 | A41003013000 Engine brace left | Engine brace left | 1 | $25.18 | Backorder — Restocking | 1 |
| 7 | 0035080156S AH-COLLAR SCREW M8X15 TORX45 | AH-COLLAR SCREW M8X15 TORX45 | 4 | $2.99 | Available | 4 |
| 8 | 54310086200 Self locking nut M8 10.9 | Self locking nut M8 10.9 | 1 | $3.99 | Available | 1 |
| 9 | 0035080506S AH collar screw M8x50 ISA45 | AH collar screw M8x50 ISA45 | 1 | $6.15 | Available | 1 |
| 10 | A41011093000 Cable compartment | Cable compartment | 1 | $12.86 | Available | 1 |
| 11 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | $2.99 | Available | 2 |
| 12 | 09000008016U0 Special screw M8x16 ISA45 self | Special screw M8x16 ISA45 self | 2 | $1.99 | Available | 2 |
| 13 | 47003013000 ENGINE BRACKET SCREW 85 SX | ENGINE BRACKET SCREW 85 SX | 2 | $9.89 | Available | 2 |
| 14 | 57013072100 WIRING HOLDER 16MM | WIRING HOLDER 16MM | 2 | $1.99 | Available | 2 |
| 15 | A41003037033 Footpeg set | Footpeg set | 1 | $170.16 | Available | 1 |
| 16 | A41003040000 Footpeg left | Footpeg left | 1 | $66.21 | Available | 1 |
| 17 | A41003041000 Footpeg right | Footpeg right | 1 | $66.21 | Available | 1 |
| 18 | A46003045000 Footrest spring right | Footrest spring right | 1 | $1.99 | Available | 1 |
| 19 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | $14.62 | Available | 2 |
| 20 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 21 | 0094032250 PIN DIN 0094-3.2X25 NIRO | PIN DIN 0094-3.2X25 NIRO | 2 | $1.99 | Available | 2 |
| 22 | 47203096100 Front sprocket cover | Front sprocket cover | 1 | $31.89 | Available | 1 |
| 23 | 79003003000 Special screw M8X18 TORX45 SL | Special screw M8X18 TORX45 SL | 2 | $3.99 | Available | 2 |
| 24 | 0025080306 HH collar screw M8x30 | HH collar screw M8x30 | 1 | $3.62 | Available | 1 |
| 26 | A41007012000 Fuel tank rubber support | Fuel tank rubber support | 1 | $10.55 | Available | 1 |
| 27 | A46003044000 Footrest spring left | Footrest spring left | 1 | $1.99 | Available | 1 |
| 28 | 79107013010 wire holder / fuel ventilation | wire holder / fuel ventilation | 1 | $1.99 | Available | 1 |
| 29 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 1 | $3.99 | Available | 1 |
| 30 | 0025080256 HH collar screw M8x25 | HH collar screw M8x25 | 1 | $2.41 | Available | 1 |
| 32 | A31003094000HA Frame protection set | Frame protection set | 1 | $23.09 | Backorder — Restocking | 1 |
| 33 | 54803092060 Bush f. frame protection 03 | Bush f. frame protection 03 | 2 | $4.99 | Available | 2 |
| 34 | 0025050106 HH collar screw M5x10 TX30 | HH collar screw M5x10 TX30 | 2 | $1.99 | Available | 2 |
| 35 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | 3 | $1.99 | Available | 3 |
| 36 | 77307040041 Isolation pad | Isolation pad | 1 | $2.99 | Available | 1 |
| 99 | 79003053010 CHAIN SLIDING KIT BELOW CPL.16 | CHAIN SLIDING KIT BELOW CPL.16 | 1 | $21.00 | Available | 1 |
| 37 | A40007012000 Protective film trans. 80x40mm | Protective film trans. 80x40mm | 2 | $9.45 | Available | 2 |
| 38 | 47106003160 quick release rubber grommet | quick release rubber grommet | 3 | $4.99 | Available | 3 |
| 39 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | 1 | $2.99 | Available | 1 |
| 40 | 79111093000 wire holder le 19 | wire holder le 19 | 1 | $1.99 | Available | 1 |
| 31 | 0017060205 SCREW FOR PLASTIC K60X20 SW6 | SCREW FOR PLASTIC K60X20 SW6 | 1 | $2.99 | Available | 1 |
