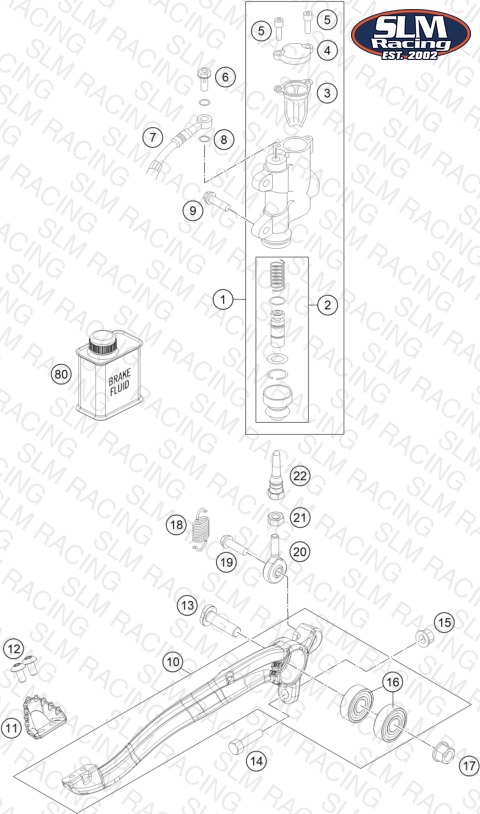

REAR BRAKE CONTROL
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 47213060044 Complete master cylinder | Complete master cylinder | 1 | $233.52 | Available | 1 |
| 2 | 47013061100 Rep.set piston, rear D=12 2004 | Rep.set piston, rear D=12 2004 | 1 | $88.76 | Available | 1 |
| 3 | 47013063000 GASKET CYLINDER COVER REAR 03 | GASKET CYLINDER COVER REAR 03 | 1 | $12.64 | Available | 1 |
| 4 | 47013062000 CYLINDER COVER REAR 85 SX 03 | CYLINDER COVER REAR 85 SX 03 | 1 | $10.44 | Available | 1 |
| 5 | 0912040103 AH.SCREW DIN0912-M 4X10 | AH.SCREW DIN0912-M 4X10 | 2 | $2.99 | Available | 2 |
| 6 | 47013025000 Hollow screw, brake cylinder 0 | Hollow screw, brake cylinder 0 | 1 | $12.75 | Available | 1 |
| 7 | 47213070000 85cc. rear hose | 85cc. rear hose | 1 | $125.94 | Available | 1 |
| 8 | 0770080019 O-RING 8,00X1,00 FORMULA | O-RING 8,00X1,00 FORMULA | 2 | $2.99 | Available | 2 |
| 9 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 2 | $3.99 | Available | 2 |
| 10 | 47213050044 Foot brake lever kpl. | Foot brake lever kpl. | 1 | $100.42 | Available | 1 |
| 11 | 55413051000 STEP PLATE FOOT BRAKE LEVER | STEP PLATE FOOT BRAKE LEVER | 1 | $32.55 | Available | 1 |
| 12 | 58605083010 SCREW TORX M5X10 05 | SCREW TORX M5X10 05 | 2 | $2.99 | Available | 2 |
| 13 | 47213054000 Screw foot brake lever | Screw foot brake lever | 1 | $4.99 | Available | 1 |
| 14 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 1 | $3.99 | Available | 1 |
| 15 | 46030045000 flanged nut M8 WS10 | flanged nut M8 WS10 | 1 | $9.23 | Available | 1 |
| 16 | 0625060002 deep groove ball bearing SKF 6 | deep groove ball bearing SKF 6 | 2 | $14.51 | Available | 2 |
| 17 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 1 | $1.99 | Available | 1 |
| 18 | 79003062000 RETURN SPRING F. BRAKE LEVER | RETURN SPRING F. BRAKE LEVER | 1 | $6.15 | Available | 1 |
| 19 | 0025060206S HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 1 | $2.99 | Available | 1 |
| 20 | 54813055100 Joint head CMP6 | Joint head CMP6 | 1 | $23.42 | Available | 1 |
| 21 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 1 | $1.99 | Available | 1 |
| 22 | 47013056100 PRESSURE ROD 85 SX 06 | PRESSURE ROD 85 SX 06 | 1 | $15.39 | Available | 1 |
| 80 | 00062030000 Brake fluid DOT5.1 0,25L | Brake fluid DOT5.1 0,25L | 1 | $13.99 | Available | 1 |
