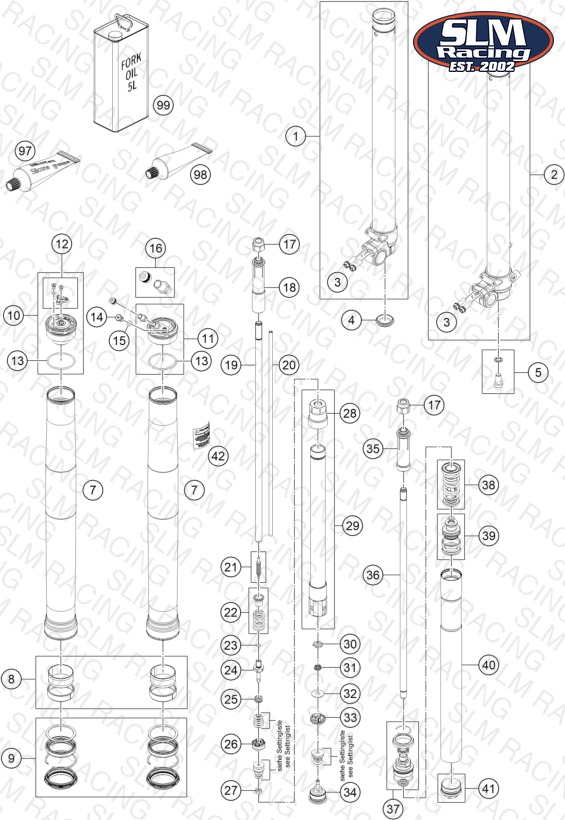

FRONT FORK DISASSEMBLED
Parts (44)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 43570818S1 Axle clamp right + tube 85SX c | Axle clamp right + tube 85SX c | 1 | — | Check availability | |
| 2 | 43570817S1 Axle clamp left + tube 85SX cp | Axle clamp left + tube 85SX cp | 1 | — | Check availability | |
| 3 | 0025080206 HH collar screw M8x20 | HH collar screw M8x20 | 4 | — | Check availability | |
| 4 | 48600141 Rubber cap 35x10 NBR80 | Rubber cap 35x10 NBR80 | 1 | — | Check availability | |
| 5 | 00501020S1 AH SCREW M10X20 SET | AH SCREW M10X20 SET | 1 | — | Check availability | |
| 7 | 43570614E Fork outer tube 44,14x510 dt49 | Fork outer tube 44,14x510 dt49 | 2 | — | Check availability | View Details |
| 8 | R14042 GUIDE BUSHING SET | GUIDE BUSHING SET | 1 | — | Check availability | View Details |
| 9 | R516 Fork sealing kit 43mm red | Fork sealing kit 43mm red | 1 | — | Check availability | View Details |
| 10 | 43570807S Screw cap M46x1,5 cpl. | Screw cap M46x1,5 cpl. | 1 | — | Check availability | |
| 11 | 43570814S Screw cap M46x1.5 air cmpl. | Screw cap M46x1.5 air cmpl. | 1 | — | Check availability | |
| 12 | RP10016 Adjuster Kit rebound | Adjuster Kit rebound | 1 | — | Check availability | |
| 13 | 43570023 O-ring 41x2 NBR70 siliconized | O-ring 41x2 NBR70 siliconized | 2 | — | Check availability | |
| 14 | 48601495 ISA lock screw M8x1 l7 Alu | ISA lock screw M8x1 l7 Alu | 1 | — | Check availability | |
| 15 | 48600044 O-ring 6x1,5 NBR70 | O-ring 6x1,5 NBR70 | 1 | — | Check availability | |
| 16 | 48601494S Schrader valve M8x1 cmpl. | Schrader valve M8x1 cmpl. | 1 | — | Check availability | View Details |
| 17 | 43570859 Lock nut M12x1 h20 WAF22 | Lock nut M12x1 h20 WAF22 | 2 | — | Check availability | |
| 18 | 43570856 Stop 12,2x25x115 | Stop 12,2x25x115 | 1 | — | Check availability | |
| 19 | 48601811 Piston rod 12x477,5 | Piston rod 12x477,5 | 1 | — | Check availability | View Details |
| 20 | 48601812 Adjustment tube 6x445,1 | Adjustment tube 6x445,1 | 1 | — | Check availability | |
| 21 | 48600277S Needle 4,5x43,6 cpl. | Needle 4,5x43,6 cpl. | 1 | — | Check availability | |
| 22 | 48600578S Spring (13,9) 37-32 rebound cp | Spring (13,9) 37-32 rebound cp | 1 | — | Check availability | |
| 23 | 48600299 O-ring 6x1,2 NBR70 | O-ring 6x1,2 NBR70 | 1 | — | Check availability | |
| 24 | 48600576 Tap 6x46 rebound | Tap 6x46 rebound | 1 | — | Check availability | |
| 25 | 35480377 Spring (11,7) 1,5-8 valve | Spring (11,7) 1,5-8 valve | 1 | — | Check availability | |
| 26 | 48601817S Piston 6x23x13 cpl. | Piston 6x23x13 cpl. | 1 | — | Check availability | |
| 27 | 40540486 Nut M6x0,5 h6,5 WAF10 rebound | Nut M6x0,5 h6,5 WAF10 rebound | 1 | — | Check availability | |
| 28 | 43570852S Screw sleeve M27x0,8 cpl. | Screw sleeve M27x0,8 cpl. | 1 | — | Check availability | |
| 30 | 48600163 Nut valve M6x0,5 h6,5 WAF17 | Nut valve M6x0,5 h6,5 WAF17 | 1 | — | Check availability | |
| 31 | 48600202 Spring (8,5) l6,5 valve | Spring (8,5) l6,5 valve | 1 | — | Check availability | |
| 32 | 48600061 Shim 8x24x0,40 | Shim 8x24x0,40 | 1 | — | Check availability | |
| 34 | 48600586S Tap compression cpl. | Tap compression cpl. | 1 | — | Check availability | View Details |
| 35 | 43570819 Stop 12,2x25x78,5 | Stop 12,2x25x78,5 | 1 | — | Check availability | |
| 36 | 48601501 Piston rod 12x470 | Piston rod 12x470 | 1 | — | Check availability | View Details |
| 37 | 48601452S1 Screw sleeve M35,5x0,8 | Screw sleeve M35,5x0,8 | 1 | — | Check availability | View Details |
| 38 | 48601820S1 Spring (22) 60-30 rebound cpl. | Spring (22) 60-30 rebound cpl. | 1 | — | Check availability | |
| 39 | 43570844S Piston 5x34x31,5 mainpiston Fr | Piston 5x34x31,5 mainpiston Fr | 1 | — | Check availability | |
| 40 | 48601571S2 Tube incl. mounting 410mm air | Tube incl. mounting 410mm air | 1 | — | Check availability | |
| 41 | 43570845S Adapter M10xM35,5x0,8x25 cpl. | Adapter M10xM35,5x0,8x25 cpl. | 1 | — | Check availability | |
| 97 | T14034 Fuchs grease IPR (250g) | Fuchs grease IPR (250g) | 1 | — | Check availability | |
| 99 | 48601166S1 Fork Fluid Viscosity 4.0 5L | Fork Fluid Viscosity 4.0 5L | 1 | — | Check availability | |
| 98 | 00062010053 special grease AER Fork 400g | special grease AER Fork 400g | 1 | — | Check availability | |
| 33 | 48601934S Piston 6x27,3x9 compression cp | Piston 6x27,3x9 compression cp | 1 | — | Check availability | |
| 29 | 48600870S7 Cartridge tube cpl. | Cartridge tube cpl. | 1 | — | Check availability | |
| 42 | 52000158 Sticker warning 40x40 | Sticker warning 40x40 | 1 | — | Check availability |
