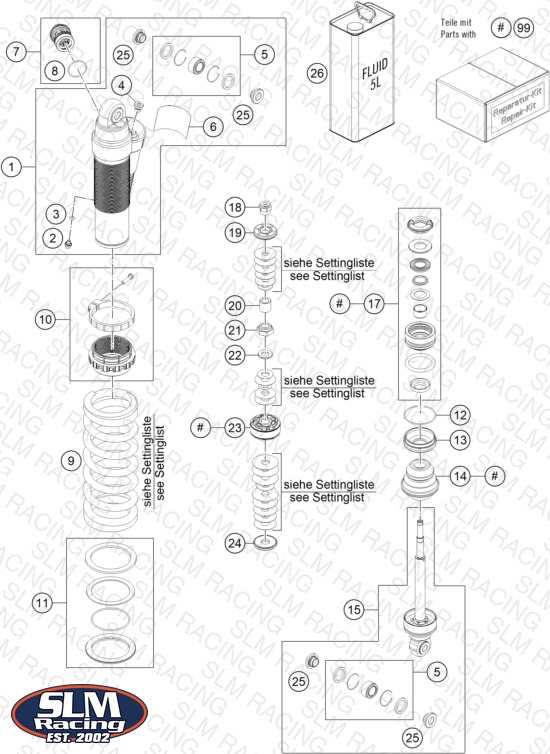

SHOCK ABSORBER DISASSEMBLED
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 46181242S3 Monoshock case M53x1 with pipe | Monoshock case M53x1 with pipe | 1 | $345.39 | Available | 1 |
| 2 | 36120151 HS lock screw M5x6 | HS lock screw M5x6 | 1 | $2.19 | Available | 1 |
| 3 | 46810893 O-ring 5,28x1,78 NBR70 black | O-ring 5,28x1,78 NBR70 black | 1 | $0.76 | Available | 1 |
| 4 | 50180095 HS cylinder-head screw R1/8 l8 | HS cylinder-head screw R1/8 l8 | 1 | $2.85 | Available | 1 |
| 5 | R12012 Ball joint bearing kit top 12m | Ball joint bearing kit top 12m | 2 | $42.01 | Available | 2 |
| 6 | 52000143 Sticker WP warning 65x40 | Sticker WP warning 65x40 | 1 | $8.24 | Available | 1 |
| 7 | 50181101S22 Compression cpl. | Compression cpl. | 1 | $142.55 | Available | 1 |
| 8 | 50180217 O-ring 27x1,5 Viton70 green IS | O-ring 27x1,5 Viton70 green IS | 1 | $2.41 | Available | 1 |
| 9 | 91010271S SPRING (59) 215 30 N/MM | SPRING (59) 215 30 N/MM | — | $153.99 | Available | 1 |
| 9 | 91010161S SPRING (59) 215 40 N/MM D=9,5 | SPRING (59) 215 40 N/MM D=9,5 | 1 | $153.99 | Available | 1 |
| 9 | 91010201 Mainspring (59) 45-215 damper | Mainspring (59) 45-215 damper | — | $153.99 | Available | 1 |
| 10 | 46181228S Spring retainer M55x2x75x40 pl | Spring retainer M55x2x75x40 pl | 1 | $41.24 | Available | 1 |
| 11 | RP10005 SPRING CUP SET PDS 17 | SPRING CUP SET PDS 17 | 1 | $38.27 | Available | 1 |
| 12 | 46810010 Round-wire snap ring 49x1,5 | Round-wire snap ring 49x1,5 | 1 | $3.62 | Available | 1 |
| 13 | 46180338 Cover 46,12x6,2 h15,7 | Cover 46,12x6,2 h15,7 | 1 | $40.58 | Available | 1 |
| 14 | 46181237 Rubber pad 17x48x55 | Rubber pad 17x48x55 | 1 | $22.76 | Available | 1 |
| 15 | 46181301S1 Shock absorber bot. cpl. | Shock absorber bot. cpl. | 1 | $625.34 | Available | 1 |
| 17 | 46180669S Sealholder 46x28 cpl. | Sealholder 46x28 cpl. | 1 | $83.81 | Backorder — Restocking | 1 |
| 18 | 46181183S Piston rod nut M10x1 PDS cpl. | Piston rod nut M10x1 PDS cpl. | 1 | $20.78 | Available | 1 |
| 19 | 46181184 Piston 15x35.4x6 4 | Piston 15x35.4x6 4 | 1 | $17.70 | Available | 1 |
| 20 | 46181249 Bush 10x17x23 | Bush 10x17x23 | 1 | $13.63 | Available | 1 |
| 21 | 46810474 Piston rod nut M12x1 | Piston rod nut M12x1 | 1 | $6.15 | Available | 1 |
| 22 | 46811258 Washer 12x24x2,5 | Washer 12x24x2,5 | 1 | $29.14 | Backorder — Restocking | 1 |
| 23 | 46181328S Piston 12x46x20 cpl. | Piston 12x46x20 cpl. | 1 | $80.29 | Available | 1 |
| 24 | 46181194 Rebound disc 12x36x4 h0 | Rebound disc 12x36x4 h0 | 1 | $15.17 | Available | 1 |
| 9 | 91010240S Spring (59) 215 35 N/MM D=9.25 | Spring (59) 215 35 N/MM D=9.25 | — | $153.99 | Available | 1 |
| 9 | 91010080 Mainspring (59) 50-215 damper | Mainspring (59) 50-215 damper | — | $153.99 | Available | 1 |
| 25 | 46180007 Distance bush 12x15/18/24,5x10 | Distance bush 12x15/18/24,5x10 | 4 | $20.89 | Available | 4 |
| 99 | RP10020 Repairing kit shock absorber P | Repairing kit shock absorber P | — | $142.99 | Available | 1 |
| 26 | 50180751S1 SHOCK ABSORBER FLUID 5 LT | SHOCK ABSORBER FLUID 5 LT | — | $175.99 | Available | 1 |
