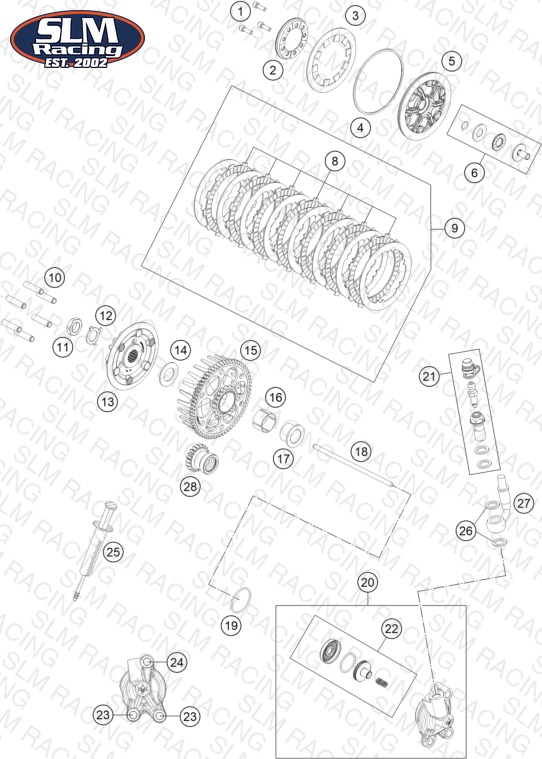

CLUTCH
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 0912050163 AH collar screw DIN 912 M5x16 | AH collar screw DIN 912 M5x16 | 3 | — | Check availability | |
| 2 | 47232006000 Spring disk | Spring disk | 1 | — | Check availability | View Details |
| 3 | 47232005000 Clutch spring 58x97.1x1.5 | Clutch spring 58x97.1x1.5 | 1 | — | Check availability | |
| 4 | 47232013000 Inner ring 94x99x1.5 | Inner ring 94x99x1.5 | 1 | — | Check availability | |
| 5 | 47232003000 coupling pressure plate | coupling pressure plate | 1 | — | Check availability | View Details |
| 6 | 78132057144 PRESSURE PIECE CPL. | PRESSURE PIECE CPL. | 1 | — | Check availability | |
| 10 | 47232004000 Sleeve 7.95x32.2 | Sleeve 7.95x32.2 | 6 | — | Check availability | View Details |
| 11 | 47232019000 Hexagon nut M16x1,5 | Hexagon nut M16x1,5 | 1 | — | Check availability | View Details |
| 12 | 47232018000 Lock washer | Lock washer | 1 | — | Check availability | |
| 13 | 47232002000 Inner clutch hub | Inner clutch hub | 1 | — | Check availability | View Details |
| 14 | 47232017000 Support disk | Support disk | 1 | — | Check availability | |
| 15 | 47232001064 Clutch basket | Clutch basket | 1 | — | Check availability | |
| 16 | 0405263017 Needle cage K263017 | Needle cage K263017 | 1 | — | Check availability | |
| 17 | 47232015000 Collar 20x26x19 | Collar 20x26x19 | 1 | — | Check availability | |
| 18 | 47232054000 Rod | Rod | 1 | — | Check availability | |
| 8 | 47232011000 lining disc 1,95mm | lining disc 1,95mm | 7 | — | Check availability | |
| 9 | 47232010033 disc pack | disc pack | 1 | — | Check availability | |
| 19 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | — | Check availability | |
| 20 | 72132061044 Output cylinder cpl. | Output cylinder cpl. | 1 | — | Check availability | |
| 21 | 72032064000 BLEEDER SCREW CPL. | BLEEDER SCREW CPL. | 1 | — | Check availability | |
| 22 | 47132066000 Piston cmpl. | Piston cmpl. | 1 | — | Check availability | |
| 23 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 2 | — | Check availability | |
| 24 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 1 | — | Check availability | |
| 25 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | — | Check availability | |
| 27 | 72032063000 CLUTCH PIPE | CLUTCH PIPE | 1 | — | Check availability | |
| 28 | 47232023020 Gear primary drive | Gear primary drive | 1 | — | Check availability | |
| 26 | 0603082121 SEAL RING CU DIN7603- 8X12X1 | SEAL RING CU DIN7603- 8X12X1 | 2 | — | Check availability |
