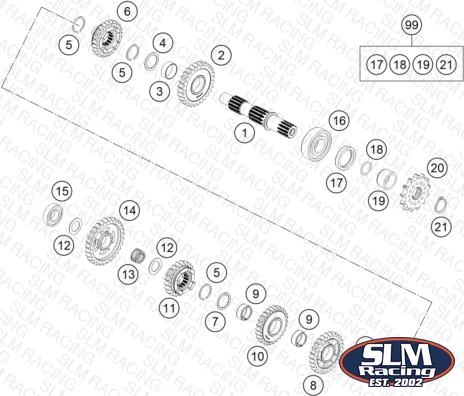

TRANSMISSION II - COUNTERSHAFT
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 47233010000 Output shaft cpl. | Output shaft cpl. | 1 | $282.36 | Available | 1 |
| 2 | 47233012000 Idler gear 2 nd. | Idler gear 2 nd. | 1 | $79.41 | Backorder — Restocking | 1 |
| 3 | 47233021000 Bushing idler gear | Bushing idler gear | 1 | $19.79 | Available | 1 |
| 4 | 47233041000 Thrust washer 19.2x27.1x1 | Thrust washer 19.2x27.1x1 | 1 | $2.99 | Available | 1 |
| 5 | 0417210120 CIRCLIP SW21 | CIRCLIP SW21 | 2 | $2.99 | Available | 2 |
| 6 | 47233015000 Sliding gear 5 th. | Sliding gear 5 th. | 1 | $85.57 | Available | 1 |
| 7 | 47233040000 Thrust washer 22x1.50x13x9H | Thrust washer 22x1.50x13x9H | 2 | $2.99 | Available | 2 |
| 8 | 47233013000 Idler gear 3 rd. | Idler gear 3 rd. | 1 | $69.95 | Available | 1 |
| 9 | 50133099000 NEEDLE CAGE K18X22X10 PARTED | NEEDLE CAGE K18X22X10 PARTED | 2 | $15.28 | Available | 2 |
| 10 | 47233014000 idler gear 4 th. | idler gear 4 th. | 1 | $75.34 | Available | 1 |
| 11 | 47233016000 sliding gear 6 th. | sliding gear 6 th. | 1 | $85.24 | Available | 1 |
| 12 | 47133043000 Thrust washer 15.2x25x0.5 | Thrust washer 15.2x25x0.5 | 2 | $3.99 | Available | 2 |
| 13 | 47033099000 NEEDLE BEARING K15X19X10S | NEEDLE BEARING K15X19X10S | 1 | $10.44 | Available | 1 |
| 14 | 47233011000 Idler gear 1 st. | Idler gear 1 st. | 1 | $73.14 | Available | 1 |
| 15 | 0625160020 BALL BEARING 16002 C3 | BALL BEARING 16002 C3 | 1 | $22.43 | Available | 1 |
| 16 | 0625062041 Grooved ball bearing 6204 JR2 | Grooved ball bearing 6204 JR2 | 1 | $16.38 | Available | 1 |
| 17 | 0760263561 SHAFT SEAL RING 26X35X6BSL NB | SHAFT SEAL RING 26X35X6BSL NB | 1 | $7.36 | Available | 1 |
| 18 | 0770020180 O-RING 18,77X1,78 NBR 70 | O-RING 18,77X1,78 NBR 70 | 1 | $1.99 | Available | 1 |
| 19 | 47233030000 Spacer chain pinion | Spacer chain pinion | 1 | $11.32 | Available | 1 |
| 20 | 47233029013 Sprocket 13t | Sprocket 13t | 1 | $34.64 | Available | 1 |
| 21 | 49033091000 CIRCLIP AS20X1,75 | CIRCLIP AS20X1,75 | 1 | $4.99 | Available | 1 |
| 99 | 00050000942 COUNTER SHAFT REP.KIT 105/85SX | COUNTER SHAFT REP.KIT 105/85SX | 1 | $23.75 | Available | 1 |
