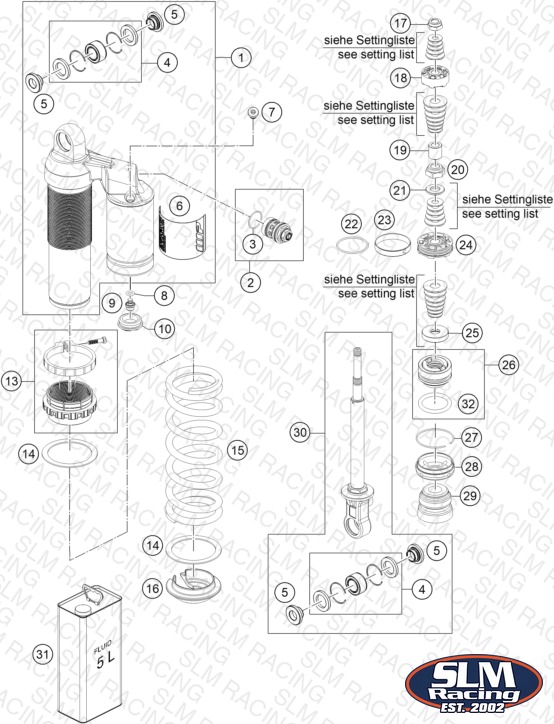

SHOCK ABSORBER DISASSEMBLED
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 46181019S2 MONOSHOCK CASE CPL. | MONOSHOCK CASE CPL. | 1 | — | Check availability | |
| 2 | 50181101S10 Compression cpl. | Compression cpl. | 1 | — | Check availability | |
| 3 | 50180218 O-ring 25x1,5 Viton70 | O-ring 25x1,5 Viton70 | 1 | — | Check availability | |
| 4 | R12012 Ball joint bearing kit top 12m | Ball joint bearing kit top 12m | 2 | — | Check availability | View Details |
| 5 | 46180007 Distance bush 12x15/18/24,5x10 | Distance bush 12x15/18/24,5x10 | 4 | — | Check availability | |
| 6 | 52000087 sticker WP warning 47x63 | sticker WP warning 47x63 | 1 | — | Check availability | View Details |
| 7 | 50180095 HS cylinder-head screw R1/8 l8 | HS cylinder-head screw R1/8 l8 | 1 | — | Check availability | |
| 8 | 46810893 O-ring 5,28x1,78 NBR70 black | O-ring 5,28x1,78 NBR70 black | 1 | — | Check availability | View Details |
| 9 | 36120151 HS lock screw M5x6 | HS lock screw M5x6 | 1 | — | Check availability | |
| 10 | 46811208 Rubber cap do not open 22x5,5 | Rubber cap do not open 22x5,5 | 1 | — | Check availability | |
| 13 | 46181013S spring retainer M55x2x71x35 pl | spring retainer M55x2x71x35 pl | 1 | — | Check availability | |
| 14 | 50180410 Washer 58,6x73,6x1,5 | Washer 58,6x73,6x1,5 | 2 | — | Check availability | |
| 15 | 91010161S SPRING (59) 215 40 N/MM D=9,5 | SPRING (59) 215 40 N/MM D=9,5 | — | — | Check availability | |
| 15 | 91010240S Spring (59) 215 35 N/MM D=9.25 | Spring (59) 215 35 N/MM D=9.25 | 1 | — | Check availability | |
| 15 | 91010271S SPRING (59) 215 30 N/MM | SPRING (59) 215 30 N/MM | — | — | Check availability | |
| 16 | 46180349 Spring retainer 28x56x15 | Spring retainer 28x56x15 | 1 | — | Check availability | |
| 17 | 46180356 PISTON ROD NUT M10X1 | PISTON ROD NUT M10X1 | 1 | — | Check availability | |
| 18 | 46180744 Piston 10.05x35.4x13.65 3.5/5. | Piston 10.05x35.4x13.65 3.5/5. | 1 | — | Check availability | |
| 19 | 46181025 Bush 10x17x17 | Bush 10x17x17 | 1 | — | Check availability | |
| 20 | 46810474 Piston rod nut M12x1 | Piston rod nut M12x1 | 1 | — | Check availability | |
| 21 | 46811258 Washer 12x24x2,5 | Washer 12x24x2,5 | 1 | — | Check availability | |
| 22 | 46810035 O-ring 37x,82x1,78 Viton70 gre | O-ring 37x,82x1,78 Viton70 gre | 1 | — | Check availability | |
| 23 | 46811206 Piston ring 43,95x45,95x8 | Piston ring 43,95x45,95x8 | 1 | — | Check availability | |
| 24 | 46810560 Piston 12,05x45,5x12,6 4,5/7 | Piston 12,05x45,5x12,6 4,5/7 | 1 | — | Check availability | |
| 25 | 46180337 Rebound disc 12x34x7 h4 | Rebound disc 12x34x7 h4 | 1 | — | Check availability | |
| 26 | 46180669S Sealholder 46x28 cpl. | Sealholder 46x28 cpl. | 1 | — | Check availability | View Details |
| 27 | 46810010 Round-wire snap ring 49x1,5 | Round-wire snap ring 49x1,5 | 1 | — | Check availability | |
| 28 | 46180338 Cover 46,12x6,2 h15,7 | Cover 46,12x6,2 h15,7 | 1 | — | Check availability | |
| 29 | 50180276 Rubber pad 17,2x45,2x40 black | Rubber pad 17,2x45,2x40 black | 1 | — | Check availability | |
| 30 | 46180520S5 MONOSHOCK LOWER PART | MONOSHOCK LOWER PART | 1 | — | Check availability | |
| 31 | 50180751S1 SHOCK ABSORBER FLUID 5 LT | SHOCK ABSORBER FLUID 5 LT | 1 | — | Check availability | |
| 32 | 14460004 O-ring 36x5 NBR70 | O-ring 36x5 NBR70 | 1 | — | Check availability |
