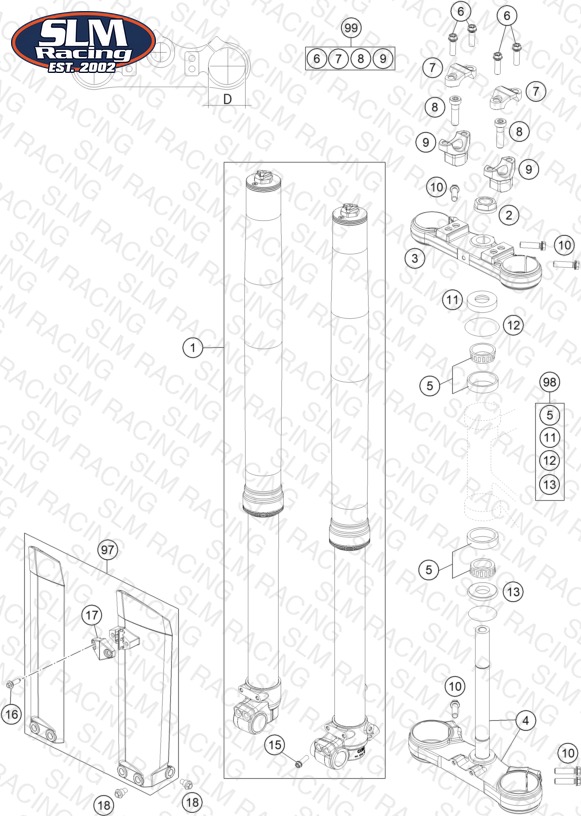

FRONT FORK, TRIPLE CLAMP

← →

Parts (20)

#	Part Number	Description	Qty	Price	Status
3	47101034114 TOP TRIPLE CLAMP	TOP TRIPLE CLAMP	1	—	Check availability
4	47101032114 BOTTOM TRIPLE CLAMP CPL.	BOTTOM TRIPLE CLAMP CPL.	1	—	Check availability
8	0032100356S AH-COLLAR SCREW M10X35 ISA45	AH-COLLAR SCREW M10X35 ISA45	2	—	Check availability
6	0025080256 HH collar screw M8x25	HH collar screw M8x25	4	—	Check availability
17	47101085000HA CLAMP BRAKE HOSE	CLAMP BRAKE HOSE	1	—	Check availability
1	05187M0501 FORK WP 85SX 2013	FORK WP 85SX 2013	1	—	Check availability
2	59030029000 HH NUT M20X1,5 WS=27 RIGHT	HH NUT M20X1,5 WS=27 RIGHT	1	—	Check availability
5	49001081000 TAPERED ROLLER BEARING 32004X	TAPERED ROLLER BEARING 32004X	2	—	Check availability
7	77201038000 HANDLEBAR CLAMP 28MM	HANDLEBAR CLAMP 28MM	2	—	Check availability
9	59401039037 Handlebar mount D28mm-H37mm	Handlebar mount D28mm-H37mm	2	—	Check availability
10	0025080306 HH collar screw M8x30	HH collar screw M8x30	6	—	Check availability
11	49001086000 COVERING CAP	COVERING CAP	1	—	Check availability
12	0770049025 O-RING 49,00X2,50 NBR	O-RING 49,00X2,50 NBR	1	—	Check availability
16	0017060206 SCREW F. PLASTIC K60X20AL SW6	SCREW F. PLASTIC K60X20AL SW6	2	—	Check availability
18	59001092050 SPECIAL SCREW M6X12,5 WS=8	SPECIAL SCREW M6X12,5 WS=8	6	—	Check availability
97	47101094000HA FORK PROTECTOR SET TC85 17	FORK PROTECTOR SET TC85 17	1	—	Check availability
98	00050000931 STEARING HEAD REP. KIT MINI	STEARING HEAD REP. KIT MINI	—	—	Check availability	View Details
99	00050000921 HANDLEBAR SUPPORT KIT D28/H37	HANDLEBAR SUPPORT KIT D28/H37	—	—	Check availability
13	46001086000 PROTECTION RING 20,1X39X5	PROTECTION RING 20,1X39X5	1	—	Check availability
15	0025080206 HH collar screw M8x20	HH collar screw M8x20	4	—	Check availability
