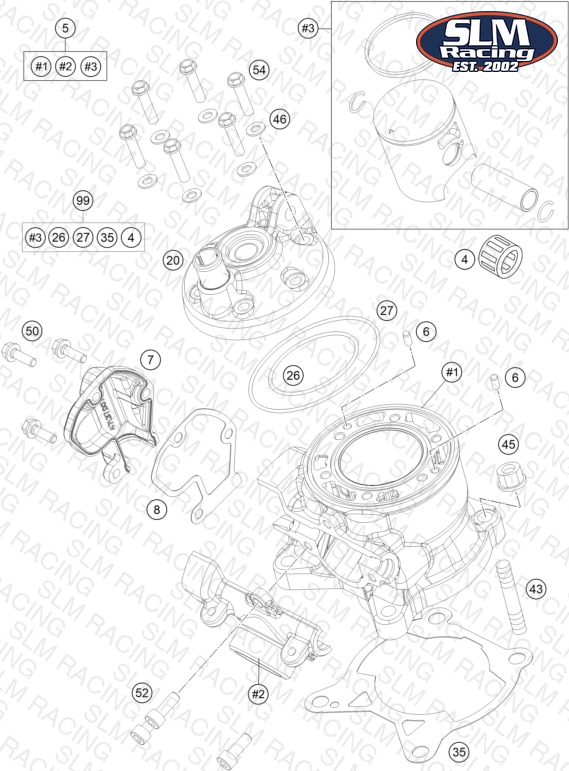

CYLINDER

← →

Parts (18)

#	Part Number	Description	Qty	Price	Status
5	47130038000 CYLINDER + PISTON 85 SX	CYLINDER + PISTON 85 SX	1	—	Check availability
7	47137007000 CONTROL COVER	CONTROL COVER	1	—	Check availability
8	47137008000 GASKET CONTROL COVER	GASKET CONTROL COVER	1	—	Check availability
20	47130006000 CYLINDER HEAD 85 SX	CYLINDER HEAD 85 SX	1	—	Check availability
6	0402040980 Needle roll.DIN5402 NRB 4X9.8	Needle roll.DIN5402 NRB 4X9.8	2	—	Check availability
26	0770540020 O-RING 54X2 VITON	O-RING 54X2 VITON	1	—	Check availability
27	0770800021 O-RING 80,00X2,00 VITON	O-RING 80,00X2,00 VITON	1	—	Check availability
35	47030035020 CYLINDER BASE GASKET 0,20MM	CYLINDER BASE GASKET 0,20MM	—	—	Check availability
35	47030035030 CYLINDER BASE GASKET 0,30MM	CYLINDER BASE GASKET 0,30MM	—	—	Check availability
35	47030035000 CYLINDER BASE GASKET 0,50MM	CYLINDER BASE GASKET 0,50MM	—	—	Check availability
43	0835080240 STUD DIN 0835-M 8X24	STUD DIN 0835-M 8X24	4	—	Check availability
45	46030045000 flanged nut M8 WS10	flanged nut M8 WS10	4	—	Check availability
46	0603061001 CU-SEAL RING DIN7603-6X10X1	CU-SEAL RING DIN7603-6X10X1	6	—	Check availability
50	0015050123 HH COLLAR SCREW M 5X12 WS=8	HH COLLAR SCREW M 5X12 WS=8	3	—	Check availability
52	0012060164 AH SCREW DIN6912 M6X16 SL	AH SCREW DIN6912 M6X16 SL	3	—	Check availability
54	0025060256 HH collar screw M6x25 TX30	HH collar screw M6x25 TX30	6	—	Check availability
99	00050000204 PISTON KIT GR.I 85 SX/TC	PISTON KIT GR.I 85 SX/TC	—	—	Check availability
99	00050000205 PISTON KIT GR.II 85 SX/TC	PISTON KIT GR.II 85 SX/TC	—	—	Check availability
