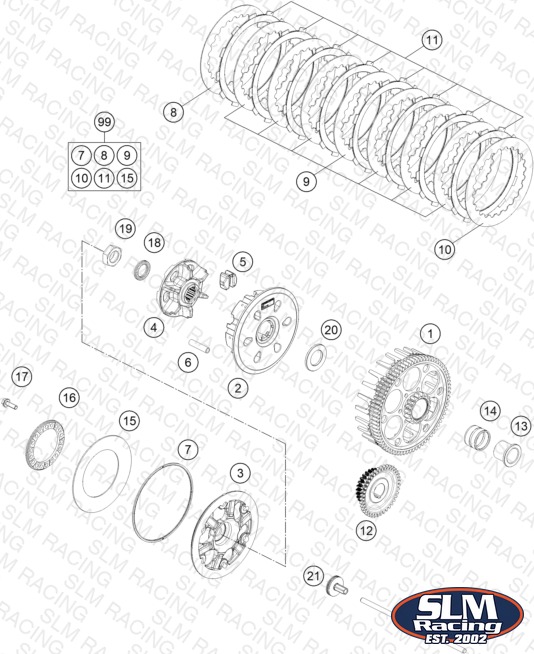

CLUTCH
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A46032001072 Outer clutch hub | Outer clutch hub | 1 | — | Check availability | |
| 2 | 78132002400 Inner clutch hub | Inner clutch hub | 1 | — | Check availability | |
| 3 | 79432003100 Clutch pressure plate | Clutch pressure plate | 1 | — | Check availability | |
| 4 | 78132002211 Clutch center | Clutch center | 1 | — | Check availability | |
| 5 | 78132025100 DAMPING RUBBER | DAMPING RUBBER | 6 | — | Check availability | |
| 6 | 77232104000 Sleeve, 7.95x38 | Sleeve, 7.95x38 | 6 | — | Check availability | |
| 7 | 78132013000 WASHER 112X118X1.5 | WASHER 112X118X1.5 | 1 | — | Check availability | |
| 8 | 59032010100 INTERMEDIATE DISC 1MM 2002 | INTERMEDIATE DISC 1MM 2002 | 1 | — | Check availability | |
| 9 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 | INTERMEDIATE DISC 1,4MM 2002 | 7 | — | Check availability | |
| 10 | 78932010000 INTERMEDIATE DISC 1MM | INTERMEDIATE DISC 1MM | 1 | — | Check availability | |
| 11 | 54832011100 LINING DISC 1,95 MM | LINING DISC 1,95 MM | 8 | — | Check availability | |
| 12 | 55432024026 PRIMARY GEAR | PRIMARY GEAR | 1 | — | Check availability | |
| 13 | A46032015000 Collar sleeve | Collar sleeve | 1 | — | Check availability | |
| 14 | 0405252910 NEEDLE BEAR K 25X29X10 | NEEDLE BEAR K 25X29X10 | 1 | — | Check availability | |
| 15 | 78132005000 BELLEVILLE SPRING 71X115X1,5 I | BELLEVILLE SPRING 71X115X1,5 I | 1 | — | Check availability | |
| 16 | 78132006200 Spring retainer | Spring retainer | 1 | — | Check availability | |
| 17 | 0025050166 HH collar screw M5x16 TX30 | HH collar screw M5x16 TX30 | 6 | — | Check availability | |
| 18 | 0252012002900 Wedge lock washer 19.5x29x3.4 | Wedge lock washer 19.5x29x3.4 | 1 | — | Check availability | |
| 19 | 0936181506 Hex nut DIN0936-M18x1.5 right | Hex nut DIN0936-M18x1.5 right | 1 | — | Check availability | |
| 20 | 78932009000 WASHER 22 X 36,5 X 3 | WASHER 22 X 36,5 X 3 | 1 | — | Check availability | |
| 21 | 78132057144 PRESSURE PIECE CPL. | PRESSURE PIECE CPL. | 1 | — | Check availability | |
| 22 | A48032054000 Push rod | Push rod | 1 | — | Check availability | |
| 99 | 54832011110 CLUTCH KIT 250/300 13-15 | CLUTCH KIT 250/300 13-15 | 0 | — | Check availability |
