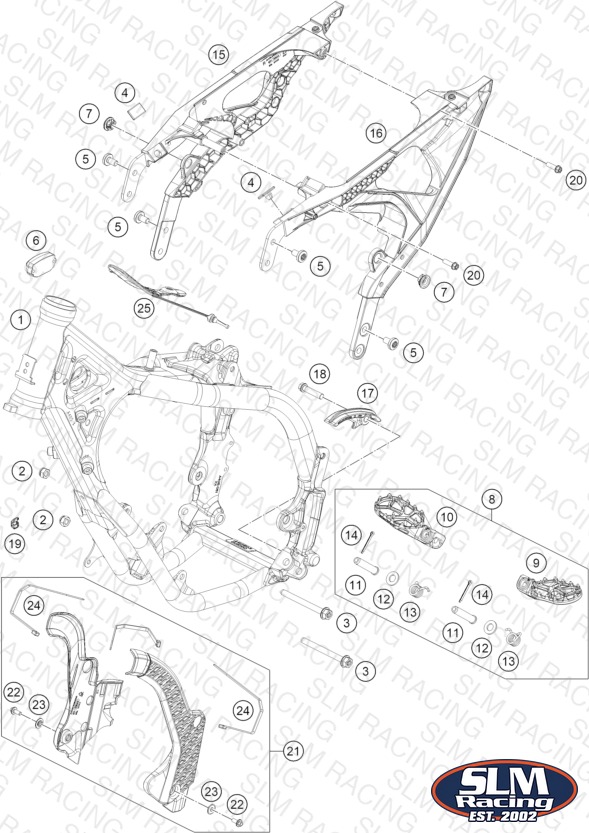

FRAME
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A40503001000HF Frame | Frame | 1 | $627.87 | Out of Stock | Notify Me |
| 2 | 51010086100 self-locking nut M8 Cu | self-locking nut M8 Cu | 2 | $3.99 | Available | 2 |
| 3 | 01665080856 Hex screw EN 1665-M8x85-10.9 | Hex screw EN 1665-M8x85-10.9 | 2 | $2.99 | Available | 2 |
| 4 | 77307040041 Isolation pad | Isolation pad | 2 | $2.99 | Available | 2 |
| 5 | 09000008016U0 Special screw M8x16 ISA45 self | Special screw M8x16 ISA45 self | 4 | $1.99 | Available | 4 |
| 6 | 81312920050 HOURMETER | HOURMETER | 1 | $65.99 | Available | 1 |
| 7 | 47106003160 quick release rubber grommet | quick release rubber grommet | 2 | $4.99 | Available | 2 |
| 8 | A40503037033 Footpeg set | Footpeg set | 1 | $151.02 | Available | 1 |
| 9 | A40003040000 Footpeg left | Footpeg left | 1 | $82.27 | Available | 1 |
| 10 | A40003041000 Footpeg right | Footpeg right | 1 | $82.27 | Available | 1 |
| 11 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | $14.62 | Available | 2 |
| 12 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 13 | A46003045000 Footrest spring right | Footrest spring right | 2 | $1.99 | Available | 2 |
| 14 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | $1.99 | Available | 2 |
| 15 | A40503002020 Subframe right | Subframe right | 1 | $98.33 | Available | 1 |
| 16 | A40503002010 Subframe left | Subframe left | 1 | $85.46 | Available | 1 |
| 17 | 45303053000 Chain slider bottom | Chain slider bottom | 1 | $11.87 | Available | 1 |
| 18 | 0025080306 HH collar screw M8x30 | HH collar screw M8x30 | 1 | $3.62 | Available | 1 |
| 20 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 2 | $3.99 | Available | 2 |
| 21 | A40503094000HA Frame protector set | Frame protector set | 1 | $23.09 | Available | 1 |
| 22 | 0014050123 HH COLLAR SCREW M 5X12 WS=6 | HH COLLAR SCREW M 5X12 WS=6 | 2 | $2.99 | Available | 2 |
| 23 | 54803092060 Bush f. frame protection 03 | Bush f. frame protection 03 | 2 | $4.99 | Available | 2 |
| 24 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | 3 | $1.99 | Available | 3 |
| 25 | A40507012000 Tank support rubber | Tank support rubber | 1 | $10.99 | Available | 1 |
| 19 | A49003099030 Cable protection | Cable protection | 2 | $5.16 | Available | 2 |
