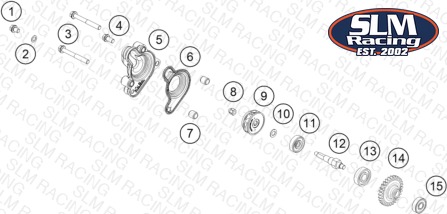

WATER PUMP
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 0025060086 HH collar screw M6x8 TX30 | HH collar screw M6x8 TX30 | 1 | — | Check availability | |
| 2 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | — | Check availability | |
| 3 | 0025060556 HH collar screw M6x55 TX30 | HH collar screw M6x55 TX30 | 2 | — | Check availability | |
| 4 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 1 | — | Check availability | |
| 5 | A40035052000 Water pump cover | Water pump cover | 1 | — | Check availability | |
| 6 | A40035053000 Gasket with carrier plate | Gasket with carrier plate | 1 | — | Check availability | |
| 7 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 2 | — | Check availability | View Details |
| 8 | 0015870501000 Cap nut M5 DIN 1587 | Cap nut M5 DIN 1587 | 1 | — | Check availability | |
| 10 | 50435049000 PREFORMED WASHER | PREFORMED WASHER | 1 | — | Check availability | |
| 11 | 0760082472 SHAFT SEAL RING 8X24X7 A DUO | SHAFT SEAL RING 8X24X7 A DUO | 1 | — | Check availability | |
| 12 | A40035054050 Water pump shaft, loose | Water pump shaft, loose | 1 | — | Check availability | View Details |
| 13 | 0625060001 BALL BEARING 6000/C3 | BALL BEARING 6000/C3 | 1 | — | Check availability | |
| 14 | 45235054028 DRIVE WHEEL | DRIVE WHEEL | 1 | — | Check availability | |
| 15 | 0625006065 Ball bearing 696 DDM1 C3 | Ball bearing 696 DDM1 C3 | 1 | — | Check availability | |
| 9 | 79235055044 WATER PUMP WHEEL CPL. | WATER PUMP WHEEL CPL. | 1 | — | Check availability |
