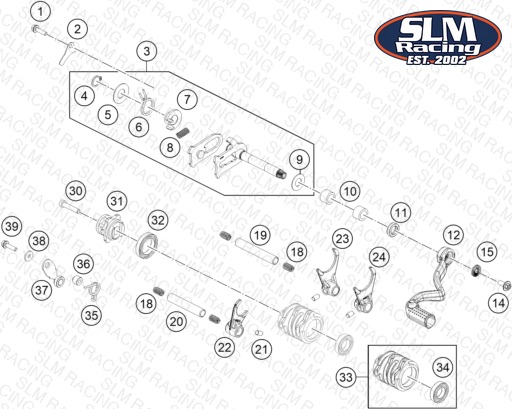

SHIFTING MECHANISM
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 0025050126S Hex collar screw M5x12 ISA30 S | Hex collar screw M5x12 ISA30 S | 1 | $1.99 | Available | 1 |
| 2 | 46234005110 SHIFTING SHAFT FENDER RET. PL. | SHIFTING SHAFT FENDER RET. PL. | 1 | $6.15 | Available | 1 |
| 3 | A40534005044 Shift shaft cmpl. | Shift shaft cmpl. | 1 | $76.88 | Available | 1 |
| 4 | 0471140100 retaining ring DIN 471 14x1 | retaining ring DIN 471 14x1 | 1 | $1.99 | Available | 1 |
| 5 | 54634050000 STOP DISK 14X30X1 | STOP DISK 14X30X1 | 1 | $2.99 | Available | 1 |
| 6 | 54834014000 RETURN SPRING 03 | RETURN SPRING 03 | 1 | $4.99 | Available | 1 |
| 7 | 54634020000 SPRING GUIDE | SPRING GUIDE | 1 | $7.58 | Available | 1 |
| 8 | 56534013100 TENSIONING SPRING 0,8MM | TENSIONING SPRING 0,8MM | 1 | $1.99 | Available | 1 |
| 9 | 49033013000 STOP DISK 12,1X25X1 | STOP DISK 12,1X25X1 | 1 | $4.99 | Available | 1 |
| 10 | 46034027000 NEEDLE BEARING 12X18X12 2002 | NEEDLE BEARING 12X18X12 2002 | 2 | $9.45 | Available | 2 |
| 11 | 0760122050 SHAFT SEAL RING 12X20X5 B | SHAFT SEAL RING 12X20X5 B | 1 | $9.45 | Available | 1 |
| 12 | A40534031000 Gear shift lever | Gear shift lever | 1 | $77.76 | Available | 1 |
| 14 | 0024060156S HH collar screw M6x15 TX30 | HH collar screw M6x15 TX30 | 1 | $2.99 | Available | 1 |
| 15 | 50233041500 PAIR NORDLOCK WASHER M6 | PAIR NORDLOCK WASHER M6 | 1 | $4.99 | Available | 1 |
| 18 | 58038023400 Compression spring L=25mm D=0. | Compression spring L=25mm D=0. | 4 | $1.99 | Available | 4 |
| 19 | A40534019000 Shift fork shaft (L=75.5 mm) | Shift fork shaft (L=75.5 mm) | 1 | $11.10 | Available | 1 |
| 20 | A46034020000 Shift fork shaft (L=66 mm) | Shift fork shaft (L=66 mm) | 1 | $9.23 | Available | 1 |
| 21 | 0402061000 NEEDLE ROLLER ZRB 6X10 | NEEDLE ROLLER ZRB 6X10 | 3 | $7.47 | Available | 3 |
| 22 | 46234001000 SHIFT FORK MAIN SHAFT | SHIFT FORK MAIN SHAFT | 1 | $72.26 | Available | 1 |
| 23 | 46234002000 SHIFT FORK COUNTERSHAFT R/S | SHIFT FORK COUNTERSHAFT R/S | 1 | $68.08 | Available | 1 |
| 24 | 46234003000 SHIFT FORK COUNTERSHAFT Ll/S | SHIFT FORK COUNTERSHAFT Ll/S | 1 | $67.75 | Available | 1 |
| 30 | 0912060303 AH SCREW DIN0912-M 6X30 | AH SCREW DIN0912-M 6X30 | 1 | $2.99 | Available | 1 |
| 31 | 46234015100 Shift drum location cpl. | Shift drum location cpl. | 1 | $35.85 | Available | 1 |
| 32 | 0410002500700 Grooved ball bearing 6805 JR C | Grooved ball bearing 6805 JR C | 1 | $51.69 | Available | 1 |
| 33 | 46234012033 SHIFT ROLLER CPL. | SHIFT ROLLER CPL. | 1 | $96.57 | Backorder — Restocking | 1 |
| 34 | 0625069034 BALL BEARING 6903 C4 | BALL BEARING 6903 C4 | 1 | $23.97 | Available | 1 |
| 35 | 54834023000 LOCKING LEVER SPRING 03 | LOCKING LEVER SPRING 03 | 1 | $3.99 | Available | 1 |
| 36 | 54634052300 SLEEVE FOR LOCKING LEVER | SLEEVE FOR LOCKING LEVER | 1 | $3.99 | Available | 1 |
| 37 | A46034024044 Detent arm cmpl. | Detent arm cmpl. | 1 | $13.63 | Available | 1 |
| 38 | 0021050003 washer DIN 9021 A - 5.3 | washer DIN 9021 A - 5.3 | 1 | $1.99 | Available | 1 |
| 39 | 0025050256S HH collar screw M5x25 TX30 | HH collar screw M5x25 TX30 | 1 | $1.99 | Available | 1 |
