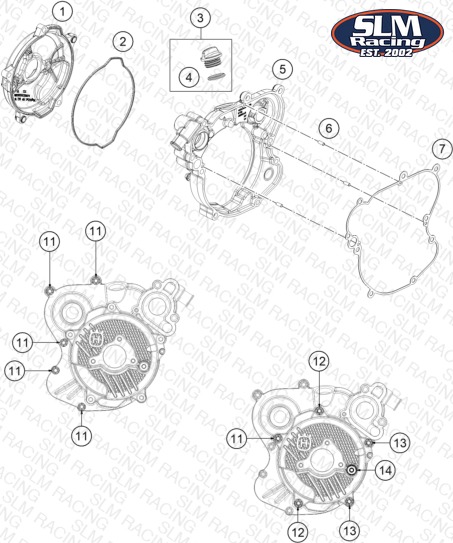

CLUTCH COVER
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A40530626000JA Outer clutch cover | Outer clutch cover | 1 | — | Check availability | |
| 2 | 46230027000 GASKET - CLUTCH OUTER COVER | GASKET - CLUTCH OUTER COVER | 1 | — | Check availability | |
| 3 | 79430020033 Oil filler cap cmpl. M24x3 | Oil filler cap cmpl. M24x3 | 1 | — | Check availability | |
| 4 | 0770191015 O-RING 19,00X3,00 NBR | O-RING 19,00X3,00 NBR | 1 | — | Check availability | |
| 5 | A40530001000 Inner clutch cover | Inner clutch cover | 1 | — | Check availability | |
| 6 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 3 | — | Check availability | |
| 7 | A40530025000 Clutch cover gasket int. | Clutch cover gasket int. | 1 | — | Check availability | |
| 11 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 6 | — | Check availability | |
| 12 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 2 | — | Check availability | |
| 13 | 0025060556 HH collar screw M6x55 TX30 | HH collar screw M6x55 TX30 | 2 | — | Check availability | |
| 14 | 0025060086 HH collar screw M6x8 TX30 | HH collar screw M6x8 TX30 | 1 | — | Check availability | |
| 14 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | — | Check availability |
