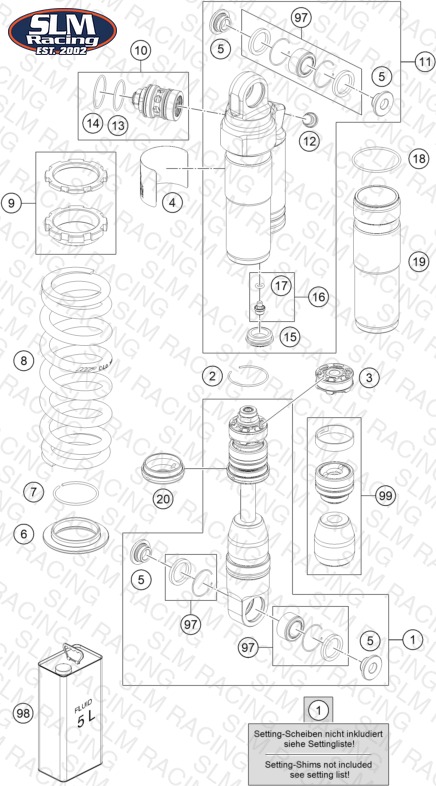

SHOCK ABSORBER DISASSEMBLED
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | S421400000S0101 bottom part cpl. | bottom part cpl. | 1 | — | Check availability | |
| 4 | 52000222 Sticker XACT 65SX | Sticker XACT 65SX | 1 | — | Check availability | |
| 5 | 46180009 Distance bush 10x15/18/24,5x9, | Distance bush 10x15/18/24,5x9, | 4 | — | Check availability | |
| 6 | S82900001300001 Spring retainer 41,15x61,7x12. | Spring retainer 41,15x61,7x12. | 1 | — | Check availability | |
| 7 | S23900000300000 round wire circlip 42.6x2 | round wire circlip 42.6x2 | 1 | — | Check availability | |
| 8 | S81980001000028 Mainspring (47) 40-190.0 shock | Mainspring (47) 40-190.0 shock | — | — | Check availability | |
| 8 | S81980001100028 Mainspring (47) 45-190.0 shock | Mainspring (47) 45-190.0 shock | 1 | — | Check availability | |
| 8 | S81980001200028 Mainspring (47) 50-190.0 shock | Mainspring (47) 50-190.0 shock | — | — | Check availability | |
| 10 | 50181101S60 compression cpl. | compression cpl. | 1 | — | Check availability | |
| 9 | 36120418S ADJUSTING NUT CPL. | ADJUSTING NUT CPL. | 1 | — | Check availability | |
| 11 | S453600001S0001 Shock 65 SX/TC/MC Top | Shock 65 SX/TC/MC Top | 1 | — | Check availability | |
| 12 | 50180095 HS cylinder-head screw R1/8 l8 | HS cylinder-head screw R1/8 l8 | 1 | — | Check availability | |
| 14 | 50180217 O-ring 27x1,5 Viton70 green IS | O-ring 27x1,5 Viton70 green IS | 1 | — | Check availability | |
| 15 | 46811208 Rubber cap do not open 22x5,5 | Rubber cap do not open 22x5,5 | 1 | — | Check availability | |
| 16 | 36120151S PLUG SCREW M5X6 CPL. | PLUG SCREW M5X6 CPL. | 1 | — | Check availability | View Details |
| 17 | 46810893 O-ring 5,28x1,78 NBR70 black | O-ring 5,28x1,78 NBR70 black | 1 | — | Check availability | View Details |
| 97 | R12012T Ball joint bearing kit top 12m | Ball joint bearing kit top 12m | 2 | — | Check availability | |
| 98 | 50180751S1 SHOCK ABSORBER FLUID 5 LT | SHOCK ABSORBER FLUID 5 LT | 1 | — | Check availability | |
| 99 | RP10057T Repair kit shock absorber 65 S | Repair kit shock absorber 65 S | 1 | — | Check availability | |
| 8 | S81980000900028 Mainspring (47) 35-190.0 shock | Mainspring (47) 35-190.0 shock | — | — | Check availability | |
| 8 | S81980000800028 Mainspring (47) 30-190.0 shock | Mainspring (47) 30-190.0 shock | — | — | Check availability | |
| 13 | 50180218 O-ring 25x1,5 Viton70 | O-ring 25x1,5 Viton70 | 1 | — | Check availability | |
| 2 | 40540015 Round-wire snap ring 38x1,5 | Round-wire snap ring 38x1,5 | 1 | — | Check availability | |
| 3 | 36120071 Piston 10,5x35,6x13,65 3,5/5,5 | Piston 10,5x35,6x13,65 3,5/5,5 | 1 | — | Check availability | |
| 19 | S46360000000000 Rohr 36x138 | Rohr 36x138 | 1 | — | Check availability | |
| 20 | 36140001 Cover 36,12x5,5 h13 red | Cover 36,12x5,5 h13 red | 1 | — | Check availability | |
| 18 | 48600819 O-ring 42x2 NBR70 | O-ring 42x2 NBR70 | 1 | — | Check availability |
