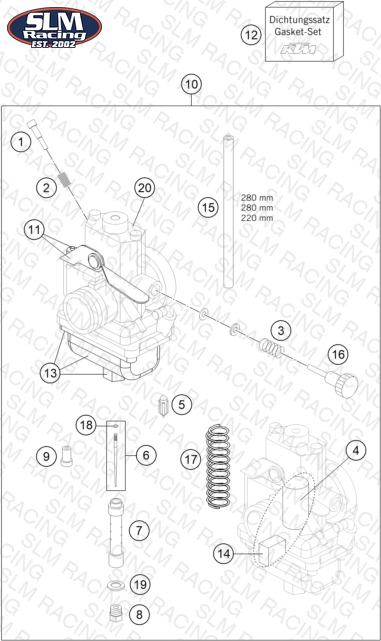

CARBURETOR
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 46131017000 ADJUSTING SCREW MIKUNI | ADJUSTING SCREW MIKUNI | 1 | — | Check availability | |
| 2 | 45031015200 SPRING IDLE ADJUST SCREW | SPRING IDLE ADJUST SCREW | 1 | — | Check availability | |
| 3 | 45031015000 SPRING | SPRING | 1 | — | Check availability | View Details |
| 4 | 46231035000 THROTTLE VALVE MIKUNI 2.5 | THROTTLE VALVE MIKUNI 2.5 | 1 | — | Check availability | |
| 5 | 46231020100 NEEDLE VALVE CPL. 2.5 | NEEDLE VALVE CPL. 2.5 | 1 | — | Check availability | |
| 6 | 46231034000 JET NEEDLE MIKUNI 5IPL43-2 | JET NEEDLE MIKUNI 5IPL43-2 | 1 | — | Check availability | |
| 6 | 46231134000 Jet needle "5N17" | Jet needle "5N17" | — | — | Check availability | |
| 7 | 46231034100 MAIN JET HOLDER MIKUNI | MAIN JET HOLDER MIKUNI | 1 | — | Check availability | |
| 8 | 45031023195 MAIN JET 195 | MAIN JET 195 | — | — | Check availability | |
| 8 | 45031023200 MAIN JET 200 | MAIN JET 200 | — | — | Check availability | |
| 8 | 45031023205 MAIN JET 205 | MAIN JET 205 | — | — | Check availability | |
| 8 | 45031023210 MAIN JET 210 | MAIN JET 210 | — | — | Check availability | |
| 8 | 45031023215 MAIN JET 215 | MAIN JET 215 | — | — | Check availability | |
| 8 | 45031023220 MAIN JET 220 | MAIN JET 220 | — | — | Check availability | |
| 8 | 45031023225 MAIN JET 225 | MAIN JET 225 | — | — | Check availability | |
| 8 | 45031023230 MAIN JET | MAIN JET | — | — | Check availability | |
| 9 | 45031007010 IDLE JET 10 MIKUNI | IDLE JET 10 MIKUNI | — | — | Check availability | |
| 9 | 45031007015 IDLING JET 15 MIKUNI | IDLING JET 15 MIKUNI | — | — | Check availability | |
| 9 | 45031007020 IDLING JET 20 MIKUNI | IDLING JET 20 MIKUNI | — | — | Check availability | |
| 9 | 45031007025 IDLING JET 25 MIKUNI | IDLING JET 25 MIKUNI | — | — | Check availability | |
| 9 | 45031007000 IDLING JET | IDLING JET | — | — | Check availability | |
| 10 | 46231001244 Carburetor 65SX/TC | Carburetor 65SX/TC | 1 | — | Check availability | View Details |
| 11 | 46231048044 CHOKE + LEVER CPL. | CHOKE + LEVER CPL. | 1 | — | Check availability | |
| 12 | 46231099000 GASKET SET MIKUNI | GASKET SET MIKUNI | 1 | — | Check availability | |
| 13 | 46231011044 FLOAT BODY + SCREW + GASKET | FLOAT BODY + SCREW + GASKET | 1 | — | Check availability | |
| 14 | 46231009044 FLOAT + PIN | FLOAT + PIN | 1 | — | Check availability | |
| 15 | 52031137001 PVC-HOSE 3X5MM | PVC-HOSE 3X5MM | 1 | — | Check availability | |
| 16 | 46231094000 ADJUSTER SCREW | ADJUSTER SCREW | 1 | — | Check availability | |
| 17 | 46231035050 THROTTLE VALVE SPRING | THROTTLE VALVE SPRING | 1 | — | Check availability | |
| 18 | 46231034060 Lock ring | Lock ring | 1 | — | Check availability | |
| 19 | 46231034050 Washer | Washer | 1 | — | Check availability | |
| 20 | A40531001015 Carburetor cover | Carburetor cover | 1 | — | Check availability |
