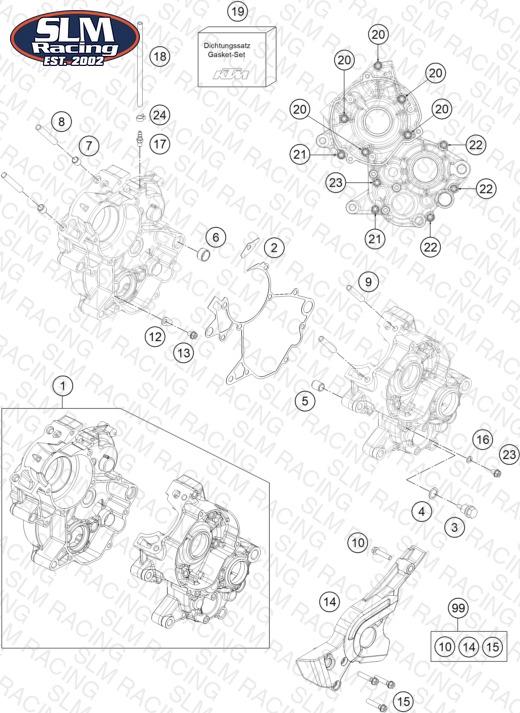

ENGINE CASE
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 46230000244 ENGINE CASE CPL. + BEARING | ENGINE CASE CPL. + BEARING | 1 | $926.19 | Available | 1 |
| 2 | 46230039000 ENGINE CASE GASKET | ENGINE CASE GASKET | 1 | $19.46 | Available | 1 |
| 3 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | $13.30 | Available | 1 |
| 4 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 5 | 46230024000 DOWEL 12X9X14,5 | DOWEL 12X9X14,5 | 1 | $7.58 | Available | 1 |
| 6 | 46230123000 DOWEL 17/12.1/9.5 | DOWEL 17/12.1/9.5 | 1 | $7.58 | Available | 1 |
| 7 | 46230023000 DOWEL 10X8,2X10 | DOWEL 10X8,2X10 | 2 | $6.15 | Available | 2 |
| 8 | 0835080355 STUD DIN0835-M 8X35 10.9 | STUD DIN0835-M 8X35 10.9 | 2 | $3.99 | Available | 2 |
| 9 | 46030043000 STUD M8X41 | STUD M8X41 | 2 | $6.81 | Available | 2 |
| 12 | 54634049000 RETAINING PLATE | RETAINING PLATE | 1 | $4.99 | Available | 1 |
| 13 | 0025060106S Hex collar screw M6x10 ISA30 S | Hex collar screw M6x10 ISA30 S | 1 | $1.99 | Available | 1 |
| 14 | 46230060000 CHAIN SPROCKET GUARD | CHAIN SPROCKET GUARD | 1 | $27.71 | Available | 1 |
| 15 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 3 | $3.99 | Available | 3 |
| 16 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | $2.99 | Available | 1 |
| 17 | 58336020190 VACUUM CONECTION M6/3MM '97 | VACUUM CONECTION M6/3MM '97 | 1 | $6.15 | Available | 1 |
| 18 | 31007007101 PVC-HOSE 4X6MM | PVC-HOSE 4X6MM | 1 | $4.99 | Available | 1 |
| 19 | 46230099000 GASKET SET 65 SX 2009 | GASKET SET 65 SX 2009 | 1 | $187.43 | Available | 1 |
| 20 | 0025060556 HH collar screw M6x55 TX30 | HH collar screw M6x55 TX30 | 5 | $3.99 | Available | 5 |
| 21 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 2 | $3.99 | Available | 2 |
| 23 | 0025060086 HH collar screw M6x8 TX30 | HH collar screw M6x8 TX30 | 1 | $2.99 | Available | 1 |
| 24 | 45230089000 YDNAC-CLAMP 10068 (6,8MM) | YDNAC-CLAMP 10068 (6,8MM) | 1 | $1.99 | Available | 1 |
| 99 | 46204060010 SPROCKET COVER KIT | SPROCKET COVER KIT | 1 | $34.31 | Available | 1 |
| 10 | 0025080356 HH collar screw M8x35 TX40 | HH collar screw M8x35 TX40 | 1 | $4.83 | Available | 1 |
