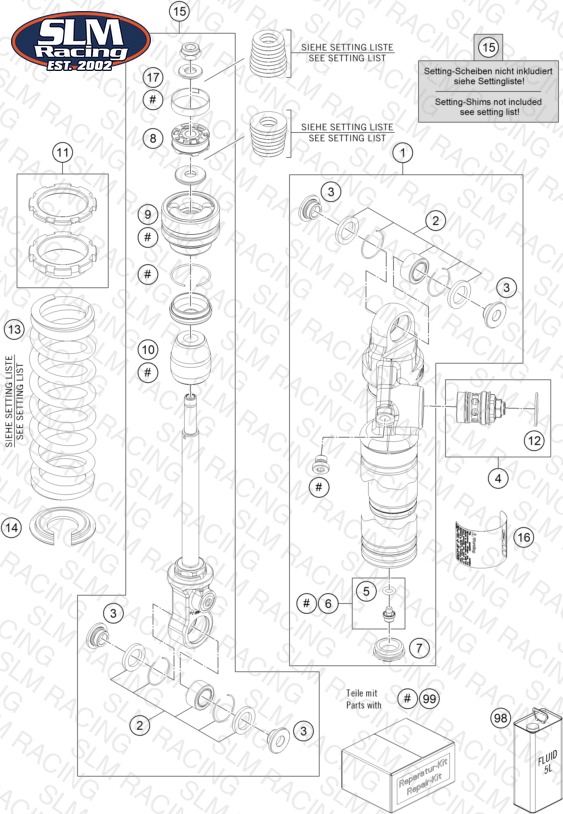

SHOCK ABSORBER DISASSEMBLED
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 36120846S2 Shock housing cpl. | Shock housing cpl. | 1 | — | Check availability | |
| 2 | R12012 Ball joint bearing kit top 12m | Ball joint bearing kit top 12m | 2 | — | Check availability | View Details |
| 3 | 46180009 Distance bush 10x15/18/24,5x9, | Distance bush 10x15/18/24,5x9, | 4 | — | Check availability | |
| 4 | 50181101S39 Compression cpl. | Compression cpl. | 1 | — | Check availability | |
| 5 | 46810893 O-ring 5,28x1,78 NBR70 black | O-ring 5,28x1,78 NBR70 black | 1 | — | Check availability | View Details |
| 6 | 36120151S PLUG SCREW M5X6 CPL. | PLUG SCREW M5X6 CPL. | 1 | — | Check availability | View Details |
| 7 | 46811208 Rubber cap do not open 22x5,5 | Rubber cap do not open 22x5,5 | 1 | — | Check availability | |
| 8 | 36120071 Piston 10,5x35,6x13,65 3,5/5,5 | Piston 10,5x35,6x13,65 3,5/5,5 | 1 | — | Check availability | |
| 9 | 36120787S Sealholder 36x26,6 cpl. | Sealholder 36x26,6 cpl. | 1 | — | Check availability | |
| 10 | 36120799 Rubber pad 13,9x38x43 black | Rubber pad 13,9x38x43 black | 1 | — | Check availability | |
| 11 | 36120418S ADJUSTING NUT CPL. | ADJUSTING NUT CPL. | 1 | — | Check availability | |
| 12 | 50180217 O-ring 27x1,5 Viton70 green IS | O-ring 27x1,5 Viton70 green IS | 1 | — | Check availability | |
| 13 | 93010224S SHOCK SPRING 35N/MM - 210MM | SHOCK SPRING 35N/MM - 210MM | — | — | Check availability | |
| 13 | 93010225S SHOCK SPRING 40N/MM - 210MM | SHOCK SPRING 40N/MM - 210MM | 1 | — | Check availability | |
| 13 | 93010226S SHOCK SPRING 45N/MM - 210MM | SHOCK SPRING 45N/MM - 210MM | — | — | Check availability | |
| 14 | 36120386 Spring retainer 27x57x2 | Spring retainer 27x57x2 | 1 | — | Check availability | |
| 15 | 36120781S18 Bottom part cpl. | Bottom part cpl. | 1 | — | Check availability | |
| 16 | 52000222 Sticker XACT 65SX | Sticker XACT 65SX | 1 | — | Check availability | |
| 17 | 36120040 Pistonring 33x35x8 | Pistonring 33x35x8 | 1 | — | Check availability | |
| 98 | 50180751S1 SHOCK ABSORBER FLUID 5 LT | SHOCK ABSORBER FLUID 5 LT | 1 | — | Check availability | |
| 99 | R308 REPAIR-KIT | REPAIR-KIT | 1 | — | Check availability | View Details |
