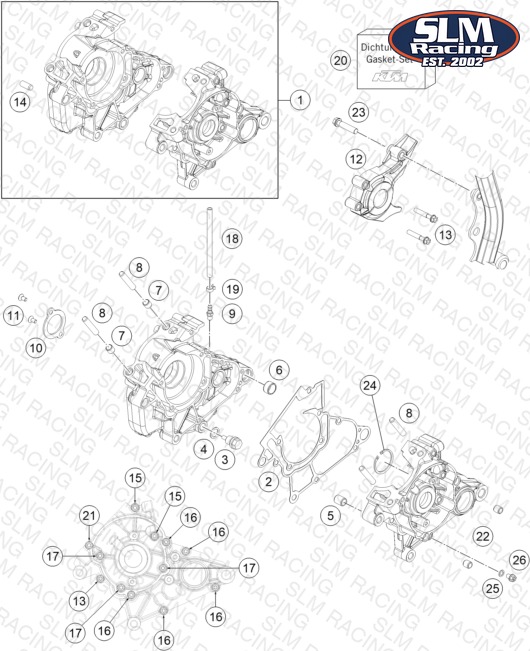

ENGINE CASE
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 45230000333 ENGINE CASE CPL. 50SX | ENGINE CASE CPL. 50SX | 1 | $533.60 | Available | 1 |
| 2 | 45230039000 ENGINE CASE GASKET | ENGINE CASE GASKET | 1 | $18.47 | Available | 1 |
| 3 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | $13.30 | Available | 1 |
| 4 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 5 | 46230024000 DOWEL 12X9X14,5 | DOWEL 12X9X14,5 | 2 | $7.58 | Available | 2 |
| 6 | 58330023000 DOWEL 17 X 14 X 9,5 | DOWEL 17 X 14 X 9,5 | 1 | $6.48 | Available | 1 |
| 7 | 46230023000 DOWEL 10X8,2X10 | DOWEL 10X8,2X10 | 2 | $6.15 | Available | 2 |
| 8 | 46030043000 STUD M8X41 | STUD M8X41 | 4 | $6.81 | Available | 4 |
| 9 | 58336020190 VACUUM CONECTION M6/3MM '97 | VACUUM CONECTION M6/3MM '97 | 1 | $6.15 | Available | 1 |
| 10 | 45230017000 BEARING BRACKET | BEARING BRACKET | 1 | $2.99 | Available | 1 |
| 11 | 0019050106S hex lobe countersunc screw M5x | hex lobe countersunc screw M5x | 2 | $2.99 | Available | 2 |
| 12 | 45230060000 CHAIN GUARD | CHAIN GUARD | 1 | $29.25 | Available | 1 |
| 13 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 3 | $3.99 | Available | 3 |
| 14 | 0325080200 CYLINDER STUD DIN6325 8X20 M6 | CYLINDER STUD DIN6325 8X20 M6 | 1 | $2.99 | Available | 1 |
| 15 | 0025060556 HH collar screw M6x55 TX30 | HH collar screw M6x55 TX30 | 2 | $3.99 | Available | 2 |
| 17 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 3 | $3.99 | Available | 3 |
| 18 | 31007007101 PVC-HOSE 4X6MM | PVC-HOSE 4X6MM | — | $4.99 | Available | 1 |
| 19 | 45230089000 YDNAC-CLAMP 10068 (6,8MM) | YDNAC-CLAMP 10068 (6,8MM) | 1 | $1.99 | Available | 1 |
| 20 | 45230099000 GASKET SET 50 SX 2009 | GASKET SET 50 SX 2009 | 1 | $148.71 | Available | 1 |
| 21 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 1 | $3.99 | Available | 1 |
| 22 | 45230024000 DOWEL 9,8X7X5.5 | DOWEL 9,8X7X5.5 | 2 | $3.99 | Available | 2 |
| 23 | 0025080306 HH collar screw M8x30 | HH collar screw M8x30 | 1 | $3.62 | Available | 1 |
| 24 | 0472035150 CIRCLIP DIN0472-35X1,5 | CIRCLIP DIN0472-35X1,5 | 1 | $2.99 | Available | 1 |
| 25 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | $2.99 | Available | 1 |
| 26 | 0025060086 HH collar screw M6x8 TX30 | HH collar screw M6x8 TX30 | 1 | $2.99 | Available | 1 |
