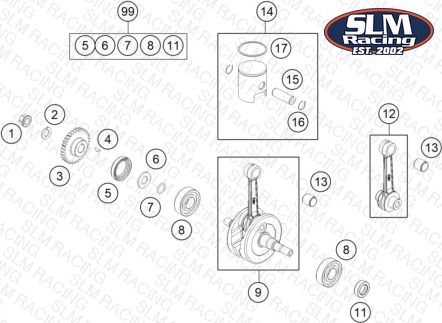

CRANKSHAFT, PISTON
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 | HH COLLAR NUT M10X1,25 WS=13 | 1 | $2.99 | Available | 1 |
| 2 | 45230072000 LOCKING RING VSK 10 | LOCKING RING VSK 10 | 1 | $2.99 | Available | 1 |
| 3 | 45232023033 PRIMARY DRIVE 33T | PRIMARY DRIVE 33T | 1 | $153.00 | Available | 1 |
| 4 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 | WOODRUFF KEY DIN6888-3X3,7 | 1 | $2.99 | Available | 1 |
| 5 | 0760263561 SHAFT SEAL RING 26X35X6BSL NB | SHAFT SEAL RING 26X35X6BSL NB | 1 | $7.36 | Available | 1 |
| 6 | 45230016000 SPACER WASHER - CRANKSHAFT | SPACER WASHER - CRANKSHAFT | 1 | $6.26 | Available | 1 |
| 7 | 0770120020 O-RING 12,00X2,00 NBR 70 | O-RING 12,00X2,00 NBR 70 | 1 | $2.99 | Available | 1 |
| 8 | 0625062035 BALL BEARING 6203 JR2 C3 | BALL BEARING 6203 JR2 C3 | 2 | $17.04 | Available | 2 |
| 9 | 45230018000 CRANKSHAFT CPL. | CRANKSHAFT CPL. | 1 | $505.22 | Available | 1 |
| 11 | 0760152472 SHAFT SEAL RING 15X24X7 A-DUO | SHAFT SEAL RING 15X24X7 A-DUO | 1 | $17.70 | Available | 1 |
| 12 | 45230015000 CONROD REPAIR KIT 09 | CONROD REPAIR KIT 09 | 1 | $323.61 | Available | 1 |
| 13 | 45130034000 NEEDLE BEAR.PISTONPIN 12X15X15 | NEEDLE BEAR.PISTONPIN 12X15X15 | 1 | $18.14 | Available | 1 |
| 14 | 45230007100 I Piston cpl. I | Piston cpl. I | 1 | $146.18 | Available | 1 |
| 14 | 45230007100 II Piston cpl. II | Piston cpl. II | 1 | $146.18 | Available | 1 |
| 15 | 45230033100 Piston pin | Piston pin | 1 | $10.99 | Available | 1 |
| 16 | 45230074000 CIRCLIP 09 | CIRCLIP 09 | 2 | $2.99 | Available | 2 |
| 17 | 45230030000 PISTONRING 09 | PISTONRING 09 | 1 | $64.78 | Available | 1 |
| 99 | 00050002313 CRANKSHAFT REP. KIT 50 SX 13 | CRANKSHAFT REP. KIT 50 SX 13 | — | $41.35 | Available | 1 |
