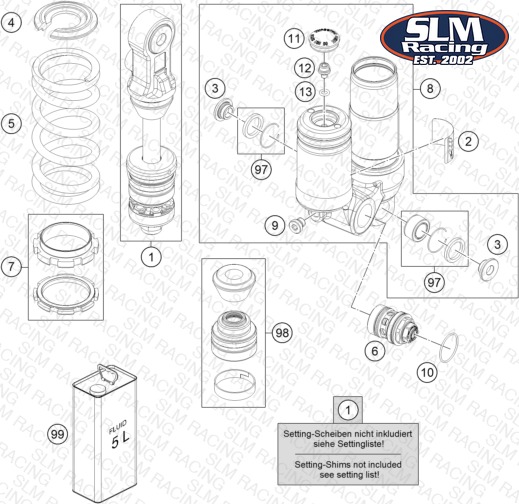

SHOCK ABSORBER DISASSEMBLED
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 36120781S16 AXLECLAMP PART WITH PISTON ROD | AXLECLAMP PART WITH PISTON ROD | 1 | — | Check availability | |
| 2 | 52000173 Sticker WP warning | Sticker WP warning | 1 | — | Check availability | |
| 3 | 46180009 Distance bush 10x15/18/24,5x9, | Distance bush 10x15/18/24,5x9, | 4 | — | Check availability | |
| 4 | 36120386 Spring retainer 27x57x2 | Spring retainer 27x57x2 | 1 | — | Check availability | |
| 5 | 93010217S SHOCK SPRING 35N/MM - 130MM WH | SHOCK SPRING 35N/MM - 130MM WH | 1 | — | Check availability | |
| 5 | 93010218S SHOCK SPRING 30N/MM - 130MM WH | SHOCK SPRING 30N/MM - 130MM WH | — | — | Check availability | |
| 5 | 93010219S SHOCK SPRING 40N/MM - 130MM WH | SHOCK SPRING 40N/MM - 130MM WH | — | — | Check availability | |
| 6 | 50181101S7 Compression cpl. | Compression cpl. | 1 | — | Check availability | |
| 7 | 36120418S ADJUSTING NUT CPL. | ADJUSTING NUT CPL. | 1 | — | Check availability | |
| 8 | 36120858S1 MONOSHOCK CASE WITH PIPE CPL. | MONOSHOCK CASE WITH PIPE CPL. | 1 | — | Check availability | |
| 9 | 50180095 HS cylinder-head screw R1/8 l8 | HS cylinder-head screw R1/8 l8 | 1 | — | Check availability | |
| 10 | 50180217 O-ring 27x1,5 Viton70 green IS | O-ring 27x1,5 Viton70 green IS | 1 | — | Check availability | |
| 11 | 46811208 Rubber cap do not open 22x5,5 | Rubber cap do not open 22x5,5 | 1 | — | Check availability | |
| 12 | 36120151 HS lock screw M5x6 | HS lock screw M5x6 | 1 | — | Check availability | |
| 13 | 46810893 O-ring 5,28x1,78 NBR70 black | O-ring 5,28x1,78 NBR70 black | 1 | — | Check availability | View Details |
| 97 | R12012 Ball joint bearing kit top 12m | Ball joint bearing kit top 12m | 2 | — | Check availability | View Details |
| 98 | RP10003 REP. KIT MONOSHOCK MINI 17 | REP. KIT MONOSHOCK MINI 17 | 1 | — | Check availability | View Details |
| 99 | 50180751S1 SHOCK ABSORBER FLUID 5 LT | SHOCK ABSORBER FLUID 5 LT | 1 | — | Check availability |
