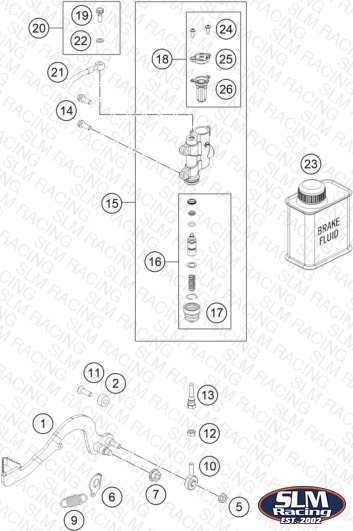

REAR BRAKE CONTROL
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 45213050000 FOOT BRAKE LEVER | FOOT BRAKE LEVER | 1 | $113.49 | Backorder — Restocking | 1 |
| 2 | 45203063000 BRAKE LEVER STOP | BRAKE LEVER STOP | 1 | $32.55 | Available | 1 |
| 5 | 56509064100 Self locking nut M6 - 10 | Self locking nut M6 - 10 | 1 | $2.99 | Available | 1 |
| 6 | 45213053000 LOCK WASHER 50 SX | LOCK WASHER 50 SX | 1 | $7.58 | Available | 1 |
| 7 | 54310086200 Self locking nut M8 10.9 | Self locking nut M8 10.9 | 1 | $3.99 | Available | 1 |
| 9 | 54603062200 Return spring for brake lever | Return spring for brake lever | 1 | $7.69 | Available | 1 |
| 10 | 46213055000 Heim joint KA6 INNOX | Heim joint KA6 INNOX | 1 | $51.36 | Available | 1 |
| 11 | 0991060202 Flat head screw DIN7991 M6X20 | Flat head screw DIN7991 M6X20 | 1 | $2.99 | Available | 1 |
| 12 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 1 | $1.99 | Available | 1 |
| 13 | 46213056000 PUSH ROD | PUSH ROD | 1 | $14.84 | Available | 1 |
| 14 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 2 | $3.99 | Available | 2 |
| 15 | 47213060044 Complete master cylinder | Complete master cylinder | 1 | $233.52 | Available | 1 |
| 16 | 47013061100 Rep.set piston, rear D=12 2004 | Rep.set piston, rear D=12 2004 | 1 | $88.76 | Available | 1 |
| 17 | 47213063000 Dust cover | Dust cover | 1 | $6.15 | Available | 1 |
| 18 | 47213062000 Membrane kit | Membrane kit | 1 | $22.54 | Backorder — Restocking | 1 |
| 19 | 47013025000 Hollow screw, brake cylinder 0 | Hollow screw, brake cylinder 0 | 1 | $12.75 | Available | 1 |
| 20 | 47213025000 Hose screws kit | Hose screws kit | 1 | $22.21 | Backorder — Restocking | 1 |
| 21 | A40013070000 Brake line, rear | Brake line, rear | 1 | $112.52 | Backorder — Restocking | 1 |
| 22 | 0770080019 O-RING 8,00X1,00 FORMULA | O-RING 8,00X1,00 FORMULA | 2 | $2.99 | Available | 2 |
| 23 | 00062030000 Brake fluid DOT5.1 0,25L | Brake fluid DOT5.1 0,25L | 1 | $13.99 | Available | 1 |
| 24 | 0912040103 AH.SCREW DIN0912-M 4X10 | AH.SCREW DIN0912-M 4X10 | 2 | $2.99 | Available | 2 |
| 25 | 47013062000 CYLINDER COVER REAR 85 SX 03 | CYLINDER COVER REAR 85 SX 03 | 1 | $10.44 | Available | 1 |
| 26 | 47013063000 GASKET CYLINDER COVER REAR 03 | GASKET CYLINDER COVER REAR 03 | 1 | $12.64 | Available | 1 |
