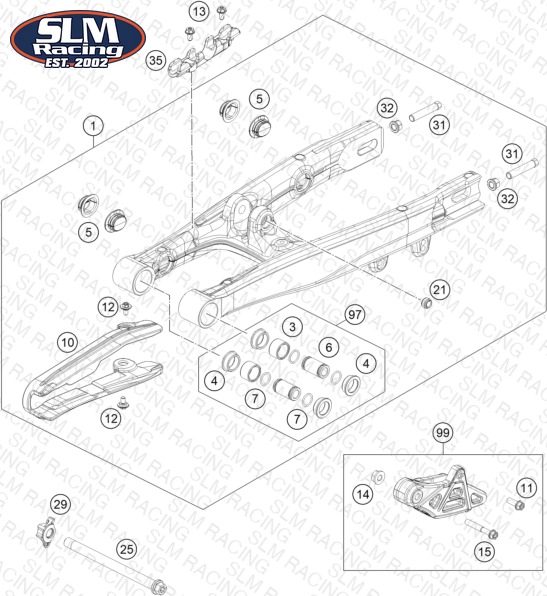

SWING ARM
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 45404030044 Schwing arm cpl | Schwing arm cpl | 1 | $497.96 | Available | 1 |
| 3 | 54603097000 Needle bushing HK 2016 / 20x26 | Needle bushing HK 2016 / 20x26 | 2 | $17.70 | Available | 2 |
| 4 | 46004030070 Spacer bushing 20X26X30X9.7 | Spacer bushing 20X26X30X9.7 | 4 | $3.99 | Available | 4 |
| 5 | 45404041000 Locking cap, swingarm | Locking cap, swingarm | 4 | $2.99 | Available | 4 |
| 6 | 46004030071 Bearing bush 12x20x36.5 | Bearing bush 12x20x36.5 | 2 | $21.00 | Available | 2 |
| 7 | 0770160021 O-ring 16x2 Viton 75 | O-ring 16x2 Viton 75 | 4 | $3.99 | Available | 4 |
| 10 | 45404066000 Chain sliding protection | Chain sliding protection | 1 | $12.20 | Available | 1 |
| 11 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 1 | $3.99 | Available | 1 |
| 12 | 83008000012 special screw M6x12x3 | special screw M6x12x3 | 2 | $3.99 | Available | 2 |
| 13 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K | EJOT SPIRAL SCREW SF M5X10-K | 2 | $2.99 | Available | 2 |
| 15 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 1 | $3.99 | Available | 1 |
| 21 | 69004095000 ADAPTOR NUT M10 | ADAPTOR NUT M10 | 1 | $6.15 | Available | 1 |
| 25 | 45404037000 Swingarm pivot | Swingarm pivot | 1 | $12.86 | Available | 1 |
| 29 | 45404038000 Nut with anti-rotation lock | Nut with anti-rotation lock | 1 | $29.25 | Available | 1 |
| 31 | 50203030090 HH SCREW M8X40 WS=10 | HH SCREW M8X40 WS=10 | 2 | $4.99 | Available | 2 |
| 32 | 46030045000 flanged nut M8 WS10 | flanged nut M8 WS10 | 2 | $9.23 | Available | 2 |
| 35 | 45413047000 Brake line guide | Brake line guide | 1 | $6.70 | Available | 1 |
| 97 | 45204230010 SWINGARM REP. KIT 50/65 SX | SWINGARM REP. KIT 50/65 SX | 1 | $77.43 | Available | 1 |
| 99 | 46307066010 CHAIN GUIDE KIT REAR 2016 | CHAIN GUIDE KIT REAR 2016 | 1 | $45.42 | Available | 1 |
| 14 | 56509064100 Self locking nut M6 - 10 | Self locking nut M6 - 10 | 1 | $2.99 | Available | 1 |
