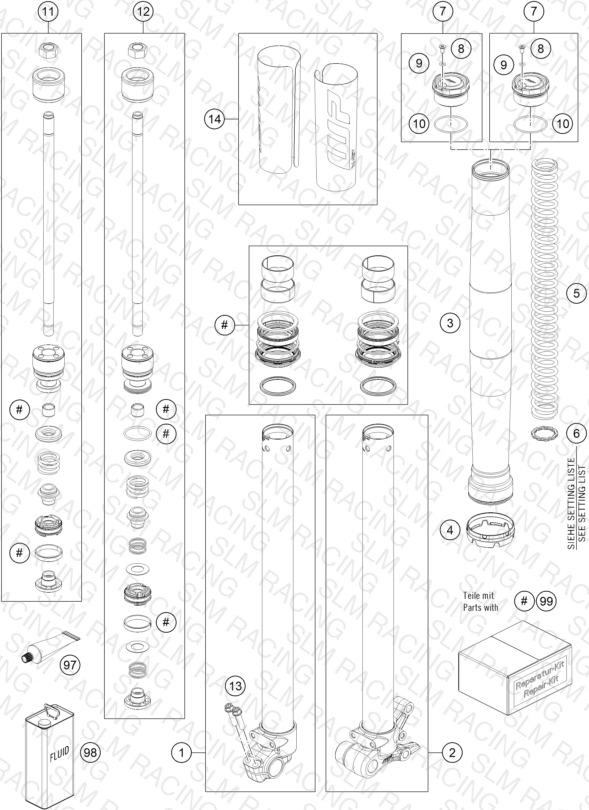

FRONT FORK DISASSEMBLED
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 3 | 35480585 Fork outer tube 36x425 dt42 db | Fork outer tube 36x425 dt42 db | 2 | $196.12 | Available | 2 |
| 4 | 35480623 Fork protection ring 48,4mm | Fork protection ring 48,4mm | 2 | $2.41 | Available | 2 |
| 5 | S80990001100000 main spring (29.0) 4.0-330 for | main spring (29.0) 4.0-330 for | 1 | $698.38 | Available | 1 |
| 6 | 35480497 Washer 22x30x2,5 | Washer 22x30x2,5 | — | $1.20 | Available | 1 |
| 7 | 35480602S Screw cap M38x1,5 cpl. | Screw cap M38x1,5 cpl. | 2 | $61.81 | Available | 2 |
| 8 | 00700007 ISA countersunk head screw M4x | ISA countersunk head screw M4x | 2 | $1.20 | Available | 2 |
| 9 | 50180222 O-ring 4x1,5 NBR70 | O-ring 4x1,5 NBR70 | 2 | $1.20 | Available | 2 |
| 10 | 46180581 O-ring 35x1,5 NBR70 yellow | O-ring 35x1,5 NBR70 yellow | 2 | $2.41 | Available | 2 |
| 13 | 00250610 HH collar screw M6x25 | HH collar screw M6x25 | 2 | — | Obsolete | View Details |
| 98 | 48601166S1 Fork Fluid Viscosity 4.0 5L | Fork Fluid Viscosity 4.0 5L | — | $175.99 | Available | 1 |
| 97 | T14034 Fuchs grease IPR (250g) | Fuchs grease IPR (250g) | — | $40.69 | Available | 1 |
| 99 | RP10028 Repair kit 35mm black 50SX/TC | Repair kit 35mm black 50SX/TC | — | $92.39 | Available | 1 |
| 14 | 52000220SET Sticker set XACT 140x141 | Sticker set XACT 140x141 | 1 | $36.62 | Available | 1 |
| 1 | S443500003S0200 Axle-clamp right cpl. E3 MY202 | Axle-clamp right cpl. E3 MY202 | 1 | $364.75 | Available | 1 |
| 2 | S443500000S0200 Axle-clamp left cpl. E3 MY2023 | Axle-clamp left cpl. E3 MY2023 | 1 | $381.91 | Available | 1 |
| 11 | S501200015S0200 Piston rod ri. with seal suppo | Piston rod ri. with seal suppo | 1 | $155.86 | Available | 1 |
| 12 | S501200015S0300 Piston rod le. with main jet c | Piston rod le. with main jet c | 1 | $137.38 | Available | 1 |
