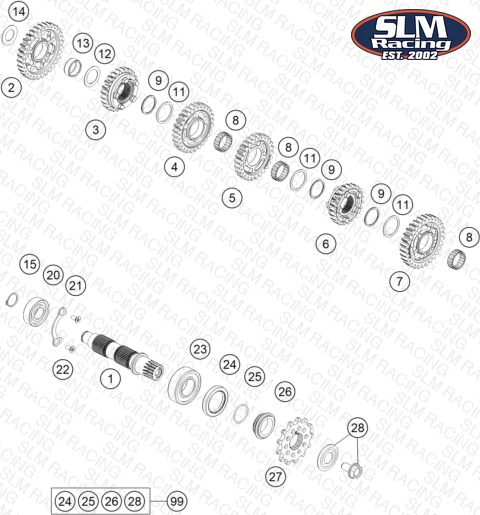

TRANSMISSION II - COUNTERSHAFT
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 76733510000 output shaft | output shaft | 1 | — | Out of Stock | Notify Me |
| 2 | 76733511000 idler gear 1st | idler gear 1st | 1 | — | Out of Stock | Notify Me |
| 3 | 76733515000 sliding gear 5 th | sliding gear 5 th | 1 | — | Out of Stock | Notify Me |
| 4 | 76733513000 idler gear 3rd | idler gear 3rd | 1 | — | Out of Stock | Notify Me |
| 5 | 76733514000 idler gear 4th | idler gear 4th | 1 | — | Out of Stock | Notify Me |
| 6 | 76733516000 sliding gear 6 th | sliding gear 6 th | 1 | — | Out of Stock | Notify Me |
| 7 | 76733512000 idler gear 2nd | idler gear 2nd | 1 | — | Out of Stock | Notify Me |
| 8 | 0405242810 NEEDLE BEARING K24x28x10 split | NEEDLE BEARING K24x28x10 split | 3 | — | Out of Stock | Notify Me |
| 9 | 0471026000 circlip d26 | circlip d26 | 3 | $4.99 | Available | 3 |
| 11 | 76733033000 Stop disc 27x33x1 | Stop disc 27x33x1 | 3 | — | Out of Stock | Notify Me |
| 12 | 76733032000 STOP DISC 22,2x32x0,8 | STOP DISC 22,2x32x0,8 | 1 | — | Out of Stock | Notify Me |
| 13 | 0405222610 NEEDLE BEARING K 22X26X10 A | NEEDLE BEARING K 22X26X10 A | 1 | $7.91 | Available | 1 |
| 14 | 56033030000 STOP DISC 17,2X30X1 | STOP DISC 17,2X30X1 | 1 | $4.99 | Available | 1 |
| 15 | 0471170015 CIRCLIP DIN 0471-17X1, 5 | CIRCLIP DIN 0471-17X1, 5 | 1 | $1.99 | Available | 1 |
| 20 | 0625062035 BALL BEARING 6203 JR2 C3 | BALL BEARING 6203 JR2 C3 | 1 | $17.04 | Available | 1 |
| 21 | 78033132000 TAB WASHER BEARING COUNT.SHAFT | TAB WASHER BEARING COUNT.SHAFT | 1 | $6.15 | Available | 1 |
| 22 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 | INT. TORX FLAT HEAD M5X12 T25 | 2 | $2.99 | Available | 2 |
| 23 | 49030023000 cylindrical roller bearing NJ2 | cylindrical roller bearing NJ2 | 1 | $87.55 | Backorder — Restocking | 1 |
| 24 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR | SHAFT SEAL RING 32X45X7 BSLNBR | 1 | $6.15 | Available | 1 |
| 25 | 0770020220 O-RING 25,12X1,78 NBR70 | O-RING 25,12X1,78 NBR70 | 1 | $3.99 | Available | 1 |
| 26 | 78133014000 SPACER SLEEVE COUNTER | SPACER SLEEVE COUNTER | 1 | $33.43 | Available | 1 |
| 27 | A46033029013 Front sprocket 13 teeth | Front sprocket 13 teeth | — | $36.40 | Available | 1 |
| 27 | A46033029014 Front sprocket 14 teeth | Front sprocket 14 teeth | 1 | $36.40 | Available | 1 |
| 28 | 59033034044 SCREW 10.9+SPRING WASHER | SCREW 10.9+SPRING WASHER | 1 | $9.23 | Available | 1 |
| 99 | 00050000941 COUNTER SHAFT REP.KIT 4 STROKE | COUNTER SHAFT REP.KIT 4 STROKE | — | $61.04 | Available | 1 |
