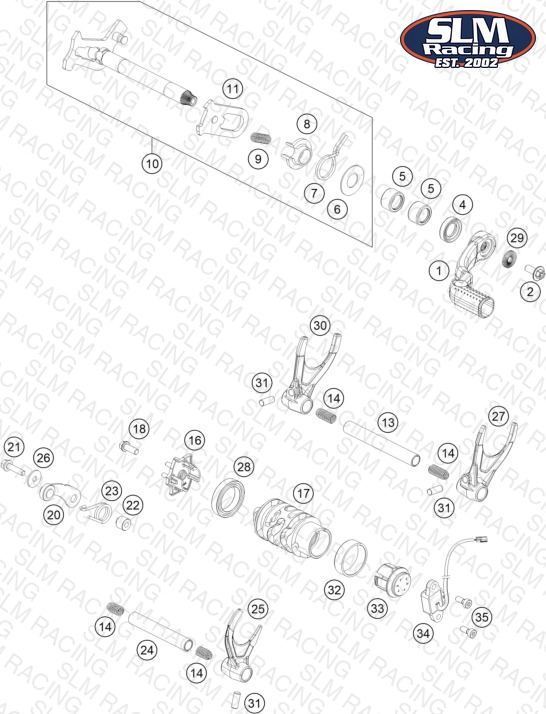

SHIFTING MECHANISM
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79434031100 SHIFT LEVER CPL. | SHIFT LEVER CPL. | 1 | $116.92 | Available | 1 |
| 2 | 0024060156S HH collar screw M6x15 TX30 | HH collar screw M6x15 TX30 | 1 | $2.99 | Available | 1 |
| 4 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | $10.88 | Available | 1 |
| 5 | 54632095000 needle sleeve HK 1412 14x20x12 | needle sleeve HK 1412 14x20x12 | 2 | $8.24 | Available | 2 |
| 6 | 90134050000 STOP DISK 14X30X1,5 | STOP DISK 14X30X1,5 | 1 | $2.99 | Available | 1 |
| 7 | 54634014100 RETURN SPRING 2,2MM '95 | RETURN SPRING 2,2MM '95 | 1 | $7.80 | Available | 1 |
| 8 | 54634020000 SPRING GUIDE | SPRING GUIDE | 1 | $7.58 | Available | 1 |
| 9 | 56534013100 TENSIONING SPRING 0,8MM | TENSIONING SPRING 0,8MM | 1 | $1.99 | Available | 1 |
| 10 | 79434005033M02 Shift Shaft cpl. | Shift Shaft cpl. | 1 | — | Obsolete | View Details |
| 11 | 61234008044 SLIDING PLATE | SLIDING PLATE | 1 | $12.31 | Available | 1 |
| 13 | 79434020000 GEAR SHIFT RAIL 11,8X91,1MM | GEAR SHIFT RAIL 11,8X91,1MM | 1 | $16.49 | Available | 1 |
| 14 | 58038023400 Compression spring L=25mm D=0. | Compression spring L=25mm D=0. | 4 | $1.99 | Available | 4 |
| 16 | 76734015000M01 Shift star cmpl. | Shift star cmpl. | 1 | $208.66 | Available | 1 |
| 17 | 76734512000 Shift Roller 6 gear | Shift Roller 6 gear | 1 | — | Out of Stock | Notify Me |
| 18 | 0012060303 AH SCREW DIN6912 M6X30 8.8 | AH SCREW DIN6912 M6X30 8.8 | 1 | $1.99 | Available | 1 |
| 20 | 78134024044 LOCKING LEVER CPL. | LOCKING LEVER CPL. | 1 | $17.15 | Available | 1 |
| 21 | 0025050206 HH collar screw M5x20 TX30 | HH collar screw M5x20 TX30 | 1 | $2.99 | Available | 1 |
| 22 | 76734052000 Sleeve detent arm | Sleeve detent arm | 1 | — | Out of Stock | Notify Me |
| 23 | 76734023000M02 Detend arm spring | Detend arm spring | 1 | — | Out of Stock | Notify Me |
| 24 | 79434019000 GEAR SHIFT RAIL 11,8X74,5MM | GEAR SHIFT RAIL 11,8X74,5MM | 1 | $13.85 | Available | 1 |
| 25 | 76734001000M06 Shift fork 5/-6 gear | Shift fork 5/-6 gear | 1 | — | Out of Stock | Notify Me |
| 26 | 0021050003 washer DIN 9021 A - 5.3 | washer DIN 9021 A - 5.3 | 1 | $1.99 | Available | 1 |
| 27 | 79434002100M02 Shift fork 2/-4 gear | Shift fork 2/-4 gear | 1 | — | Out of Stock | Notify Me |
| 28 | 0625618050 BALL BEARING 61805 C3 | BALL BEARING 61805 C3 | 1 | $51.69 | Available | 1 |
| 29 | 50233041500 PAIR NORDLOCK WASHER M6 | PAIR NORDLOCK WASHER M6 | 1 | $4.99 | Available | 1 |
| 30 | 79434003100M02 Shift fork 1/-3 gear | Shift fork 1/-3 gear | 1 | — | Out of Stock | Notify Me |
| 31 | 0402061480 NEEDLE ROLLER DIN5402 6X14,8 | NEEDLE ROLLER DIN5402 6X14,8 | 3 | $4.99 | Available | 3 |
| 32 | 79234012010M01 Slide Bearing | Slide Bearing | 1 | — | Obsolete | View Details |
| 33 | 79234012020 Magnet bracket cmpl. | Magnet bracket cmpl. | 1 | $69.07 | Backorder — Restocking | 1 |
| 34 | 79211023000M02 Switch position sensor | Switch position sensor | 1 | — | Out of Stock | Notify Me |
| 35 | 0984050123S CYLIND. SCR. DIN6912 M5X12 8.8 | CYLIND. SCR. DIN6912 M5X12 8.8 | 2 | $2.99 | Available | 2 |
