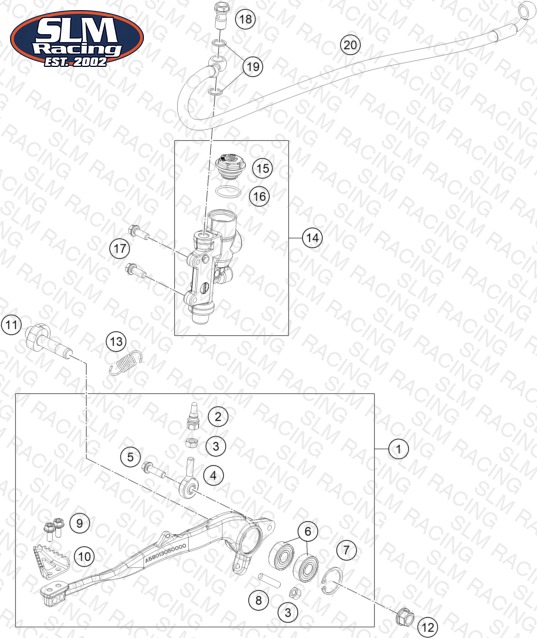

REAR BRAKE CONTROL
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A58013050044 Brake pedal preass. Rally | Brake pedal preass. Rally | 1 | — | Out of Stock | Notify Me |
| 2 | A58013056000 Push rod | Push rod | 1 | — | Out of Stock | Notify Me |
| 3 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 2 | $1.99 | Available | 2 |
| 4 | 54813055100 Joint head CMP6 | Joint head CMP6 | 1 | $23.42 | Available | 1 |
| 5 | 0025060206S HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 1 | $2.99 | Available | 1 |
| 6 | 0625060002 deep groove ball bearing SKF 6 | deep groove ball bearing SKF 6 | 2 | $14.51 | Available | 2 |
| 7 | 0472026120 Lock ring J26x1.2 | Lock ring J26x1.2 | 1 | — | Obsolete | View Details |
| 8 | 0913060253 Set screw DIN0913-M 6X25 | Set screw DIN0913-M 6X25 | 1 | — | Out of Stock | Notify Me |
| 9 | 0025050126 HH collar screw M5x12 TX30 | HH collar screw M5x12 TX30 | 2 | $3.99 | Available | 2 |
| 10 | 60013051000 STEP PLATE FOOT BRAKE LEVER 03 | STEP PLATE FOOT BRAKE LEVER 03 | 1 | $6.59 | Available | 1 |
| 11 | A58013054000 Screw, brake pedal | Screw, brake pedal | 1 | — | Out of Stock | Notify Me |
| 12 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 1 | $1.99 | Available | 1 |
| 13 | A46003062000 Retracting spring | Retracting spring | 1 | $2.99 | Available | 1 |
| 14 | 77013060044 REAR BRAKE CYLINDER CPL.SX 09 | REAR BRAKE CYLINDER CPL.SX 09 | 1 | $360.13 | Available | 1 |
| 15 | 54813062100 REAR BRAKE CYL. COVER CPL. 04 | REAR BRAKE CYL. COVER CPL. 04 | 1 | $53.01 | Available | 1 |
| 16 | 54813063000 FOOT-BRAKE CYL. GASKET SX 03 | FOOT-BRAKE CYL. GASKET SX 03 | 1 | $11.21 | Available | 1 |
| 17 | 59009062016 SPECIAL SCREW M6X16 WS=8 10.9 | SPECIAL SCREW M6X16 WS=8 10.9 | 2 | $2.99 | Available | 2 |
| 18 | 54813020100 banjo bolt M10x1x19 black | banjo bolt M10x1x19 black | 1 | $11.65 | Available | 1 |
| 19 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 2 | $2.99 | Available | 2 |
| 20 | 77213070100M03 REAR BRAKE LINE | REAR BRAKE LINE | 1 | — | Obsolete | View Details |
