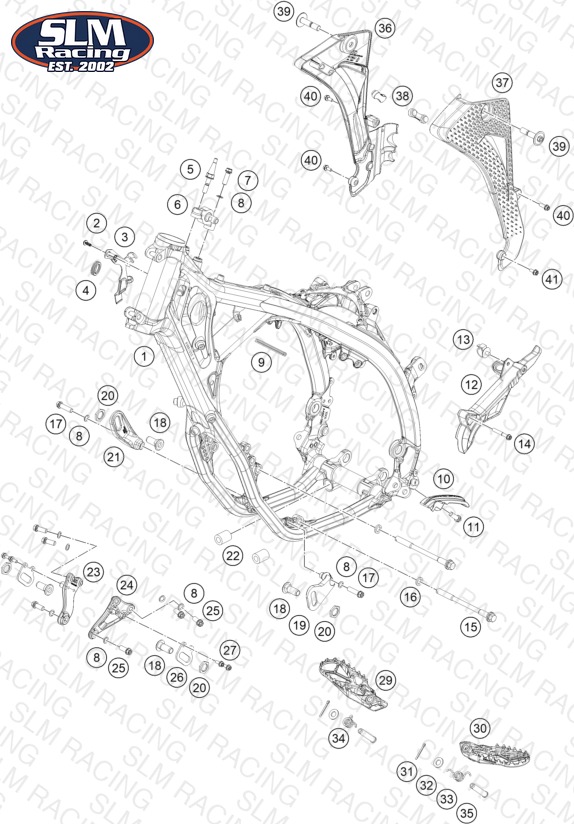

FRAME
Parts (40)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A58003101000HF Replica frame | Replica frame | 1 | — | Out of Stock | Notify Me |
| 2 | 0081050141 EJOT PT screw K50x14 | EJOT PT screw K50x14 | 1 | $1.99 | Available | 1 |
| 3 | A46003099020 Cable bracket/throttle cable g | Cable bracket/throttle cable g | 1 | $4.99 | Available | 1 |
| 4 | 76712069090 Rubber grommet d24 | Rubber grommet d24 | 1 | — | Out of Stock | Notify Me |
| 5 | A58002025000 Steering damper post mount | Steering damper post mount | 1 | — | Out of Stock | Notify Me |
| 6 | A58003043000 Fuel tank bracket top cmpl. | Fuel tank bracket top cmpl. | 1 | — | Out of Stock | Notify Me |
| 7 | 0025080256S HH COLLAR SCREW M8X25 TX40 | HH COLLAR SCREW M8X25 TX40 | 1 | $3.62 | Available | 1 |
| 8 | 36003014000 LOCK WASHER 8MM | LOCK WASHER 8MM | 9 | $2.99 | Available | 9 |
| 9 | 76003095074 Edge protection 9.5x6.5x74 | Edge protection 9.5x6.5x74 | 1 | $2.99 | Available | 1 |
| 10 | A46003053000 Chain slider below | Chain slider below | 1 | $7.47 | Available | 1 |
| 11 | 0025080206 HH collar screw M8x20 | HH collar screw M8x20 | 1 | $2.99 | Available | 1 |
| 12 | A58003196000 Front sprocket cover | Front sprocket cover | 1 | — | Out of Stock | Notify Me |
| 13 | 58111076000 CABLE SUPPORT KHS NR.150-47610 | CABLE SUPPORT KHS NR.150-47610 | 1 | $4.99 | Available | 1 |
| 14 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 1 | $3.99 | Available | 1 |
| 15 | 0000151013800 Collar screw M10x138 WS=13 | Collar screw M10x138 WS=13 | 2 | — | Out of Stock | Notify Me |
| 16 | 50233041100 PAIR OF WASHERS M10 NORDLOCK | PAIR OF WASHERS M10 NORDLOCK | 2 | $4.99 | Available | 2 |
| 17 | 0025080306S HH COLLAR SCREW M8X30 TX40 | HH COLLAR SCREW M8X30 TX40 | 2 | $3.62 | Available | 2 |
| 18 | 76407063000 FIXING SCREW TANK | FIXING SCREW TANK | 4 | — | Obsolete | View Details |
| 19 | A58003101093 Front tank connection left | Front tank connection left | 1 | — | Obsolete | View Details |
| 20 | 60512063050 NUT F.TANK BRAKET REAR | NUT F.TANK BRAKET REAR | 4 | $31.23 | Out of Stock | Notify Me |
| 21 | A58003101094 Front tank connection right | Front tank connection right | 1 | — | Out of Stock | Notify Me |
| 22 | A58003005031 Rubber grommet, engine brace | Rubber grommet, engine brace | 2 | — | Out of Stock | Notify Me |
| 23 | A58003114000 Engine brace right | Engine brace right | 1 | — | Out of Stock | Notify Me |
| 24 | A58003113000 Engine brace left | Engine brace left | 1 | — | Out of Stock | Notify Me |
| 25 | 0025080206S HH collar screw M8x20 TX40 SL | HH collar screw M8x20 TX40 SL | 6 | $2.99 | Available | 6 |
| 26 | A58003014010 Retaining bracket front tank h | Retaining bracket front tank h | 2 | — | Out of Stock | Notify Me |
| 27 | 0025050126 HH collar screw M5x12 TX30 | HH collar screw M5x12 TX30 | 4 | $3.99 | Available | 4 |
| 29 | A58003041000 Footpeg right | Footpeg right | 1 | $199.99 | Out of Stock | Notify Me |
| 30 | A58003040000 Footpeg left | Footpeg left | 1 | $199.99 | Out of Stock | Notify Me |
| 31 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | $1.99 | Available | 2 |
| 32 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 33 | A46003044000 Footrest spring left | Footrest spring left | 1 | $1.99 | Available | 1 |
| 34 | A46003045000 Footrest spring right | Footrest spring right | 1 | $1.99 | Available | 1 |
| 35 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | $14.62 | Available | 2 |
| 36 | A58003093000 Frame protection right | Frame protection right | 1 | $99.99 | Out of Stock | Notify Me |
| 37 | A58003092000 Frame protection left | Frame protection left | 1 | $99.99 | Out of Stock | Notify Me |
| 38 | 79105098000 exhaust spacer | exhaust spacer | 2 | $6.48 | Available | 2 |
| 39 | 00001410045U0 Special screw M10 | Special screw M10 | 2 | $62.49 | Available | 2 |
| 40 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 3 | $3.99 | Available | 3 |
| 41 | 0025060106 HH collar screw M6x10 TX30 | HH collar screw M6x10 TX30 | 1 | $3.99 | Available | 1 |
