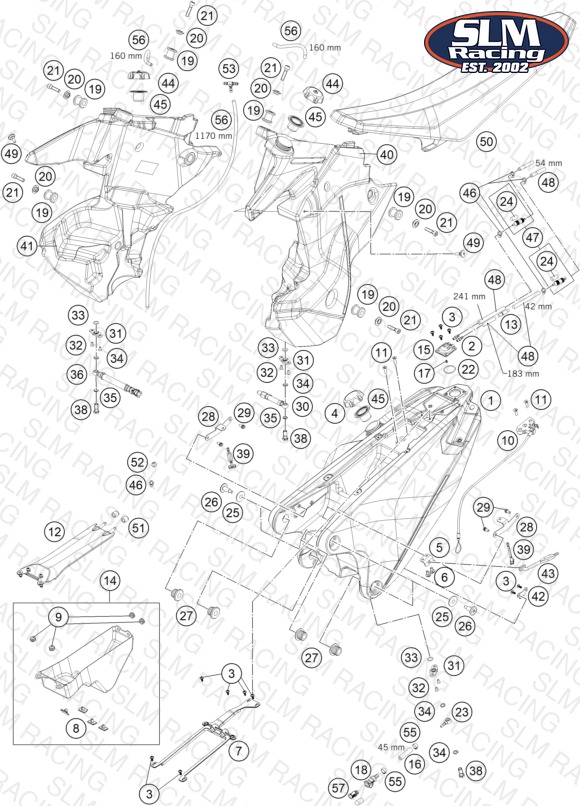

TANK, SEAT
Parts (55)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 7670701520028A Fuel tank painted white | Fuel tank painted white | 1 | — | Check availability | |
| 2 | 58336020190 VACUUM CONECTION M6/3MM '97 | VACUUM CONECTION M6/3MM '97 | 2 | — | Check availability | |
| 3 | 0081050141 EJOT PT screw K50x14 | EJOT PT screw K50x14 | 12 | — | Check availability | |
| 4 | 76307108000 FILLER CAP TANK RALLY | FILLER CAP TANK RALLY | 1 | — | Check availability | |
| 5 | 76407031100 Loop for rubber strap | Loop for rubber strap | 1 | — | Check availability | |
| 6 | 0024060136 HH collar screw M6x13 TX30 | HH collar screw M6x13 TX30 | 2 | — | Check availability | |
| 7 | 76707027000 Cable cover | Cable cover | 1 | — | Check availability | |
| 8 | 77307040041 Isolation pad | Isolation pad | 4 | — | Check availability | |
| 9 | 31008060000 rubber grommet D=8mm open | rubber grommet D=8mm open | 4 | — | Check availability | |
| 10 | 76707050033 Seat look cmpl. | Seat look cmpl. | 1 | — | Check availability | |
| 11 | 0991060202 Flat head screw DIN7991 M6X20 | Flat head screw DIN7991 M6X20 | 2 | — | Check availability | |
| 12 | 76712063133 Tool box lid ZSB | Tool box lid ZSB | 1 | — | Check availability | |
| 13 | 57307019000 VALVE FOR TANK BREATHING 02 | VALVE FOR TANK BREATHING 02 | 1 | — | Check availability | |
| 14 | 76712062133 Toolbox Case ZSB | Toolbox Case ZSB | 1 | — | Check availability | |
| 15 | 76707030010 Housing, tank air vent | Housing, tank air vent | 1 | — | Check availability | |
| 16 | 58507116100 HOSE OG.ECO 1TBSE 7X13MM | HOSE OG.ECO 1TBSE 7X13MM | 0 | — | Check availability | |
| 17 | 80030058060 OIL JET ''60'' M4 | OIL JET ''60'' M4 | 1 | — | Check availability | |
| 18 | 58507010500 CLUTCH F. FUEL HOSE CPC 03 | CLUTCH F. FUEL HOSE CPC 03 | 2 | — | Check availability | |
| 19 | 76407061000 RUBBER BUSHING | RUBBER BUSHING | 6 | — | Check availability | |
| 20 | 76407064000 BUSHING SLEEVE | BUSHING SLEEVE | 6 | — | Check availability | |
| 21 | 0912080253 AH SCREW DIN0912-M 8X25 | AH SCREW DIN0912-M 8X25 | 6 | — | Check availability | |
| 22 | 0770253240 O-RING 25,30X2,40 NBR70 | O-RING 25,30X2,40 NBR70 | 1 | — | Check availability | |
| 23 | 49138493000 RING COMPONENT 10/6MM | RING COMPONENT 10/6MM | 1 | — | Check availability | View Details |
| 24 | 76707031010 Filter element DM12x20 | Filter element DM12x20 | 1 | — | Check availability | |
| 25 | 76707067000 Rubber washer | Rubber washer | 4 | — | Check availability | |
| 26 | 76407060000 BEARING SKREW | BEARING SKREW | 4 | — | Check availability | |
| 27 | 76707066000 Rubber bushing 14X24.5X35 L=21 | Rubber bushing 14X24.5X35 L=21 | 4 | — | Check availability | |
| 28 | 76707015020 Toolbox bracket | Toolbox bracket | 2 | — | Check availability | |
| 29 | 0015060123 HH COLLAR SCREW M 6X12 WS=8 | HH COLLAR SCREW M 6X12 WS=8 | 4 | — | Check availability | View Details |
| 30 | 76707091033 Connecting pipe | Connecting pipe | 1 | — | Check availability | |
| 31 | 58507008050 FUEL FLANGE SHEET 01 | FUEL FLANGE SHEET 01 | 3 | — | Check availability | |
| 32 | 0991050102 Flat head screw DIN7991 M5X10 | Flat head screw DIN7991 M5X10 | 6 | — | Check availability | |
| 33 | 0770120020 O-RING 12,00X2,00 NBR 70 | O-RING 12,00X2,00 NBR 70 | 3 | — | Check availability | |
| 34 | 0603101420 COPPER GASKET 10,2X14X2 MM 01 | COPPER GASKET 10,2X14X2 MM 01 | 6 | — | Check availability | |
| 35 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 2 | — | Check availability | |
| 36 | 76707092033 Connecting pipe | Connecting pipe | 1 | — | Check availability | |
| 38 | 76738030000 Hollow screw M10x1 wrench size | Hollow screw M10x1 wrench size | 3 | — | Check availability | |
| 39 | 75011054005 BRACKET RUBBER FOR BATTERY | BRACKET RUBBER FOR BATTERY | 2 | — | Check availability | |
| 40 | 7670701300028A Front tank, left, painted whit | Front tank, left, painted whit | 1 | — | Check availability | |
| 41 | 7670701400028A Front tank, right, painted whi | Front tank, right, painted whi | 1 | — | Check availability | |
| 42 | 76707015010 Bowden cable holder | Bowden cable holder | 1 | — | Check availability | |
| 43 | 76503025000 RUBBER SIDE STAND | RUBBER SIDE STAND | 1 | — | Check availability | |
| 44 | 76407108000 TANK CAP | TANK CAP | 2 | — | Check availability | |
| 45 | 59007009000 GASKET FOR FILLER CAP HIGH | GASKET FOR FILLER CAP HIGH | 3 | — | Check availability | |
| 46 | 76311093200 CABLE TIE 200MM | CABLE TIE 200MM | 6 | — | Check availability | |
| 47 | 76707031033 Filter tank ventilation cpl. | Filter tank ventilation cpl. | 2 | — | Check availability | |
| 48 | 76707016001 Hose 6x3 mm | Hose 6x3 mm | 0 | — | Check availability | |
| 49 | 50307011000 SCREW SEAT FASTENING D=6X23/18 | SCREW SEAT FASTENING D=6X23/18 | 2 | — | Check availability | View Details |
| 50 | 76707040000 Seat Asm | Seat Asm | 1 | — | Check availability | |
| 51 | 76006014000 rubber grommet | rubber grommet | 2 | — | Check availability | |
| 52 | 76711094010 Plug-in base | Plug-in base | 2 | — | Check availability | |
| 53 | 60015022000 T-connector TS-6 03 | T-connector TS-6 03 | 1 | — | Check availability | |
| 55 | 00050133706 VARIABLE ONE-EAR CLAMP 13,3MM | VARIABLE ONE-EAR CLAMP 13,3MM | 2 | — | Check availability | |
| 56 | 58507007001 Hose 5x8mm | Hose 5x8mm | 0 | — | Check availability | View Details |
| 57 | 81212016100 WASH CAP SET | WASH CAP SET | 0 | — | Check availability |
