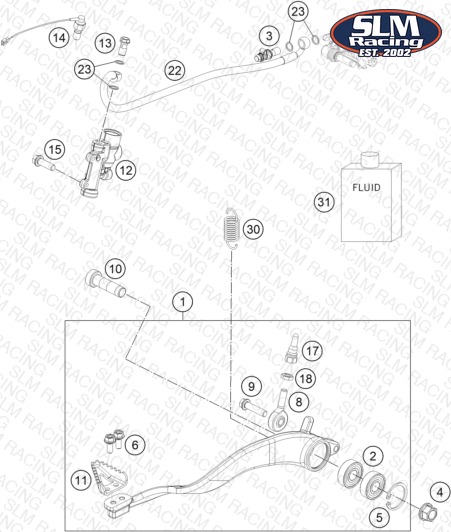

REAR BRAKE CONTROL
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 76713050033 Foot brake lever cpl. | Foot brake lever cpl. | 1 | — | Check availability | |
| 2 | 0625060002 deep groove ball bearing SKF 6 | deep groove ball bearing SKF 6 | 2 | — | Check availability | |
| 3 | 62513020000 BLEEDER SCREW CPL. 05 | BLEEDER SCREW CPL. 05 | 1 | — | Check availability | |
| 4 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 1 | — | Check availability | View Details |
| 5 | 0472026120 Lock ring J26x1.2 | Lock ring J26x1.2 | 1 | — | Check availability | |
| 6 | 0025050126 HH collar screw M5x12 TX30 | HH collar screw M5x12 TX30 | 2 | — | Check availability | |
| 8 | 54813055100 Joint head CMP6 | Joint head CMP6 | 1 | — | Check availability | |
| 9 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 1 | — | Check availability | |
| 10 | 0032100406S AH-COLLAR SCREW M10X40 ISA45 | AH-COLLAR SCREW M10X40 ISA45 | 1 | — | Check availability | |
| 11 | 60013051000 STEP PLATE FOOT BRAKE LEVER 03 | STEP PLATE FOOT BRAKE LEVER 03 | 1 | — | Check availability | |
| 12 | 77013060044 REAR BRAKE CYLINDER CPL.SX 09 | REAR BRAKE CYLINDER CPL.SX 09 | 1 | — | Check availability | |
| 13 | 54813020100 banjo bolt M10x1x19 black | banjo bolt M10x1x19 black | 1 | — | Check availability | |
| 14 | 58511051100 BRAKE LIGHT SWITCH LONG | BRAKE LIGHT SWITCH LONG | 1 | — | Check availability | |
| 15 | 59009062016 SPECIAL SCREW M6X16 WS=8 10.9 | SPECIAL SCREW M6X16 WS=8 10.9 | 2 | — | Check availability | |
| 17 | 54813056000 PUSH ROD L=28MM 03 | PUSH ROD L=28MM 03 | 1 | — | Check availability | |
| 18 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 1 | — | Check availability | |
| 22 | 76713070000 Rear brake hose | Rear brake hose | 1 | — | Check availability | View Details |
| 23 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 2 | — | Check availability | |
| 30 | 54603062200 Return spring for brake lever | Return spring for brake lever | 1 | — | Check availability | |
| 31 | 00062030000 Brake fluid DOT5.1 0,25L | Brake fluid DOT5.1 0,25L | 1 | — | Check availability |
