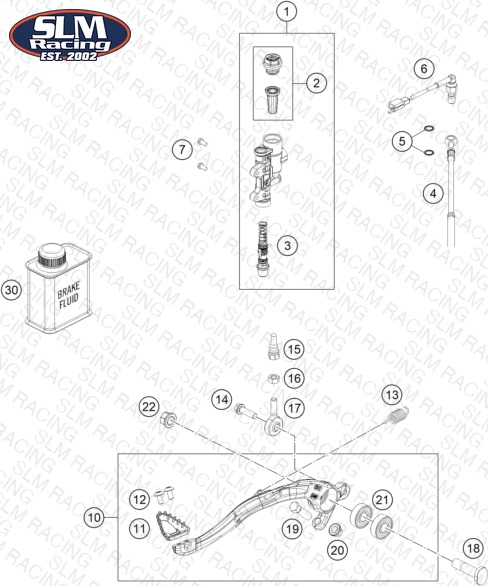

REAR BRAKE CONTROL
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A54013060044 rear master cylinder | rear master cylinder | 1 | — | Check availability | |
| 2 | A54013062100 Cover Brake cylinder cpl. | Cover Brake cylinder cpl. | 1 | — | Check availability | |
| 3 | A54013061000 rear master cylinder repair ki | rear master cylinder repair ki | 1 | — | Check availability | |
| 4 | A54013070000 Rear brake hose | Rear brake hose | 1 | — | Check availability | |
| 5 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 2 | — | Check availability | |
| 6 | 50311051100 BRAKE LIGHT SWITCH REAR '98 | BRAKE LIGHT SWITCH REAR '98 | 1 | — | Check availability | |
| 7 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 2 | — | Check availability | |
| 10 | A44013050044 Rear brake lever preass. | Rear brake lever preass. | 1 | — | Check availability | View Details |
| 11 | 55413051000 STEP PLATE FOOT BRAKE LEVER | STEP PLATE FOOT BRAKE LEVER | 1 | — | Check availability | |
| 12 | 58605083010 SCREW TORX M5X10 05 | SCREW TORX M5X10 05 | 2 | — | Check availability | |
| 13 | A46003062000 Retracting spring | Retracting spring | 1 | — | Check availability | |
| 14 | 0025060206S HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 1 | — | Check availability | |
| 15 | 54813056000 PUSH ROD L=28MM 03 | PUSH ROD L=28MM 03 | 1 | — | Check availability | |
| 16 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 1 | — | Check availability | |
| 17 | 54813055100 Joint head CMP6 | Joint head CMP6 | 1 | — | Check availability | |
| 18 | 47213054000 Screw foot brake lever | Screw foot brake lever | 1 | — | Check availability | |
| 19 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 1 | — | Check availability | |
| 20 | 46030045000 flanged nut M8 WS10 | flanged nut M8 WS10 | 1 | — | Check availability | |
| 21 | 0625060002 deep groove ball bearing SKF 6 | deep groove ball bearing SKF 6 | 2 | — | Check availability | |
| 22 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 1 | — | Check availability | View Details |
| 30 | 00062030000 Brake fluid DOT5.1 0,25L | Brake fluid DOT5.1 0,25L | 1 | — | Check availability |
