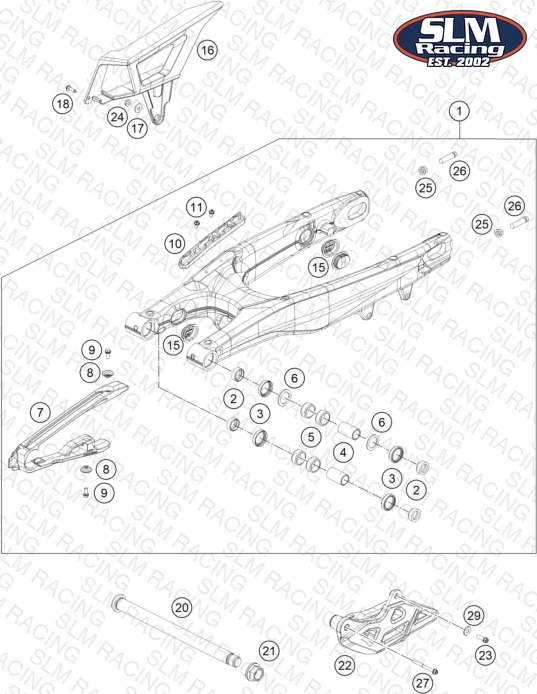

SWING ARM
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 76704030144 Swingarm cmpl. | Swingarm cmpl. | 1 | $1005.50 | Available | 1 |
| 2 | 54804034000 Bucket f. shaft seal ring 03 | Bucket f. shaft seal ring 03 | 4 | $15.83 | Available | 4 |
| 3 | 0760253270 radial shaft seal 25x32x7 | radial shaft seal 25x32x7 | 4 | $7.80 | Available | 4 |
| 4 | 59404032000 Bearing sleeve 17x22x38.7 03 | Bearing sleeve 17x22x38.7 03 | 2 | $11.87 | Available | 2 |
| 5 | 0618222812 Needle bushing HK2212V 22/28/1 | Needle bushing HK2212V 22/28/1 | 4 | $11.54 | Available | 4 |
| 6 | 54603036000 STOP DISK 22,2X31,7X1 | STOP DISK 22,2X31,7X1 | 2 | $3.62 | Available | 2 |
| 7 | 77204066100 CHAIN SLIDING PROTECTION | CHAIN SLIDING PROTECTION | 1 | $26.28 | Available | 1 |
| 8 | 77304066050 chain slider bushing | chain slider bushing | 2 | $1.99 | Available | 2 |
| 9 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 | SPECIAL SCREW M6X13 WS=8 10.9 | 2 | $2.99 | Available | 2 |
| 10 | 79004042000 BRAKE HOSE GUIDE | BRAKE HOSE GUIDE | 1 | $7.14 | Available | 1 |
| 11 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K | EJOT SPIRAL SCREW SF M5X10-K | 2 | $2.99 | Available | 2 |
| 15 | 77204041000 Locking cap swingarm | Locking cap swingarm | 4 | $4.99 | Available | 4 |
| 20 | 76704037000 Swingarm pivot M16x1.5 | Swingarm pivot M16x1.5 | 1 | — | Out of Stock | Notify Me |
| 21 | 54804038000 Nut with flange M16X1,5 WS=19 | Nut with flange M16X1,5 WS=19 | 1 | $2.99 | Available | 1 |
| 22 | 79004070000 CHAIN GUIDE | CHAIN GUIDE | 1 | $66.54 | Available | 1 |
| 23 | 59009062019 SPECIAL SCREW M6X19 WS=8 10.9 | SPECIAL SCREW M6X19 WS=8 10.9 | 1 | $2.99 | Available | 1 |
| 24 | 56509064100 Self locking nut M6 - 10 | Self locking nut M6 - 10 | 1 | $2.99 | Available | 1 |
| 25 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 | HH COLLAR NUT M10X1,25 WS=13 | 2 | $2.99 | Available | 2 |
| 26 | 50304040100 screw M10x1.25x50 WS10 | screw M10x1.25x50 WS10 | 2 | $6.15 | Available | 2 |
| 27 | 0025060506 HH collar screw M6x50 TX30 | HH collar screw M6x50 TX30 | 1 | $3.99 | Available | 1 |
| 16 | 78104060000 CHAINGUARD | CHAINGUARD | 1 | $12.20 | Available | 1 |
| 17 | 0021060003 Washer DIN9021-A 6.4 | Washer DIN9021-A 6.4 | 1 | $2.99 | Available | 1 |
| 18 | 0017060205 SCREW FOR PLASTIC K60X20 SW6 | SCREW FOR PLASTIC K60X20 SW6 | 1 | $2.99 | Available | 1 |
| 29 | 77304070130 BUSH. F. CHAIN FAIL. PROT. 07 | BUSH. F. CHAIN FAIL. PROT. 07 | 1 | $3.99 | Available | 1 |
