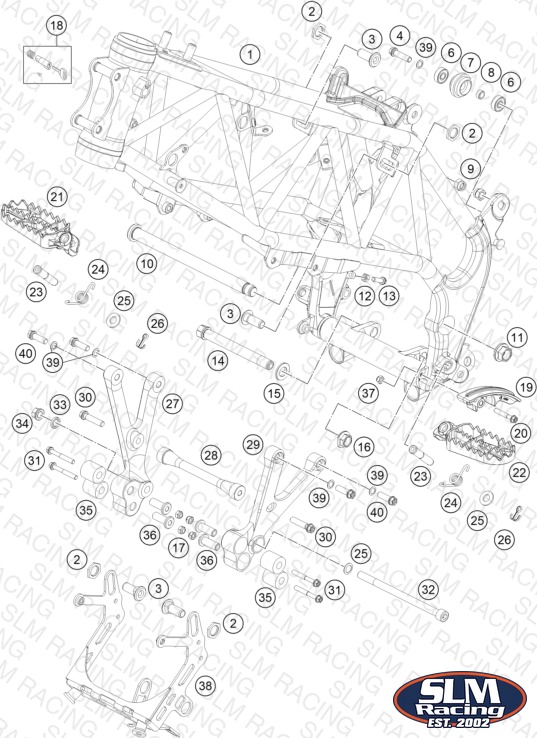

FRAME
Parts (39)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 7670300100030 Frame black | Frame black | 1 | — | Out of Stock | Notify Me |
| 2 | 60512063050 NUT F.TANK BRAKET REAR | NUT F.TANK BRAKET REAR | 4 | $31.23 | Out of Stock | Notify Me |
| 3 | 76407063000 FIXING SCREW TANK | FIXING SCREW TANK | 4 | — | Obsolete | View Details |
| 4 | 0025080306 HH collar screw M8x30 | HH collar screw M8x30 | 1 | $3.62 | Available | 1 |
| 6 | 0625006087 Grooved ball bearing 608 2RS C | Grooved ball bearing 608 2RS C | 2 | $25.18 | Available | 2 |
| 7 | 52303053000 CHAIN ROLL D=30MM 125-380 '99 | CHAIN ROLL D=30MM 125-380 '99 | 1 | $8.13 | Available | 1 |
| 8 | 74003021000 BUSHING 8.2 X 12 X 6 | BUSHING 8.2 X 12 X 6 | 1 | $3.99 | Available | 1 |
| 9 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | $2.99 | Available | 2 |
| 10 | 76704037000 Swingarm pivot M16x1.5 | Swingarm pivot M16x1.5 | 1 | — | Out of Stock | Notify Me |
| 11 | 54804038000 Nut with flange M16X1,5 WS=19 | Nut with flange M16X1,5 WS=19 | 1 | $2.99 | Available | 1 |
| 12 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 1 | $1.99 | Available | 1 |
| 13 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 1 | $3.99 | Available | 1 |
| 14 | 77404084100 Pin pull rod bearing M14 | Pin pull rod bearing M14 | 1 | $63.35 | Available | 1 |
| 15 | 77404084010 WASHER TIE-ROD BEARING M14 | WASHER TIE-ROD BEARING M14 | 1 | $8.02 | Available | 1 |
| 16 | 77404084120 Hex. nut M14x1.5 WS17 | Hex. nut M14x1.5 WS17 | 1 | $22.76 | Available | 1 |
| 17 | 56509064100 Self locking nut M6 - 10 | Self locking nut M6 - 10 | 4 | $2.99 | Available | 4 |
| 18 | 78003035000 STEERING HEAD LOCK 08 | STEERING HEAD LOCK 08 | 1 | $24.63 | Available | 1 |
| 19 | 76704066000 chain glides | chain glides | 1 | — | Obsolete | View Details |
| 20 | 0025060356 HH collar screw M6x35 TX30 | HH collar screw M6x35 TX30 | 1 | $3.99 | Available | 1 |
| 21 | 76203040250 FOOTREST LEFT RALLY 07 | FOOTREST LEFT RALLY 07 | 1 | $135.95 | Available | 1 |
| 22 | 76203041250 FOOTREST RIGHT RALLY 07 | FOOTREST RIGHT RALLY 07 | 1 | $127.26 | Available | 1 |
| 23 | 54603044000 BOLT FOR FOOTREST 9,8 X 50 | BOLT FOR FOOTREST 9,8 X 50 | 2 | $14.62 | Available | 2 |
| 24 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 2 | $6.15 | Available | 2 |
| 25 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 26 | 0094032250 PIN DIN 0094-3.2X25 NIRO | PIN DIN 0094-3.2X25 NIRO | 2 | $1.99 | Available | 2 |
| 27 | 76703106000 Engine brace right | Engine brace right | 1 | — | Obsolete | View Details |
| 28 | 76403005040 CROSS MEMBER | CROSS MEMBER | 1 | — | Obsolete | View Details |
| 29 | 76703105000 Engine brace left | Engine brace left | 1 | — | Obsolete | View Details |
| 30 | 0035080406S ISA collar screw M8x40 ISA45 | ISA collar screw M8x40 ISA45 | 2 | $2.99 | Available | 2 |
| 31 | 0025060456 HH COLLAR SCREW M6X45 TX30 | HH COLLAR SCREW M6X45 TX30 | 4 | $2.99 | Available | 4 |
| 32 | 0912101603 AH SCREW DIN0912-M10X160 | AH SCREW DIN0912-M10X160 | 1 | $7.91 | Available | 1 |
| 33 | 50233041100 PAIR OF WASHERS M10 NORDLOCK | PAIR OF WASHERS M10 NORDLOCK | 1 | $4.99 | Available | 1 |
| 34 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 1 | $1.99 | Available | 1 |
| 35 | 76203005031 RUBBER INSERT | RUBBER INSERT | 4 | $30.46 | Out of Stock | Notify Me |
| 36 | 76703008000 Bushing | Bushing | 4 | — | Obsolete | View Details |
| 37 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | $2.99 | Available | 1 |
| 38 | 76712099024 Engine protector console cpl. | Engine protector console cpl. | 1 | — | Out of Stock | Notify Me |
| 39 | 36003014000 LOCK WASHER 8MM | LOCK WASHER 8MM | 5 | $2.99 | Available | 5 |
| 40 | 0025080256 HH collar screw M8x25 | HH collar screw M8x25 | 4 | $2.41 | Available | 4 |
