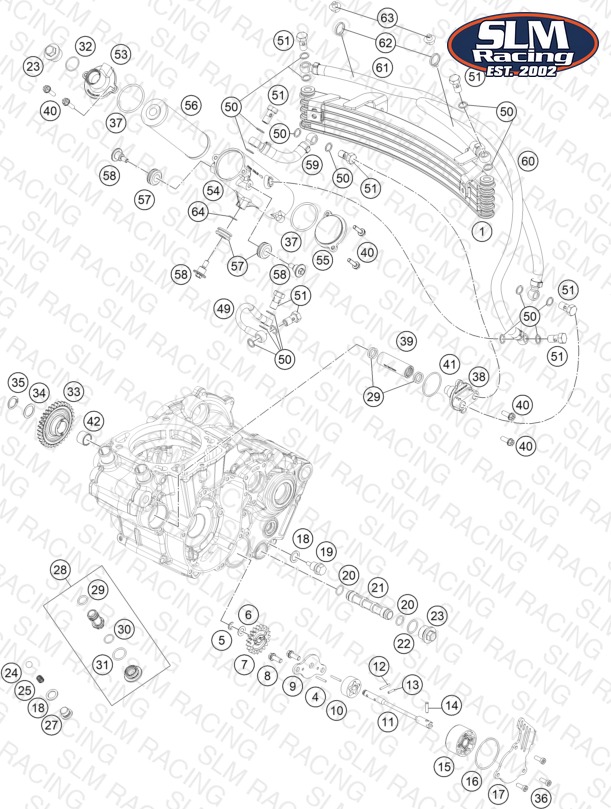

LUBRICATING SYSTEM
Parts (54)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 76738051000 Oil radiator | Oil radiator | 1 | — | Obsolete | View Details |
| 5 | 0799060000 TAB WASHER DIN6799-RS 6,0 | TAB WASHER DIN6799-RS 6,0 | 1 | $2.99 | Available | 1 |
| 6 | 58038007755 STOP DISK 8,1 X 15 X 0,5 | STOP DISK 8,1 X 15 X 0,5 | 1 | $2.99 | Available | 1 |
| 7 | 79438001019M03 oil pump gear | oil pump gear | 1 | — | Obsolete | View Details |
| 8 | 0025060166S HH collar screw M6x16 TX30 SL | HH collar screw M6x16 TX30 SL | 2 | $2.99 | Available | 2 |
| 9 | 79438003000M02 oil pump cover | oil pump cover | 1 | — | Obsolete | View Details |
| 10 | 77038011000 OILPUMP ROTOR 15MM G-164 | OILPUMP ROTOR 15MM G-164 | 1 | $51.47 | Available | 1 |
| 11 | 79438002000M02 Oil pump shaft | Oil pump shaft | 1 | — | Obsolete | View Details |
| 12 | 0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8 | NEEDLEROL.DIN5402 NRA 2,5X19,8 | 1 | $1.99 | Available | 1 |
| 13 | 0402251180 NEEDLE ROLLER DIN5402 2,5X11,8 | NEEDLE ROLLER DIN5402 2,5X11,8 | 1 | $1.99 | Available | 1 |
| 14 | 0402041580 needle roller NRB 4x15.8 G2 | needle roller NRB 4x15.8 G2 | 1 | $2.99 | Available | 1 |
| 15 | 61238011100 ROTOR SET 22MM | ROTOR SET 22MM | 1 | $20.55 | Available | 1 |
| 16 | 0770440020 O-RING 44,00X2,00 VITON | O-RING 44,00X2,00 VITON | 1 | $3.99 | Available | 1 |
| 17 | 79438004100 OIL PUMP COVER | OIL PUMP COVER | 1 | $79.08 | Available | 1 |
| 18 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 2 | $2.99 | Available | 2 |
| 19 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | $13.30 | Available | 1 |
| 20 | 07701250151 O-RING 12,5X1,5 VITON V75 | O-RING 12,5X1,5 VITON V75 | 2 | $4.99 | Available | 2 |
| 21 | 59038016100 OIL SCREEN | OIL SCREEN | 1 | $8.24 | Available | 1 |
| 22 | 0770020170 O-RING 17,17X1,78 GLO | O-RING 17,17X1,78 GLO | 1 | $2.99 | Available | 1 |
| 23 | 59038017100 PLUG M20X1,5 WS=13 | PLUG M20X1,5 WS=13 | 2 | $9.23 | Available | 2 |
| 24 | 0401090003 BALL DIN5401-9 | BALL DIN5401-9 | 1 | $2.99 | Available | 1 |
| 25 | 79438026000M01 Compression Spring | Compression Spring | 1 | — | Obsolete | View Details |
| 27 | 78036024000M01 Locking screw oil system | Locking screw oil system | 1 | — | Obsolete | View Details |
| 28 | 78138015001 OIL SCREEN CPL. | OIL SCREEN CPL. | 1 | $41.13 | Available | 1 |
| 29 | 0770012021 O-RING 12X2 VITON GREEN | O-RING 12X2 VITON GREEN | 7 | $2.99 | Available | 7 |
| 30 | 0770125015 O-RING 12,5X1,5 NBR | O-RING 12,5X1,5 NBR | 1 | $2.99 | Available | 1 |
| 31 | 0770170200 O-RING 17,00X2,00 | O-RING 17,00X2,00 | 1 | $2.99 | Available | 1 |
| 33 | 79438001033M04 Intermediate gear 33 Z | Intermediate gear 33 Z | 1 | — | Obsolete | View Details |
| 34 | 0988162205 THRUST WASH. DIN0988-16X22X0,5 | THRUST WASH. DIN0988-16X22X0,5 | 1 | $2.99 | Backorder — Restocking | 1 |
| 35 | 0471150010 CIRCLIP DIN0471-15X1 | CIRCLIP DIN0471-15X1 | 1 | $2.99 | Available | 1 |
| 36 | 0984050143S CYL. SCREW DIN6912 M5X14 8.8 | CYL. SCREW DIN6912 M5X14 8.8 | 3 | $2.99 | Available | 3 |
| 37 | 07700390261 O-RING 39,34X2,62 | O-RING 39,34X2,62 | 2 | $2.99 | Available | 2 |
| 38 | 76738050000 Oil adapter | Oil adapter | 1 | — | Obsolete | View Details |
| 40 | 0025050166 HH collar screw M5x16 TX30 | HH collar screw M5x16 TX30 | 6 | $2.99 | Available | 6 |
| 49 | 76438034000 OIL JET | OIL JET | 1 | — | Obsolete | View Details |
| 50 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 16 | $2.99 | Available | 16 |
| 51 | 76738030000 Hollow screw M10x1 wrench size | Hollow screw M10x1 wrench size | 8 | — | Out of Stock | Notify Me |
| 53 | 76438041000 COVER OIL FILTER 1 | COVER OIL FILTER 1 | 1 | — | Obsolete | View Details |
| 54 | 76438043000 HOUSING OI FILTER | HOUSING OI FILTER | 1 | — | Obsolete | View Details |
| 55 | 76438042000 COVER OIL FILTER 2 | COVER OIL FILTER 2 | 1 | — | Obsolete | View Details |
| 56 | 83538005000 OIL FILTER | OIL FILTER | 1 | $13.85 | Available | 1 |
| 57 | 41001052000 RUBBER SLEEVE D=12MM | RUBBER SLEEVE D=12MM | 3 | $4.99 | Available | 3 |
| 58 | 60035001000 SPECIAL SCREW M6X21 WS=8 | SPECIAL SCREW M6X21 WS=8 | 3 | $3.99 | Available | 3 |
| 59 | 76438053000 OIL PIPE L=105MM | OIL PIPE L=105MM | 1 | — | Out of Stock | Notify Me |
| 60 | 76438055000 OIL PIPE L=696MM | OIL PIPE L=696MM | 1 | — | Obsolete | View Details |
| 61 | 76438054000 OIL PIPE L=615MM | OIL PIPE L=615MM | 1 | — | Out of Stock | Notify Me |
| 62 | 76311093200 CABLE TIE 200MM | CABLE TIE 200MM | 2 | $1.99 | Available | 2 |
| 63 | 76711094010 Plug-in base | Plug-in base | 2 | — | Obsolete | View Details |
| 64 | 0021060003 Washer DIN9021-A 6.4 | Washer DIN9021-A 6.4 | 1 | $2.99 | Available | 1 |
| 39 | 76738035000 Tube f/ oil adapte | Tube f/ oil adapte | 1 | — | Obsolete | View Details |
| 41 | 07703305178 O-RING 33,05X1,78 | O-RING 33,05X1,78 | 1 | $3.99 | Available | 1 |
| 4 | 79438006000M01 Cylinder pin | Cylinder pin | 2 | — | Out of Stock | Notify Me |
| 42 | 79438001010 NEEDLE BEARING INNER RING | NEEDLE BEARING INNER RING | 1 | $10.33 | Available | 1 |
| 32 | 0770017025 O-RING 17X2,5 | O-RING 17X2,5 | 1 | — | Obsolete | View Details |
