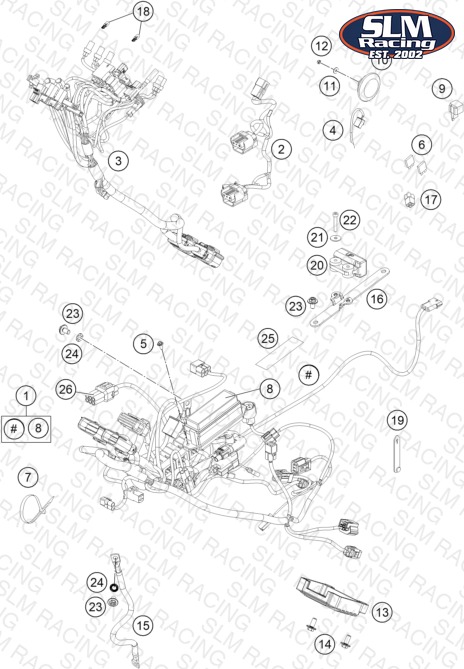

WIRING HARNESS
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 76711075000 main loom | main loom | 1 | — | Check availability | |
| 2 | 76711082000 loom light | loom light | 1 | — | Check availability | |
| 3 | 76711081000 loom cockpit tower | loom cockpit tower | 1 | — | Check availability | |
| 5 | 0025050106 HH collar screw M5x10 TX30 | HH collar screw M5x10 TX30 | 2 | — | Check availability | |
| 6 | 58011109110 Plug-in fuse, big 10A | Plug-in fuse, big 10A | 4 | — | Check availability | |
| 6 | 58011109115 FUSE 15 A | FUSE 15 A | 1 | — | Check availability | |
| 7 | 44011076140 CABLE TIE 140/2,5MM BLACK | CABLE TIE 140/2,5MM BLACK | — | — | Check availability | |
| 7 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | — | — | Check availability | |
| 7 | 76311093200 CABLE TIE 200MM | CABLE TIE 200MM | — | — | Check availability | |
| 7 | 76311093280 CABLE TIE 280MM | CABLE TIE 280MM | — | — | Check availability | |
| 8 | 58511075510 FUSE-BOX COVER | FUSE-BOX COVER | 1 | — | Check availability | |
| 9 | 76511030000 FLASHER UNIT | FLASHER UNIT | 1 | — | Check availability | |
| 10 | 50311060100 DC HORN L.E.B. 03 | DC HORN L.E.B. 03 | 1 | — | Check availability | |
| 11 | 0021050003 washer DIN 9021 A - 5.3 | washer DIN 9021 A - 5.3 | 1 | — | Check availability | |
| 12 | 0985050003 Self locking nut DIN 985 M5 | Self locking nut DIN 985 M5 | 1 | — | Check availability | |
| 13 | 79611034000 VOLTAGE REGULATOR | VOLTAGE REGULATOR | 1 | — | Check availability | |
| 14 | 0024060136 HH collar screw M6x13 TX30 | HH collar screw M6x13 TX30 | 2 | — | Check availability | |
| 18 | 49111425200 BULB 12V 2,3W (W2X4,6D) | BULB 12V 2,3W (W2X4,6D) | 6 | — | Check availability | |
| 15 | 76711097050 Ground wire, starter frame | Ground wire, starter frame | 1 | — | Check availability | |
| 16 | 76711155000 Bracket, rollover sensor | Bracket, rollover sensor | 1 | — | Check availability | |
| 20 | 61041088000 ROLLOVER SENSOR 05 | ROLLOVER SENSOR 05 | 1 | — | Check availability | |
| 21 | 61041088050 SHIM 4,3X15X1,25MM GALVANIZED | SHIM 4,3X15X1,25MM GALVANIZED | 2 | — | Check availability | |
| 22 | 0912040253 AH SCREW DIN0912-M 4X25 | AH SCREW DIN0912-M 4X25 | 2 | — | Check availability | |
| 23 | 0024060106 HH COLLAR SCREW M6X10 TX30 | HH COLLAR SCREW M6X10 TX30 | 4 | — | Check availability | |
| 24 | 58411098100 CONTACT WASHER M6 VSV-K6 | CONTACT WASHER M6 VSV-K6 | 2 | — | Check availability | |
| 4 | 76711083000 Wiring harness horn | Wiring harness horn | 1 | — | Check availability | |
| 17 | 000700000AN01 Dummy plug 4-pins | Dummy plug 4-pins | 1 | — | Check availability | |
| 6 | 58011109105 FUSE 5 A 2003 | FUSE 5 A 2003 | 3 | — | Check availability | |
| 19 | 60011093075 RUBBER CABLE TIE 75MM 03 | RUBBER CABLE TIE 75MM 03 | 1 | — | Check availability | |
| 25 | 76711087010 Sticker fuse box | Sticker fuse box | 1 | — | Check availability | |
| 26 | 000700000BH01 DUMMY PLUG 6-PIN | DUMMY PLUG 6-PIN | 1 | — | Check availability |
