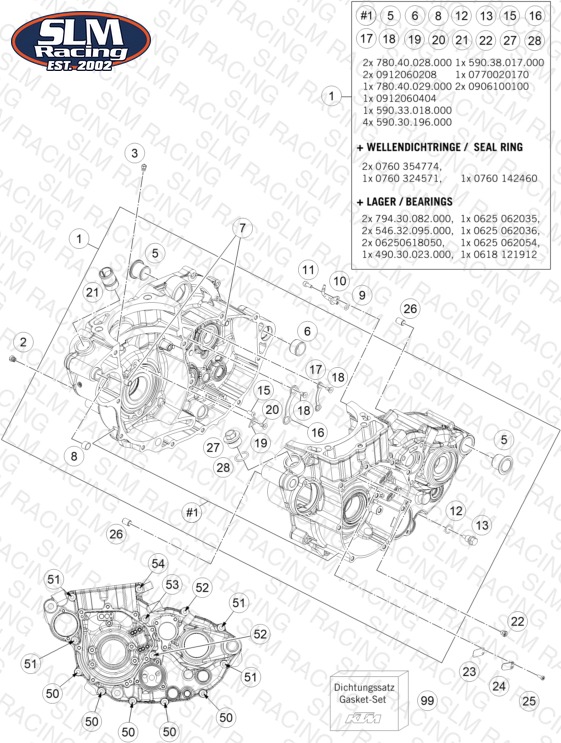

ENGINE CASE
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 26 | 59030023000 dowel sleeve 6x8x11.5 | dowel sleeve 6x8x11.5 | 2 | — | Check availability | View Details |
| 1 | 76430000033 ENGINE CASE CPL. | ENGINE CASE CPL. | 1 | — | Check availability | |
| 2 | 57031523145 MAIN JET 145 | MAIN JET 145 | 1 | — | Check availability | |
| 3 | 60030063190 OIL JET 90 M5 | OIL JET 90 M5 | 1 | — | Check availability | |
| 5 | 75030010100 CASE BUSH | CASE BUSH | 2 | — | Check availability | |
| 6 | 54830027000 DOWEL 21X12 03 | DOWEL 21X12 03 | 1 | — | Check availability | View Details |
| 8 | 51030026100 DOWEL 17 X 13 X 12 | DOWEL 17 X 13 X 12 | 1 | — | Check availability | |
| 9 | 0770035020 O-RING 3,5X2,00 NBR | O-RING 3,5X2,00 NBR | 1 | — | Check availability | |
| 10 | 81230064000 OIL JET ANGLED 70 | OIL JET ANGLED 70 | 1 | — | Check availability | |
| 11 | 0912040103 AH.SCREW DIN0912-M 4X10 | AH.SCREW DIN0912-M 4X10 | 1 | — | Check availability | |
| 12 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | — | Check availability | |
| 13 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | — | Check availability | View Details |
| 15 | 0018050103 INT. TORX OVAL HEAD M 5X10 8.8 | INT. TORX OVAL HEAD M 5X10 8.8 | 1 | — | Check availability | |
| 16 | 78033032000 TAB WASHER BEARING MAIN SHAFT | TAB WASHER BEARING MAIN SHAFT | 1 | — | Check availability | |
| 17 | 78033132000 TAB WASHER BEARING COUNT.SHAFT | TAB WASHER BEARING COUNT.SHAFT | 1 | — | Check availability | |
| 18 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 | INT. TORX FLAT HEAD M5X12 T25 | 4 | — | Check availability | |
| 50 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 5 | — | Check availability | |
| 51 | 0025060606 HH collar screw M6x60 TX30 | HH collar screw M6x60 TX30 | 4 | — | Check availability | |
| 52 | 0025060756 HH COLLAR SCREW M6X75 TX30 | HH COLLAR SCREW M6X75 TX30 | 2 | — | Check availability | |
| 53 | 0025060806 HH COLLAR SCREW M6X80 TX30 | HH COLLAR SCREW M6X80 TX30 | 1 | — | Check availability | |
| 54 | 0025060856 HH COLLAR SCREW M6X85 TX30 | HH COLLAR SCREW M6X85 TX30 | 1 | — | Check availability | |
| 99 | 78130099000 GASKET SET 450/500 EXC 12 | GASKET SET 450/500 EXC 12 | 1 | — | Check availability | |
| 19 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 4 | — | Check availability | View Details |
| 20 | 0019050106S hex lobe countersunc screw M5x | hex lobe countersunc screw M5x | 4 | — | Check availability | |
| 21 | 58030010200 SCREW IN NOZZLE M20X1,5 | SCREW IN NOZZLE M20X1,5 | 1 | — | Check availability | |
| 22 | 59030054000 JET 60 DELLORTO M6X0,75 | JET 60 DELLORTO M6X0,75 | 1 | — | Check availability | |
| 27 | 59038017100 PLUG M20X1,5 WS=13 | PLUG M20X1,5 WS=13 | 1 | — | Check availability | |
| 28 | 0770017025 O-RING 17X2,5 | O-RING 17X2,5 | 1 | — | Check availability | |
| 23 | 81205027003 MEMBRAN CRANKCASE | MEMBRAN CRANKCASE | 1 | — | Check availability | |
| 24 | 81205027004 TAB WASHER MEMBRAN CSC | TAB WASHER MEMBRAN CSC | 1 | — | Check availability | |
| 25 | 0458030080 CYLIND.SCREW M3X8 ISO 14580 SS | CYLIND.SCREW M3X8 ISO 14580 SS | 2 | — | Check availability |
