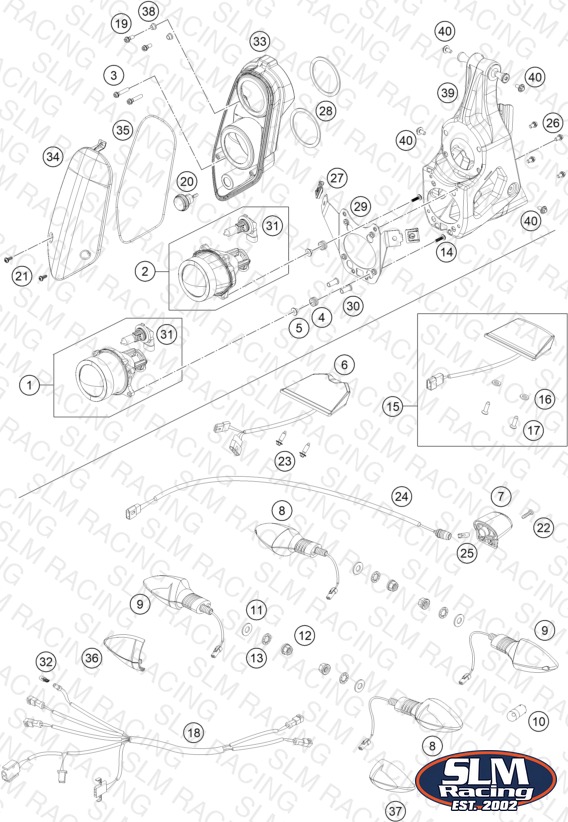

LIGHTING SYSTEM
Parts (40)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 76414001000 HEADLIGHT HIGH BEAM | HEADLIGHT HIGH BEAM | 1 | — | Check availability | |
| 2 | 76214002000 HEADLIGHT LOW BEAM 07 | HEADLIGHT LOW BEAM 07 | 1 | — | Check availability | |
| 3 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 2 | — | Check availability | |
| 4 | 31008060000 rubber grommet D=8mm open | rubber grommet D=8mm open | 8 | — | Check availability | |
| 5 | 76408001004 BUSHING | BUSHING | 8 | — | Check availability | |
| 6 | 76514040000 REAR LIGHT | REAR LIGHT | 1 | — | Check availability | |
| 7 | 75014047000 LICENSE PLATE ILLUMINATION 07 | LICENSE PLATE ILLUMINATION 07 | 1 | — | Check availability | View Details |
| 8 | 78114025000 FLASHER CPL.FRONT L/S REAR R/S | FLASHER CPL.FRONT L/S REAR R/S | 2 | — | Check availability | |
| 9 | 78114026000 FLASHER CPL.FRONT R/S REAR L/S | FLASHER CPL.FRONT R/S REAR L/S | 2 | — | Check availability | |
| 10 | 60114027000 BULB 12V ORANGE (RY10W) | BULB 12V ORANGE (RY10W) | 4 | — | Check availability | |
| 11 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 4 | — | Check availability | |
| 12 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 | HH COLLAR NUT M10X1,25 WS=13 | 4 | — | Check availability | |
| 13 | 0797100003 LOCK WASHER DIN6797-J10,5 ZI | LOCK WASHER DIN6797-J10,5 ZI | 4 | — | Check availability | |
| 15 | 76314040044 ADDITIONAL REAR LIGHT CPL. | ADDITIONAL REAR LIGHT CPL. | 1 | — | Check availability | |
| 16 | 77332036004 WASHER 5,3X12X0,5 | WASHER 5,3X12X0,5 | 2 | — | Check availability | |
| 17 | 0985050103 OVAL HEAD SCR. DIN7985-M 5X10 | OVAL HEAD SCR. DIN7985-M 5X10 | 2 | — | Check availability | |
| 18 | 76411080000 WIRING HARNESS FLASHER | WIRING HARNESS FLASHER | 1 | — | Check availability | |
| 19 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 2 | — | Check availability | |
| 37 | 78114027000 FLASHER LENS FRO.L/S-REAR R/S | FLASHER LENS FRO.L/S-REAR R/S | 2 | — | Check availability | |
| 26 | 0025060106 HH collar screw M6x10 TX30 | HH collar screw M6x10 TX30 | 4 | — | Check availability | |
| 27 | 45007040052 Clip | Clip | 2 | — | Check availability | |
| 14 | 76414003002 EJOMAT PT SCREW 50X20 | EJOMAT PT SCREW 50X20 | 8 | — | Check availability | |
| 33 | 76408001000 FRONTLIGHT MASK | FRONTLIGHT MASK | 1 | — | Check availability | |
| 35 | 69006001060 GASKET F. AIRBOX | GASKET F. AIRBOX | 1 | — | Check availability | |
| 34 | 76412079000 STONE GUARD | STONE GUARD | 1 | — | Check availability | |
| 38 | 76408001002 SLEEVE | SLEEVE | 2 | — | Check availability | |
| 39 | 76408003000 LIGHT SUPPORT STRUCTURE ASSY | LIGHT SUPPORT STRUCTURE ASSY | 1 | — | Check availability | |
| 22 | 0081250181 SCREW FOR PLASTIC 50X18 T20 | SCREW FOR PLASTIC 50X18 T20 | 1 | — | Check availability | |
| 25 | 49011435100 BULB 12V 5W (W2,1X9,5D) PHIL. | BULB 12V 5W (W2,1X9,5D) PHIL. | 2 | — | Check availability | |
| 28 | 76408001005 CELLULAR RUBBER | CELLULAR RUBBER | 2 | — | Check availability | |
| 29 | 76408004010 FRONTLIGHT MASK HOLDER ASSY | FRONTLIGHT MASK HOLDER ASSY | 1 | — | Check availability | |
| 30 | 76408001003 BUSH | BUSH | 2 | — | Check availability | |
| 31 | 76414003001 BULB HB3 | BULB HB3 | 2 | — | Check availability | |
| 32 | 49111425200 BULB 12V 2,3W (W2X4,6D) | BULB 12V 2,3W (W2X4,6D) | 1 | — | Check availability | |
| 36 | 78114028000 FLASHER LENS L/S R/S TRANSP. | FLASHER LENS L/S R/S TRANSP. | 2 | — | Check availability | |
| 24 | 76511078000 WIRING HARN. LIC. PLATE ILLUM. | WIRING HARN. LIC. PLATE ILLUM. | 1 | — | Check availability | |
| 20 | 76414004000 POSITION LIGHT | POSITION LIGHT | 1 | — | Check availability | |
| 21 | 0081050141 EJOT PT screw K50x14 | EJOT PT screw K50x14 | 2 | — | Check availability | |
| 40 | 0024060136 HH collar screw M6x13 TX30 | HH collar screw M6x13 TX30 | 4 | — | Check availability | |
| 23 | 0017060205 SCREW FOR PLASTIC K60X20 SW6 | SCREW FOR PLASTIC K60X20 SW6 | 2 | — | Check availability |
