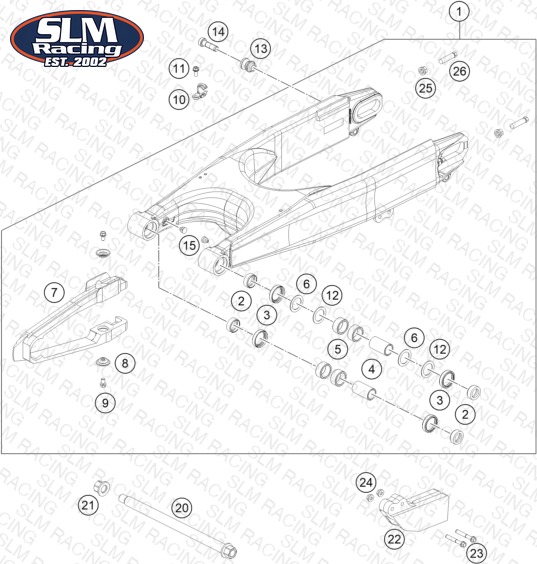

SWING ARM
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 15 | 60004042000 PLUG SFL12 GREY 05 | PLUG SFL12 GREY 05 | 2 | — | Check availability | |
| 1 | 76404030044 SWINGARM RALLY CPL. | SWINGARM RALLY CPL. | 1 | — | Check availability | |
| 2 | 76204034000 SPACER F. SHAFT SEALRING 07 | SPACER F. SHAFT SEALRING 07 | 4 | — | Check availability | |
| 3 | 0760253270 radial shaft seal 25x32x7 | radial shaft seal 25x32x7 | 4 | — | Check availability | |
| 4 | 59404032000 Bearing sleeve 17x22x38.7 03 | Bearing sleeve 17x22x38.7 03 | 2 | — | Check availability | |
| 5 | 0618222812 Needle bushing HK2212V 22/28/1 | Needle bushing HK2212V 22/28/1 | 4 | — | Check availability | |
| 6 | 76203037100 STOP DISK 22X32X1,0 | STOP DISK 22X32X1,0 | 2 | — | Check availability | |
| 7 | 50304066100 CHAIN GUARD 05 | CHAIN GUARD 05 | 1 | — | Check availability | |
| 8 | 72210079000 BUCKET | BUCKET | 2 | — | Check availability | View Details |
| 9 | 0025060106 HH collar screw M6x10 TX30 | HH collar screw M6x10 TX30 | 2 | — | Check availability | |
| 10 | 54611076100 RETAIN.CLAMP FOR BRAKE HOSE'96 | RETAIN.CLAMP FOR BRAKE HOSE'96 | 1 | — | Check availability | |
| 11 | 0010050103 SPECIAL SCREW M 5,0X10 | SPECIAL SCREW M 5,0X10 | 1 | — | Check availability | |
| 12 | 76203037000 STOP DISK 22,2X31,7X0,5 | STOP DISK 22,2X31,7X0,5 | 2 | — | Check availability | |
| 13 | 76404059000 SUPPORT F. LIFTING DEVICE | SUPPORT F. LIFTING DEVICE | 2 | — | Check availability | |
| 14 | 0032100356S AH-COLLAR SCREW M10X35 ISA45 | AH-COLLAR SCREW M10X35 ISA45 | 2 | — | Check availability | |
| 20 | 76204037044 SWINGARM BOLT CPL. 07 | SWINGARM BOLT CPL. 07 | 1 | — | Check availability | |
| 21 | 54603015000 Self locking nut M14x1.5 WS19 | Self locking nut M14x1.5 WS19 | 1 | — | Check availability | |
| 22 | 54607066100 CHAIN GUIDE REAR '94 | CHAIN GUIDE REAR '94 | 1 | — | Check availability | |
| 23 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 2 | — | Check availability | |
| 24 | 56509064100 Self locking nut M6 - 10 | Self locking nut M6 - 10 | 2 | — | Check availability | |
| 25 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 | HH COLLAR NUT M10X1,25 WS=13 | 2 | — | Check availability | |
| 26 | 50304040100 screw M10x1.25x50 WS10 | screw M10x1.25x50 WS10 | 2 | — | Check availability |
