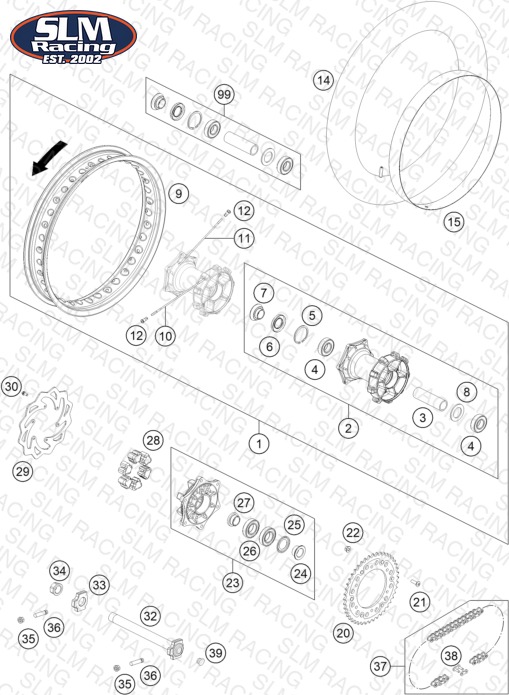

REAR WHEEL
Parts (38)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 76410001044 REAR WHEEL RALLY CPL. | REAR WHEEL RALLY CPL. | 1 | — | Check availability | |
| 2 | 7531001004491 REAR WHEEL HUB CPL. | REAR WHEEL HUB CPL. | 1 | — | Check availability | |
| 3 | 75310011000 BEARING SPACER TUBE L=106MM 07 | BEARING SPACER TUBE L=106MM 07 | 1 | — | Check availability | |
| 4 | 0625062052 Grooved ball bear. 6205-2RSHC3 | Grooved ball bear. 6205-2RSHC3 | 2 | — | Check availability | |
| 5 | 0472052200 CIRCLIP DIN0472-52X2 | CIRCLIP DIN0472-52X2 | 1 | — | Check availability | |
| 6 | 0760305271 Radial shaft seal 30X52X7 | Radial shaft seal 30X52X7 | 1 | — | Check availability | |
| 7 | 60110013000 SPACER BUSH. REAR WHEEL R/S 06 | SPACER BUSH. REAR WHEEL R/S 06 | 1 | — | Check availability | |
| 8 | 60010015000 Spacer ring 03 | Spacer ring 03 | 1 | — | Check availability | |
| 9 | 7621007000030 RIM 2.50X18'' | RIM 2.50X18'' | 1 | — | Check availability | |
| 10 | 76410071215 SPOKE M5X215 | SPOKE M5X215 | 18 | — | Check availability | |
| 11 | 76410071205 SPOKE M5X205 | SPOKE M5X205 | 18 | — | Check availability | |
| 12 | 60310072100 SPOKE NIPPLE QUADRAX M5 | SPOKE NIPPLE QUADRAX M5 | 36 | — | Check availability | View Details |
| 14 | 50310075100 TUBE 110/100C-18 | TUBE 110/100C-18 | — | — | Check availability | |
| 15 | 50310073200 Tube protector 18" and 19" | Tube protector 18" and 19" | — | — | Check availability | |
| 20 | 8131095104868 SPROCKET BLUE T-48 | SPROCKET BLUE T-48 | — | — | Check availability | |
| 20 | 8131095104968 SPROCKET BLUE T-49 | SPROCKET BLUE T-49 | — | — | Check availability | |
| 20 | 8131095105068 SPROCKET BLUE T-50 | SPROCKET BLUE T-50 | — | — | Check availability | |
| 20 | 8131095105168 SPROCKET BLUE T-51 | SPROCKET BLUE T-51 | 1 | — | Check availability | |
| 20 | 8131095105268 SPROCKET BLUE T-52 | SPROCKET BLUE T-52 | — | — | Check availability | |
| 21 | 0019080266S COUNTER-SUNK SCREW ISA45 M8X26 | COUNTER-SUNK SCREW ISA45 M8X26 | 6 | — | Check availability | |
| 22 | 54310086200 Self locking nut M8 10.9 | Self locking nut M8 10.9 | 6 | — | Check availability | |
| 23 | 7501005004491 SPROCKET SUPPORT CPL. SILVER | SPROCKET SUPPORT CPL. SILVER | 1 | — | Check availability | |
| 24 | 60110012000 SPACER BUSH. SPROCKET SUPP. 06 | SPACER BUSH. SPROCKET SUPP. 06 | 1 | — | Check availability | |
| 25 | 60110016000 NILOS RING 6006AV | NILOS RING 6006AV | 1 | — | Check availability | |
| 26 | 0625060060 BALL BEARING 6006 DDU2CG23S6NM | BALL BEARING 6006 DDU2CG23S6NM | 2 | — | Check availability | |
| 27 | 60110014000 SPACER BUSH. SPR. SUPP. IN. 06 | SPACER BUSH. SPR. SUPP. IN. 06 | 1 | — | Check availability | |
| 28 | 54610459000 Rubber damping block 91 | Rubber damping block 91 | 6 | — | Check availability | |
| 29 | 76510060100 REAR BRAKE DISK D=240X4MM | REAR BRAKE DISK D=240X4MM | 1 | — | Check availability | |
| 30 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 | SPECIAL SCREW M6X13 WS=8 10.9 | 6 | — | Check availability | |
| 32 | 76210081044 WHEEL SPINDLE REAR CPL. | WHEEL SPINDLE REAR CPL. | 1 | — | Check availability | |
| 33 | 60010084000 Chain tension adjuster, right, | Chain tension adjuster, right, | 1 | — | Check availability | |
| 34 | 60010086000 COLLAR NUT WH. SPINDLE REAR 03 | COLLAR NUT WH. SPINDLE REAR 03 | 1 | — | Check availability | |
| 35 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 | HH COLLAR NUT M10X1,25 WS=13 | 2 | — | Check availability | |
| 36 | 50304040100 screw M10x1.25x50 WS10 | screw M10x1.25x50 WS10 | 2 | — | Check availability | |
| 37 | 78010167118 CHAIN DID 118 LINKS | CHAIN DID 118 LINKS | 1 | — | Check availability | View Details |
| 38 | 78010166100 RIVETING LINK FOR 78010167118 | RIVETING LINK FOR 78010167118 | 1 | — | Check availability | View Details |
| 39 | 50210086000 Plug SFL16 | Plug SFL16 | 1 | — | Check availability | |
| 99 | 75010015000 REAR WHEEL REP. KIT | REAR WHEEL REP. KIT | — | — | Check availability |
