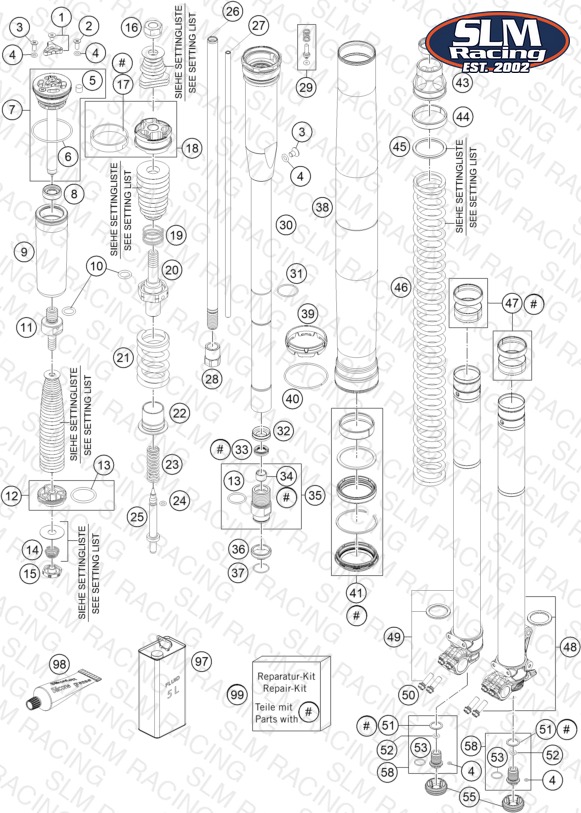

FRONT FORK DISASSEMBLED

← →

Parts (60)

#	Part Number	Description	Qty	Price	Status
45	48600458 Washer 35x43x1,5 plastic	Washer 35x43x1,5 plastic	2	—	Check availability
1	48600811S Adjuster compression cpl.	Adjuster compression cpl.	2	—	Check availability
2	48600526 Cross flat head screw M4x10	Cross flat head screw M4x10	2	—	Check availability
3	48600542 HS countersunk head screw M4x6	HS countersunk head screw M4x6	4	—	Check availability
4	50180222 O-ring 4x1,5 NBR70	O-ring 4x1,5 NBR70	8	—	Check availability
5	15080017 Silicon plug 60Sh	Silicon plug 60Sh	2	—	Check availability
6	40140024 O-ring 43x2 NBR70 siliconized	O-ring 43x2 NBR70 siliconized	2	—	Check availability
7	48600516E1 SCREW CAP L=125	SCREW CAP L=125	2	—	Check availability
8	48600514 Clamping ring bladder 11,31x22	Clamping ring bladder 11,31x22	2	—	Check availability
9	48600281 Membrane 11,2x37x112	Membrane 11,2x37x112	2	—	Check availability
10	48600299 O-ring 6x1,2 NBR70	O-ring 6x1,2 NBR70	4	—	Check availability
11	48600509 Tap 6x38 compression	Tap 6x38 compression	2	—	Check availability
12	48600047S Piston 6x27,8x9 compression cp	Piston 6x27,8x9 compression cp	2	—	Check availability
16	40540486 Nut M6x0,5 h6,5 WAF10 rebound	Nut M6x0,5 h6,5 WAF10 rebound	2	—	Check availability
13	46811499 O-ring 21x2 NBR70	O-ring 21x2 NBR70	4	—	Check availability
14	48600202 Spring (8,5) l6,5 valve	Spring (8,5) l6,5 valve	2	—	Check availability
15	48600163 Nut valve M6x0,5 h6,5 WAF17	Nut valve M6x0,5 h6,5 WAF17	2	—	Check availability
17	48600455 Piston ring 21x23x5	Piston ring 21x23x5	2	—	Check availability
18	48600575S piston rebound + piston ring	piston rebound + piston ring	2	—	Check availability
19	48600382 Spring (11,4) 0,4-8 valve	Spring (11,4) 0,4-8 valve	2	—	Check availability
20	48600576 Tap 6x46 rebound	Tap 6x46 rebound	2	—	Check availability
21	48600578 Spring (13,9) 37-32 rebound	Spring (13,9) 37-32 rebound	2	—	Check availability
22	48600525 Spring retainer 12,3x19x1,25 r	Spring retainer 12,3x19x1,25 r	2	—	Check availability
23	48600444 Spring (5,4) 4-23 rebound	Spring (5,4) 4-23 rebound	2	—	Check availability
24	48600298 O-ring 2x1,5 NBR70	O-ring 2x1,5 NBR70	2	—	Check availability
25	48600277 Needle 4,5x43,6	Needle 4,5x43,6	2	—	Check availability
26	48600464 Piston rod 12x405	Piston rod 12x405	2	—	Check availability
27	48600269 Adjustment tube 6x371	Adjustment tube 6x371	2	—	Check availability
28	48600459 Lock nut M12x1 h23 WAF17	Lock nut M12x1 h23 WAF17	2	—	Check availability
29	48600977S PIN KIT	PIN KIT	2	—	Check availability
39	48600698 Fork protection ring 62,1mm	Fork protection ring 62,1mm	2	—	Check availability
40	48600016 Round-wire snap ring 48x2	Round-wire snap ring 48x2	2	—	Check availability
41	R14040 GASKET KIT CPL.	GASKET KIT CPL.	1	—	Check availability	View Details
45	48600457 Preload bush 35x43x3,5	Preload bush 35x43x3,5	2	—	Check availability
48	48601540S1 AXLE-CL. MA DISC BR+INNERT. LF	AXLE-CL. MA DISC BR+INNERT. LF	1	—	Check availability
34	48600430 Guide bushing 12x14x10	Guide bushing 12x14x10	2	—	Check availability
35	48601055S SCREW SLEEVE M24,5X1 CPL.	SCREW SLEEVE M24,5X1 CPL.	2	—	Check availability
36	48600297 CHECK VALVE STOP	CHECK VALVE STOP	2	—	Check availability
37	48600446 Round-wire snap ring 24x2	Round-wire snap ring 24x2	2	—	Check availability
38	48600761 Fork outer tube 49,13x577 dt54	Fork outer tube 49,13x577 dt54	2	—	Check availability
49	48601541S1 AXLE-CL. MA DISC BR+INNERT. RE	AXLE-CL. MA DISC BR+INNERT. RE	1	—	Check availability
50	0025080256 HH collar screw M8x25	HH collar screw M8x25	4	—	Check availability
51	48600275 Copper disc 20,5x26x1	Copper disc 20,5x26x1	2	—	Check availability
52	48600301 O-ring 9,5x1,5 NBR70 yellow	O-ring 9,5x1,5 NBR70 yellow	2	—	Check availability
53	46810811 O-ring 17x2 70 Sh NBR black	O-ring 17x2 70 Sh NBR black	2	—	Check availability
54	48600280E Adjustment screw slot M20x1 l3	Adjustment screw slot M20x1 l3	2	—	Check availability
55	48600141 Rubber cap 35x10 NBR80	Rubber cap 35x10 NBR80	2	—	Check availability
97	48601166S1 Fork Fluid Viscosity 4.0 5L	Fork Fluid Viscosity 4.0 5L	1	—	Check availability
98	T511 SILICONE GREASE F. DUST STRI	SILICONE GREASE F. DUST STRI	1	—	Check availability	View Details
99	R14053 Fork service kit 48mm	Fork service kit 48mm	1	—	Check availability
42	48600577 Spring guide ring 27,08x32x9,5	Spring guide ring 27,08x32x9,5	2	—	Check availability
43	48600520 Spring support ring 27,08x42x4	Spring support ring 27,08x42x4	2	—	Check availability
44	48600744 Guiding ring 39x44x8	Guiding ring 39x44x8	2	—	Check availability
45	48600456 Washer 35x43x2,5 plastic	Washer 35x43x2,5 plastic	2	—	Check availability
46	91410030S SPRING 5,0 N/MM	SPRING 5,0 N/MM	2	—	Check availability
47	R14047 Guide bushing set fork 48mm	Guide bushing set fork 48mm	1	—	Check availability	View Details
30	48600519E4 MEMBRANE HOLDER INKL. PIPE	MEMBRANE HOLDER INKL. PIPE	2	—	Check availability
31	48600512 Round-wire snap ring 28,5x1,5	Round-wire snap ring 28,5x1,5	2	—	Check availability
32	48601056 Spring retainer 13,5x21,9x2,65	Spring retainer 13,5x21,9x2,65	3	—	Check availability
33	48600829 Seal ring Freudenberg 12mm 85S	Seal ring Freudenberg 12mm 85S	2	—	Check availability
