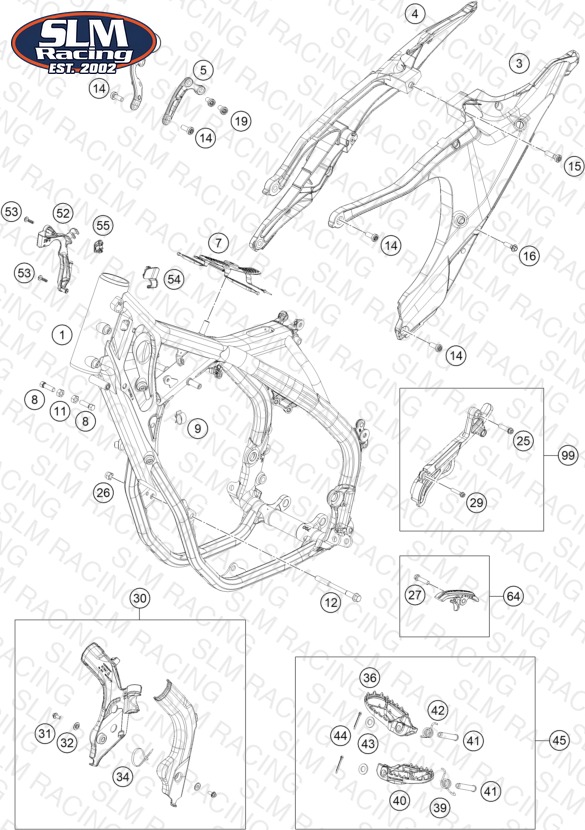

FRAME
Parts (37)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 2660310110069 Frame 266T1 | Frame 266T1 | 1 | $2778.59 | Out of Stock | Notify Me |
| 3 | 2510300211033A Subframe left | Subframe left | 1 | $313.93 | Available | 1 |
| 4 | 2510300212033A Subframe right | Subframe right | 1 | $335.60 | Available | 1 |
| 5 | 7970311300001S Engine brace left | Engine brace left | 1 | $60.71 | Available | 1 |
| 6 | 7970311400001S Engine brace right | Engine brace right | 1 | $66.76 | Available | 1 |
| 7 | 79607012000 TANK REST RUBBER | TANK REST RUBBER | 1 | $11.87 | Available | 1 |
| 8 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 2 | $3.99 | Available | 2 |
| 9 | 58111076000 CABLE SUPPORT KHS NR.150-47610 | CABLE SUPPORT KHS NR.150-47610 | 1 | $4.99 | Available | 1 |
| 11 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 2 | $2.99 | Available | 2 |
| 12 | 59003013000 Enginebrac. screw M10X123 WS=1 | Enginebrac. screw M10X123 WS=1 | 2 | $11.10 | Available | 2 |
| 14 | 0035080206S SHCS M8x20 TX45 | SHCS M8x20 TX45 | 6 | $6.26 | Available | 6 |
| 15 | 0035080306S AH collar screw M8x30 ISA45 | AH collar screw M8x30 ISA45 | 2 | $3.99 | Available | 2 |
| 16 | 0016070253 PLASTIC SCREW K7X25 PT1447 | PLASTIC SCREW K7X25 PT1447 | 2 | $3.99 | Available | 2 |
| 19 | 0035080156S AH-COLLAR SCREW M8X15 TORX45 | AH-COLLAR SCREW M8X15 TORX45 | 4 | $2.99 | Available | 4 |
| 25 | 0025080356 HH collar screw M8x35 TX40 | HH collar screw M8x35 TX40 | 1 | $4.83 | Available | 1 |
| 26 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | $2.99 | Available | 2 |
| 27 | 0025080306 HH collar screw M8x30 | HH collar screw M8x30 | 1 | $3.62 | Available | 1 |
| 29 | 0025060356 HH collar screw M6x35 TX30 | HH collar screw M6x35 TX30 | 1 | $3.99 | Available | 1 |
| 30 | 2510309400030 Frame protection set | Frame protection set | 1 | $30.90 | Available | 1 |
| 31 | 0014050123 HH COLLAR SCREW M 5X12 WS=6 | HH COLLAR SCREW M 5X12 WS=6 | 2 | $2.99 | Available | 2 |
| 32 | 54803092060 Bush f. frame protection 03 | Bush f. frame protection 03 | 2 | $4.99 | Available | 2 |
| 34 | 44011076140 CABLE TIE 140/2,5MM BLACK | CABLE TIE 140/2,5MM BLACK | — | $1.99 | Available | 1 |
| 34 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | — | $2.99 | Available | 1 |
| 36 | 79603041100 Foot grid right EXC 2017 | Foot grid right EXC 2017 | 1 | $52.68 | Available | 1 |
| 39 | 79003044000 FOOTREST SPRING R/S 2016 | FOOTREST SPRING R/S 2016 | 1 | $2.99 | Available | 1 |
| 40 | 79603040100 Foot grid left EXC 2017 | Foot grid left EXC 2017 | 1 | $52.68 | Available | 1 |
| 41 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | $14.62 | Available | 2 |
| 42 | 79003045000 FOOTREST SPRING L/S 2016 | FOOTREST SPRING L/S 2016 | 1 | $2.99 | Available | 1 |
| 43 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 44 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | $1.99 | Available | 2 |
| 45 | 79603040133 Footrest-Set | Footrest-Set | 1 | $132.98 | Available | 1 |
| 52 | 79711013000 Cable holder throttle cable gu | Cable holder throttle cable gu | 1 | $11.87 | Available | 1 |
| 53 | 0081050181 SCREW FOR PLASTIC K50X18 T20 | SCREW FOR PLASTIC K50X18 T20 | 2 | $2.99 | Available | 2 |
| 54 | 79111014010 Cable holder | Cable holder | 1 | $2.99 | Available | 1 |
| 55 | 79111013010 Cover control head sheet | Cover control head sheet | 1 | $2.99 | Available | 1 |
| 64 | 79003053010 CHAIN SLIDING KIT BELOW CPL.16 | CHAIN SLIDING KIT BELOW CPL.16 | 1 | $21.00 | Available | 1 |
| 99 | 79403096010 SPROCKET COVER KIT | SPROCKET COVER KIT | — | $29.69 | Available | 1 |
