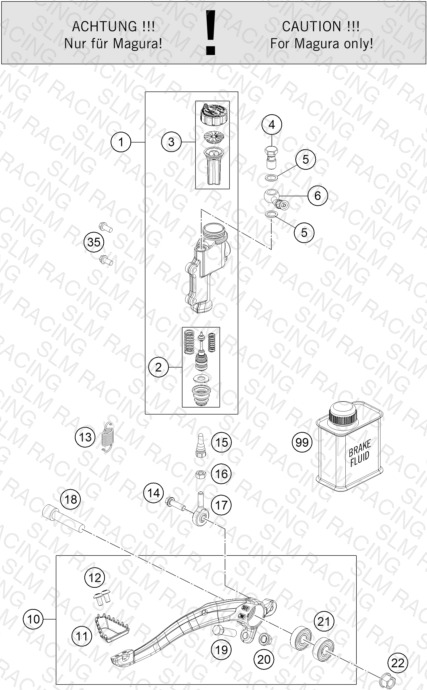

REAR BRAKE CONTROL
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 24013060044 Foot brake cylinder cpl. | Foot brake cylinder cpl. | 1 | — | Check availability | |
| 2 | 24013061000 Piston kit | Piston kit | 1 | — | Check availability | |
| 3 | 24013062000 Cover brake cylinder cpl. | Cover brake cylinder cpl. | 1 | — | Check availability | |
| 4 | 24013013000 Banjo bolt | Banjo bolt | 1 | — | Check availability | |
| 5 | 59413013050 COPPER GASKET | COPPER GASKET | 2 | — | Check availability | |
| 6 | 25013072000 brake hose rear | brake hose rear | 1 | — | Check availability | |
| 10 | 55413050044 FOOT BRAKE LEVER CPL. | FOOT BRAKE LEVER CPL. | 1 | — | Check availability | |
| 11 | 55413051000 STEP PLATE FOOT BRAKE LEVER | STEP PLATE FOOT BRAKE LEVER | 1 | — | Check availability | |
| 12 | 78105081010 SCREW TORX M5X10 | SCREW TORX M5X10 | 2 | — | Check availability | |
| 13 | 79003062000 RETURN SPRING F. BRAKE LEVER | RETURN SPRING F. BRAKE LEVER | 1 | — | Check availability | |
| 14 | 0025060206S HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 1 | — | Check availability | |
| 15 | 54813056000 PUSH ROD L=28MM 03 | PUSH ROD L=28MM 03 | 1 | — | Check availability | |
| 16 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 1 | — | Check availability | |
| 17 | 54813055000 SWIVEL HEAD KA6 03 | SWIVEL HEAD KA6 03 | 1 | — | Check availability | View Details |
| 18 | 0032100356S AH-COLLAR SCREW M10X35 ISA45 | AH-COLLAR SCREW M10X35 ISA45 | 1 | — | Check availability | |
| 19 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 1 | — | Check availability | |
| 20 | 46030045000 flanged nut M8 WS10 | flanged nut M8 WS10 | 1 | — | Check availability | |
| 21 | 0625060002 deep groove ball bearing SKF 6 | deep groove ball bearing SKF 6 | 2 | — | Check availability | |
| 22 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 1 | — | Check availability | View Details |
| 35 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 2 | — | Check availability | |
| 99 | 00062030000 Brake fluid DOT5.1 0,25L | Brake fluid DOT5.1 0,25L | 1 | — | Check availability |
