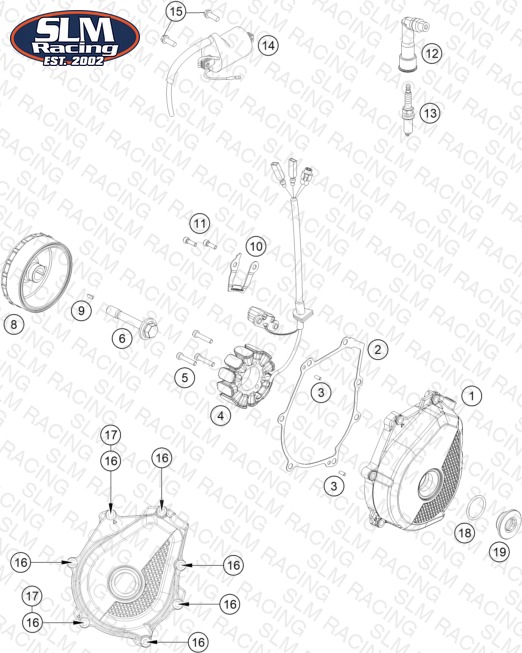

IGNITION SYSTEM
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A48030502000C1 Ignition cover | Ignition cover | 1 | $110.54 | Available | 1 |
| 2 | A48030040000 Ignition cover gasket | Ignition cover gasket | 1 | $9.45 | Backorder — Restocking | 1 |
| 3 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 2 | $3.99 | Available | 2 |
| 4 | 79239104100 Stator | Stator | 1 | $266.74 | Backorder — Restocking | 1 |
| 5 | 0012050303S Cap head screw DIN 6912 - M5x3 | Cap head screw DIN 6912 - M5x3 | 3 | $1.99 | Available | 3 |
| 6 | 77339010100 FLYWHEEL SCREW | FLYWHEEL SCREW | 1 | $6.59 | Available | 1 |
| 8 | 78039205100 Rotor | Rotor | 1 | $186.33 | Available | 1 |
| 9 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 | WOODRUFF KEY DIN6888-3X3,7 | 1 | $2.99 | Available | 1 |
| 10 | A46030502050 Cable retainer | Cable retainer | 1 | $4.99 | Available | 1 |
| 11 | 0912050163S Cap head screw DIN912 - M5x16 | Cap head screw DIN912 - M5x16 | 2 | $1.99 | Available | 2 |
| 12 | 79539090000 Spark plug connector | Spark plug connector | 1 | $60.27 | Backorder — Restocking | 1 |
| 13 | 79739093000 Spark plug | Spark plug | 1 | $42.56 | Available | 1 |
| 14 | 58439006000 Ignition coil | Ignition coil | 1 | $88.76 | Backorder — Restocking | 1 |
| 15 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 2 | $3.99 | Available | 2 |
| 16 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 7 | $3.99 | Available | 7 |
| 17 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 2 | $2.99 | Available | 2 |
| 18 | 07700240251 o-ring 24.00x2.50 Viton | o-ring 24.00x2.50 Viton | 1 | $3.99 | Available | 1 |
| 19 | 7723000216030 SCREW PLUG M24X1,5 | SCREW PLUG M24X1,5 | 1 | $43.11 | Available | 1 |
